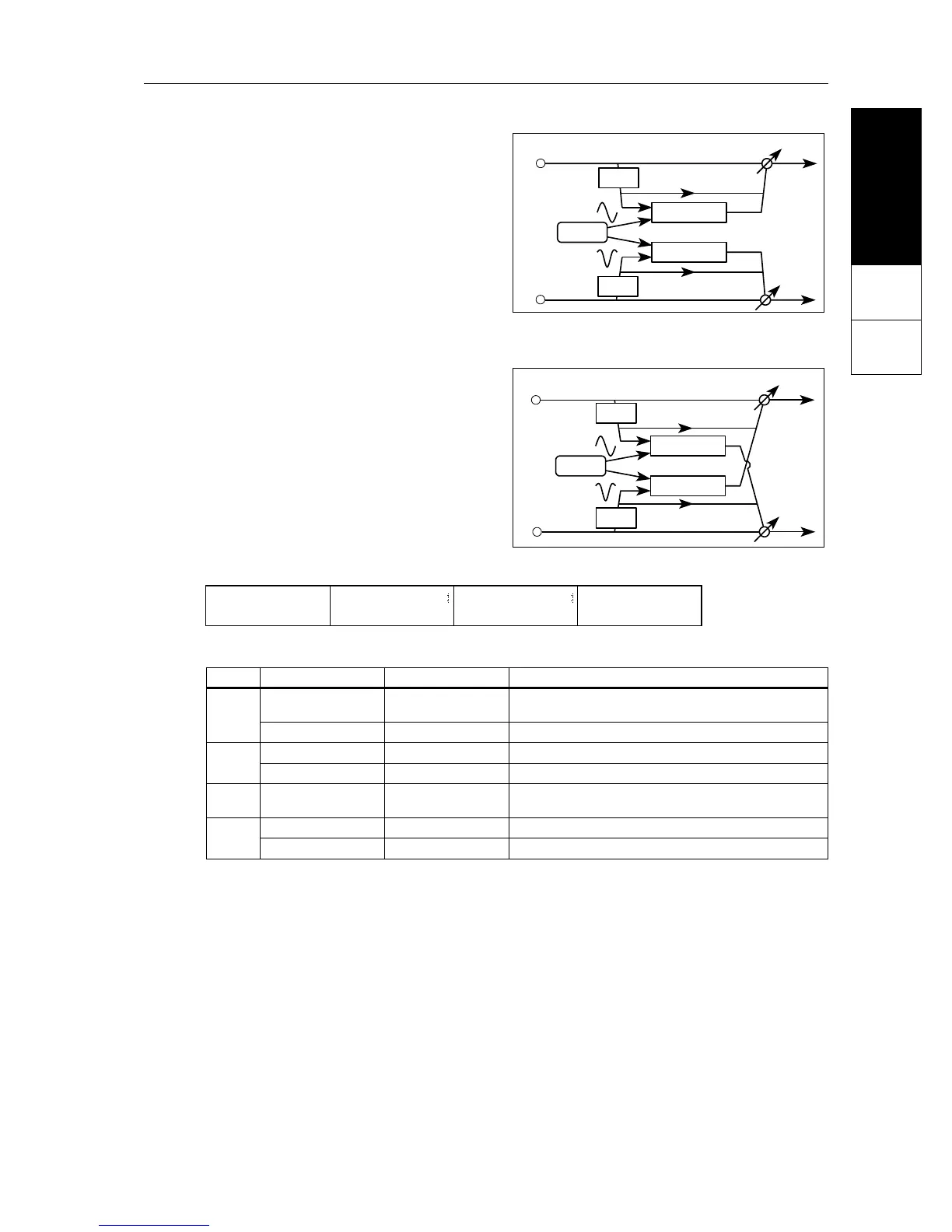

Korg X5DR AI2 SYNTHESIS MODULE User Manual

Reference Guide
127
Reference Guide
Effect
Parameters
4
21: Quadrature Chorus
22: Crossover Chorus
For effects 21 and 22, dynamic modulation (16C) can be used to control the Mod Speed.
LCD Parameter Range Description
17A
Delay Time L
(D.TimeL)
0–250 ms Left channel delay time
Delay Time R (R) 0–250 ms Right channel delay time
17B
Mod Depth (Mod) 0–99 Modulation depth
Mod Speed (ModSP) 1–99 Modulation speed
17C
Mod Shape
(ModShape)
T+10…T–10,
S–10…S+10
Modulation waveform shape. T–Triangle, S–Sine. The range
from +10 to –10 effects the waveform symmetry
17D
EQ Low (EQ.L) –12…+12 dB Low EQ cut and boost
EQ High (H) –12…+12 dB High EQ cut and boost
The modulation signals fed to each channel
of this stereo chorus effect are 90 degrees out
of phase with each other.
Left
Chorus L
Right
Mix
Mix
Chorus R
Mod
EQ
EQ
The modulation signals fed to each channel
of this stereo chorus effect are 90 degrees out
of phase with each other. The chorused
signals are mixed with the other channels
output.
Left
Chorus L
Right
Mix
Mix
Chorus R
Mod
EQ
EQ
17A Quad.ChoXXXø
D.Time L011 R023
17A
17B 17C
17D Quad.ChoXXX
EQ.L+00dB H+00dB
17D
17C Quad.ChoXXXø
ModShape=T+00
17B Quad.ChoXXXø
Mod50 ModSP=33
ø
