Start-up Guide
16
Playing the X5DR in Multi Mode (Playing Back GM Scores)

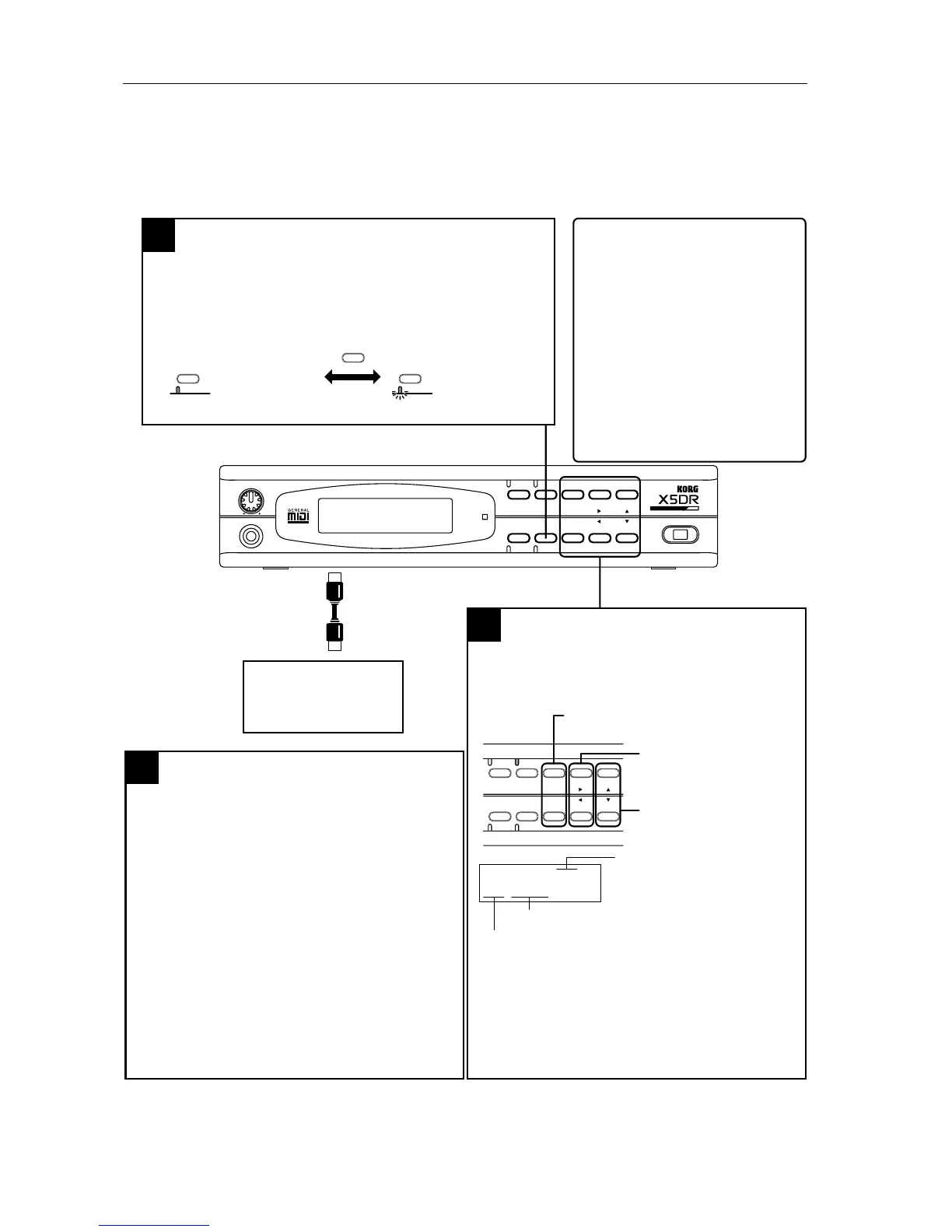

Multi mode allows you to use the X5DR as a 16-channel multi-timbre (GM) tone generator,
controlled from the connected computer, to play ensemble music consisting of multiple
instrument parts. This section explains playing the X5DR in Multi mode.
VOLUME
100
PHONES
MIDI
EDIT GLOBAL
MULTI
PAGE-
+10 +1
COMBI PROG BANK
PAGE+
-10 -1
POWER
Multi mode
1
Changing Track Programs (1)
2
Use the [PAGE+], [PAGE–], [¤], [ˆ], [▲], [▼]
buttons to change a Program for each track.
MIDI OUT
Computer/
Sequencer
MIDI IN
EDIT GLOBAL
MULTI
PAGE-
+10 +1
COMBI PROG BANK
PAGE+
-10 -1
Use [PAGE+] and [PAGE–] buttons to select
a track.
Use the [¤] and [ˆ] buttons to
select a parameter.
Use the [▲] and [▼] buttons to
change the Track Program
setting.
Changing Track Programs (2)
3
GLOBAL
MULTI
● Multi mode:
The indicator lights up.
GLOBAL
MULTI
● Global mode:
Indicator flashes.
■ What is Multi mode?
00A MULTI T01 ø
G01:Piano
Track number (T01–T16)
Track Program name
Track Program (A00–99, G01–136)
Multi mode allows you to use the X5DR as
a 16-channel multi-timbre (GM) tone
generator. You can play different
Programs assigned to 16 tracks. When
you turn on the power to the X5DR, Multi
mode uses a default GM setting, which
allows you to play back a GM score (GM
performance data) right away. If you wish
to restore the GM default setting, send the
GM System On message or set 23A SET
TO GM accordingly.
* If the GM score is not played back
correctly, refer to “Notes on playing back
GM scores” on Page 18.
GLOBAL
MULTI
When you wish to change Programs from a
connected computer or sequencer, you need to
send Program Change messages. (See the page
17, 66, 68.)
While Bank A is selected:
Sending Program Change messages 0–99 will select
Programs A00–99.
While Bank G is selected:
Sending Program Change messages 0–127 will select
Programs G01–128.
* To select Programs G129–136, send Bank Select
messages to change the Bank.
* Send the Bank Select messages to change the
Banks between A and G.
Press the [MULTI] button to enter Multi mode.
* The [MULTI] button allows you to switch between Global mode and Multi
mode. When the X5DR is in Global mode (the indicator flashes), press the
[MULTI] button again to enter Multi mode (the indicator lights up).
The X5DR has 100 Programs in Bank A (A00–99),
and 136 Programs in Bank G (G01–136), for a total
236 Programs.
* When the X5DR is shipped from the factory,
Bank A has Preset a Programs. (See page 20,
156.)
