Start-up Guide
9
Using a
Computer/
Sequencer
Start-up Guide
Using a Computer/Sequencer

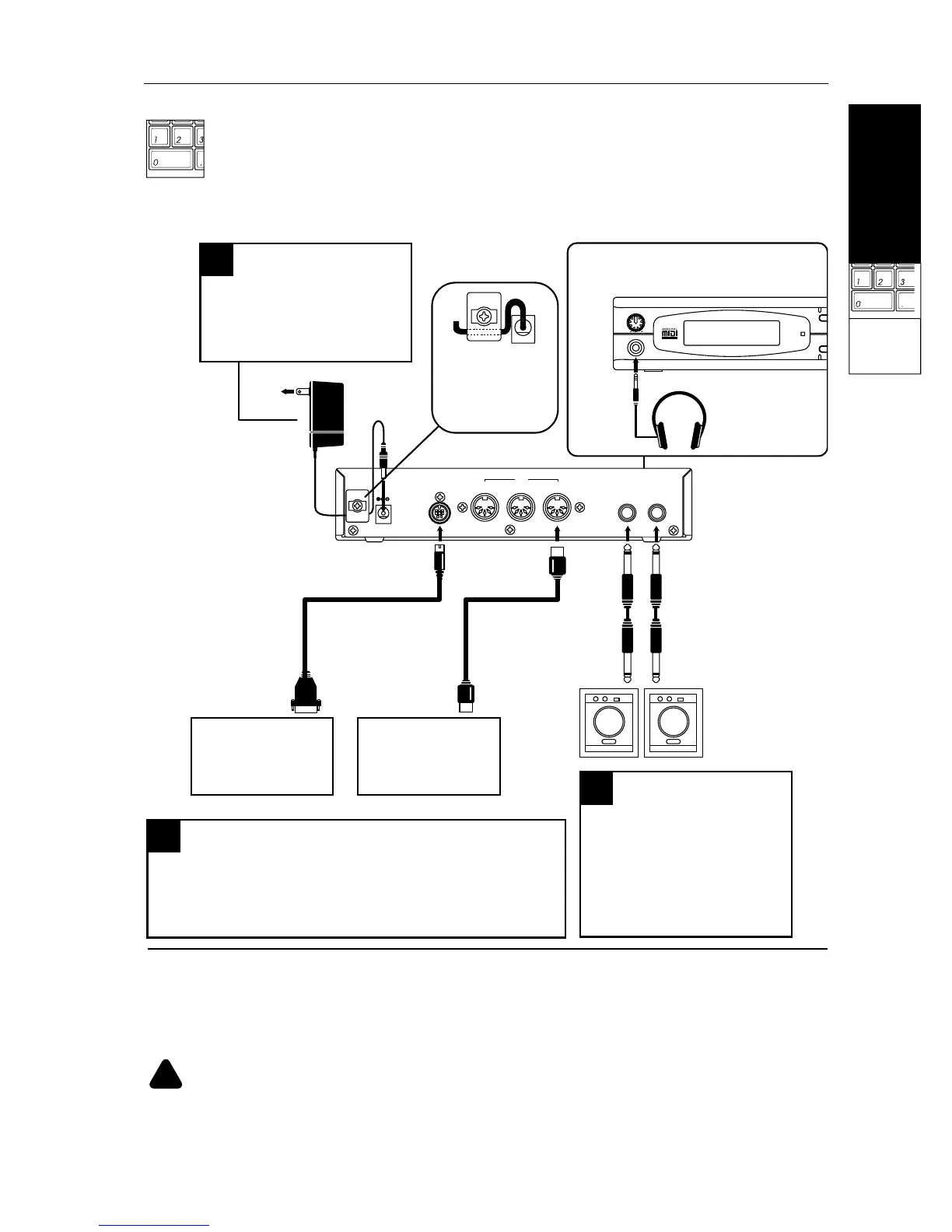

Connections
DC IN 12V
700mA
TO HOST THRU OUT
MIDI
IN
R L/MONO
OUTPUT
To the power outlet
DC IN
AC Adapter
Powered monitor
(such as the PM-15)
R
L/MONO
MIDI OUT
MIDI cable
Connecting the power
1
Connect the AC adapter plug
to the DC IN connector on the
rear panel, and plug the AC
adapter into an AC outlet.
VOLUME
100
PHONES
MIDI
EDI
COM
Headphones
PHONES
Connecting the monitor
2
Connect the OUTPUT jacks @
to the powered monitor or
stereo amplifier.
* Use the L/MONO jack for
monaural connection.
Connecting the computer/sequencer
3
There are two methods to connect your computer or
sequencer to the X5DR: “Connection via MIDI” and
“Computer interface cable.” Refer to page 10–13 for details.
Powered monitor/stereo amplifier
In order to play back the X5DR’s high-fidelity sound, we recommend that you connect the X5DR to
powered monitors (speakers with built-in amplifiers, such as the optional PM-15). If you are going to
connect an audio stereo amplifier or other device (such as a stereo radio or a cassette tape recorder),
use the connector labeled “LINE IN” or “AUX IN” on those devices.
!
To use the headphones, plug the
headphone cable into the PHONES jack
on the front panel.
Computer/
Sequencer
Computer
IBM PC compatible
Apple Macintosh
Computer interface cable
If you connect the X5DR to a domestic hi-fi system, be careful not to raise the volume level too
high or you may damage the speakers.
Secure the AC adapter
cable by hooking it as
shown in the illustration
to prevent the adapter
plug from being
accidentally removed.
or
To Next Page
