Korg X5DR AI2 SYNTHESIS MODULE User Manual

Start-up Guide
14
Settings Required When a Computer is Connected
If you have connected the X5DR to the computer using a computer interface cable, set the
Computer Select (data transfer rate from/to the computer) and External Out Select (data
transmission destination from the X5DR).
Setting Computer Select (0D PCI/F CLK in Global Mode)
1 Press the [GLOBAL] button to enter Global mode.
2 Select 0A MASTER TUNE (by pressing the [PAGE–] button).
3 Press the [
® ] button four times to display 0D PC I/F CLK.
4 Use the [ ▲
] and [ ▼ ] buttons to set the value.
If you connect the X5DR to an IBM PC compatible computer, set this parameter to 38.4kBPS. If
you connect the X5DR to an Apple Macintosh computer, select 31.25kBPS.
Setting External Out Select (2B EXT OUT SEL in Global Mode)
1 Press the [GLOBAL] button to enter Global mode.
The [GLOBAL] button allows you to switch between Global mode and Multi mode. When the
X5DR is in Multi mode (the indicator lights up), press the [GLOBAL] button again to enter Global
mode (the indicator flashes).
2 Press the [PAGE+] or [PAGE–] button to select 2A MIDI GLOBAL.
3 Press the [
® ] button twice to display 2B EXT OUT SEL.
4 Use the [ ▲
] and [ ▼ ] buttons to assign the function.
Select “MIDI” to transmit the X5DR data from MIDI OUT, and select “PCIF” to transmit it from
TO HOST.

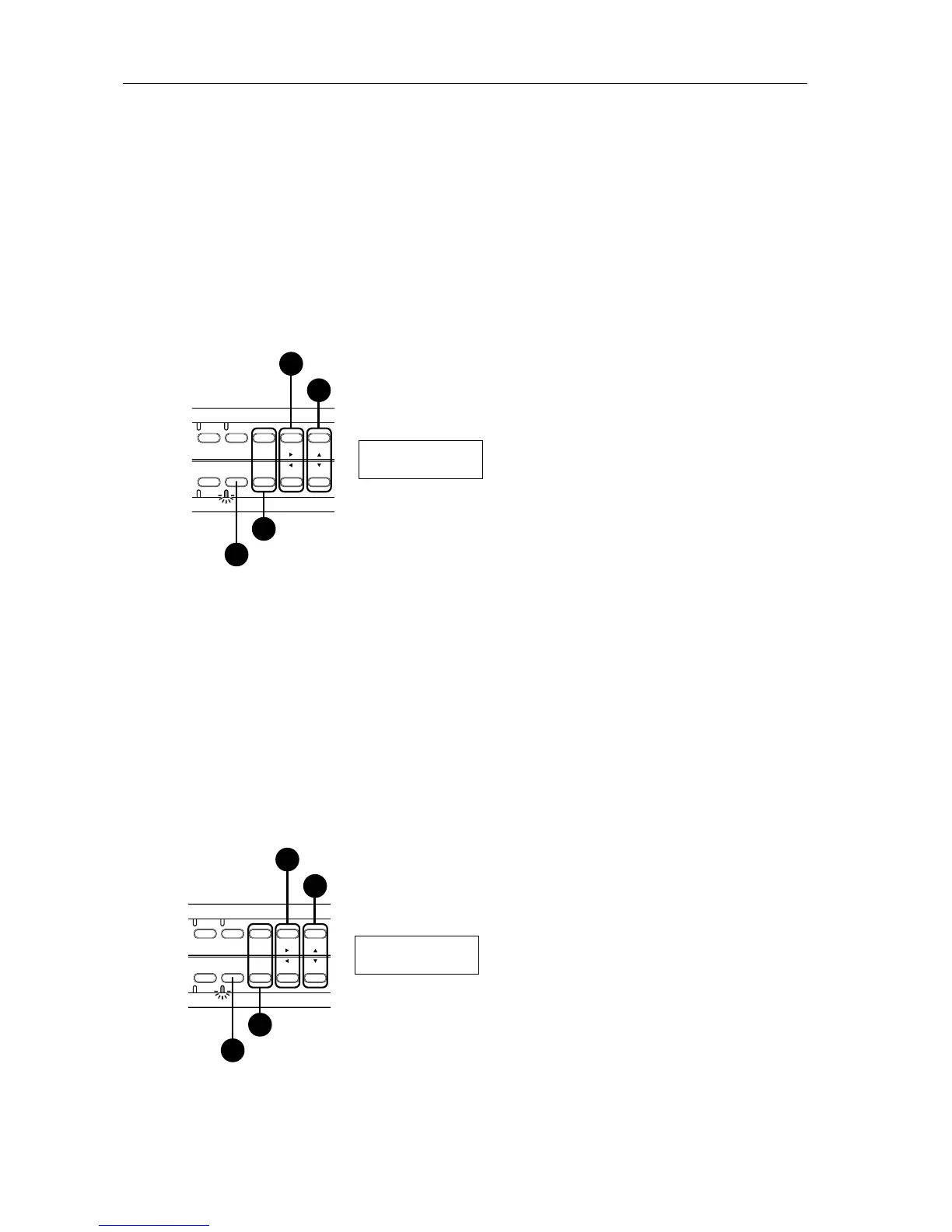

EDIT GLOBAL
MULTI
PAGE-
+10 +1
COMBI PROG BANK
PAGE+
-10 -1
Press the [GLOBAL] button to enter Global mode.
00D PC I/F CLK
38.4 kBPS
2
1
Press the [PAGE+] or [PAGE–] button.
4
Select 31.25kBPS or 38.4kBPS.
Press the [¤] button four times.
3
EDIT GLOBAL
MULTI
PAGE-
+10 +1
COMBI PROG BANK
PAGE+
-10 -1
Press the [GLOBAL] button to enter Global mode.
02B EXT OUT SEL
PCIF
2
1
Press the [PAGE+] or [PAGE–] button.
4
Select MIDI or PCIF.
Press the [¤] button twice.
3
