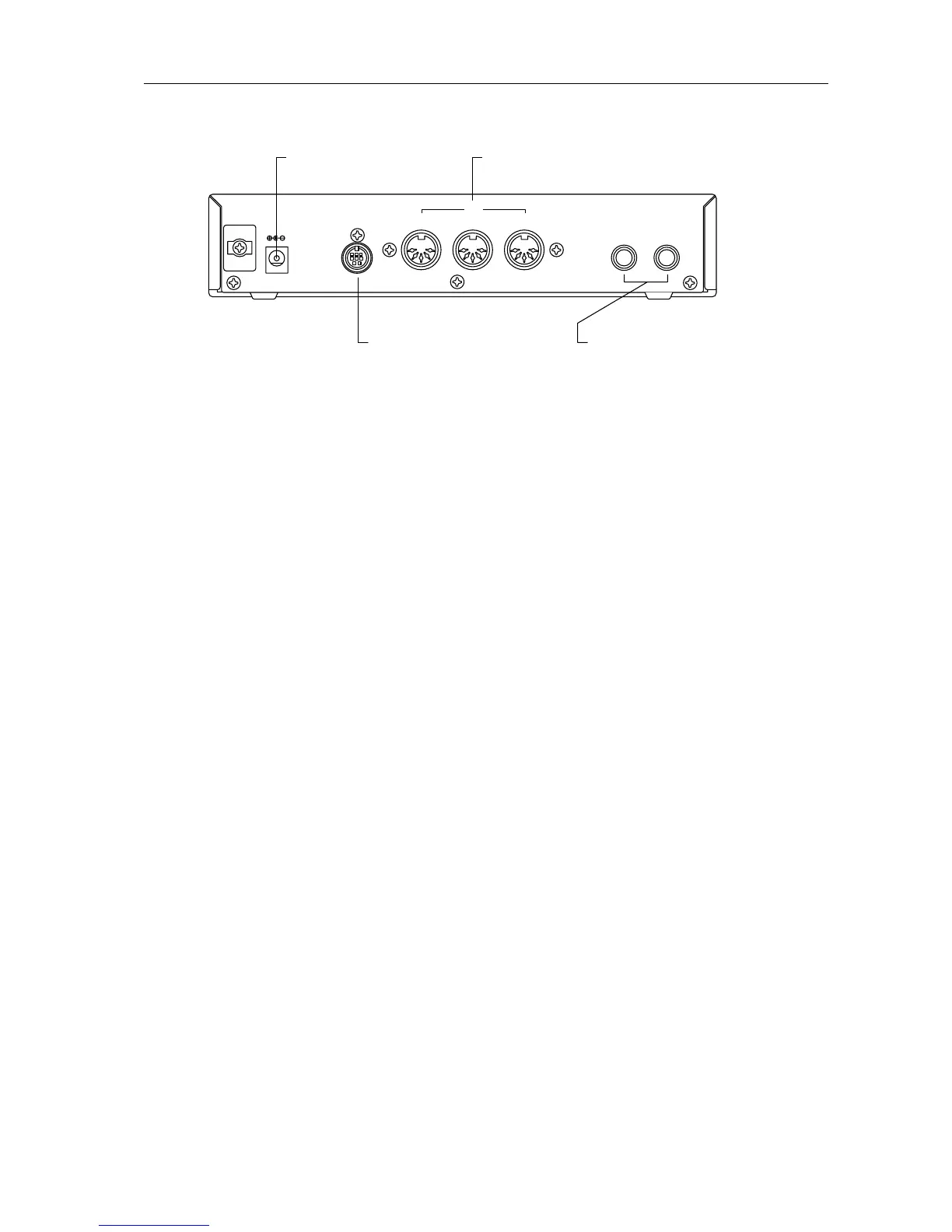

Rear Panel
v
Rear Panel
1 DC IN
Connect the AC adapter here.
2 MIDI (IN, OUT, THRU)
These connections are used to connect external MIDI instruments. MIDI IN receives MIDI data
from an external MIDI instrument. MIDI OUT outputs MIDI data from the X5DR to a connected
MIDI instrument. MIDI THRU outputs MIDI data received at the MIDI IN connection.
3 OUTPUT (L/MONO, R)
These 1/4 inch phone jack connections should be connected to the inputs of a powered monitor,
stereo amplifier, mixer, or multi-track tape recorder. Use the L/MONO connection for mono
playback.
4 TO HOST
This connection is used to connect a computer to the X5DR via an optional cable
(AG-001/002/003). This enables you to play the X5DR via a connected computer.
Note:
Do not use adapters other than the AC adapter that comes with the X5DR! Otherwise, a
malfunction may occur.
DC IN 12V
700mA
TO HOST THRU OUT
MIDI
IN
R L/MONO
OUTPUT
1 DC IN 2 MIDI (IN, OUT, THRU)
3 OUTPUT (L/MONO, R) 4 TO HOST
