Korg X5DR AI2 SYNTHESIS MODULE User Manual

Reference Guide
123
Reference Guide
Effect
Parameters
4

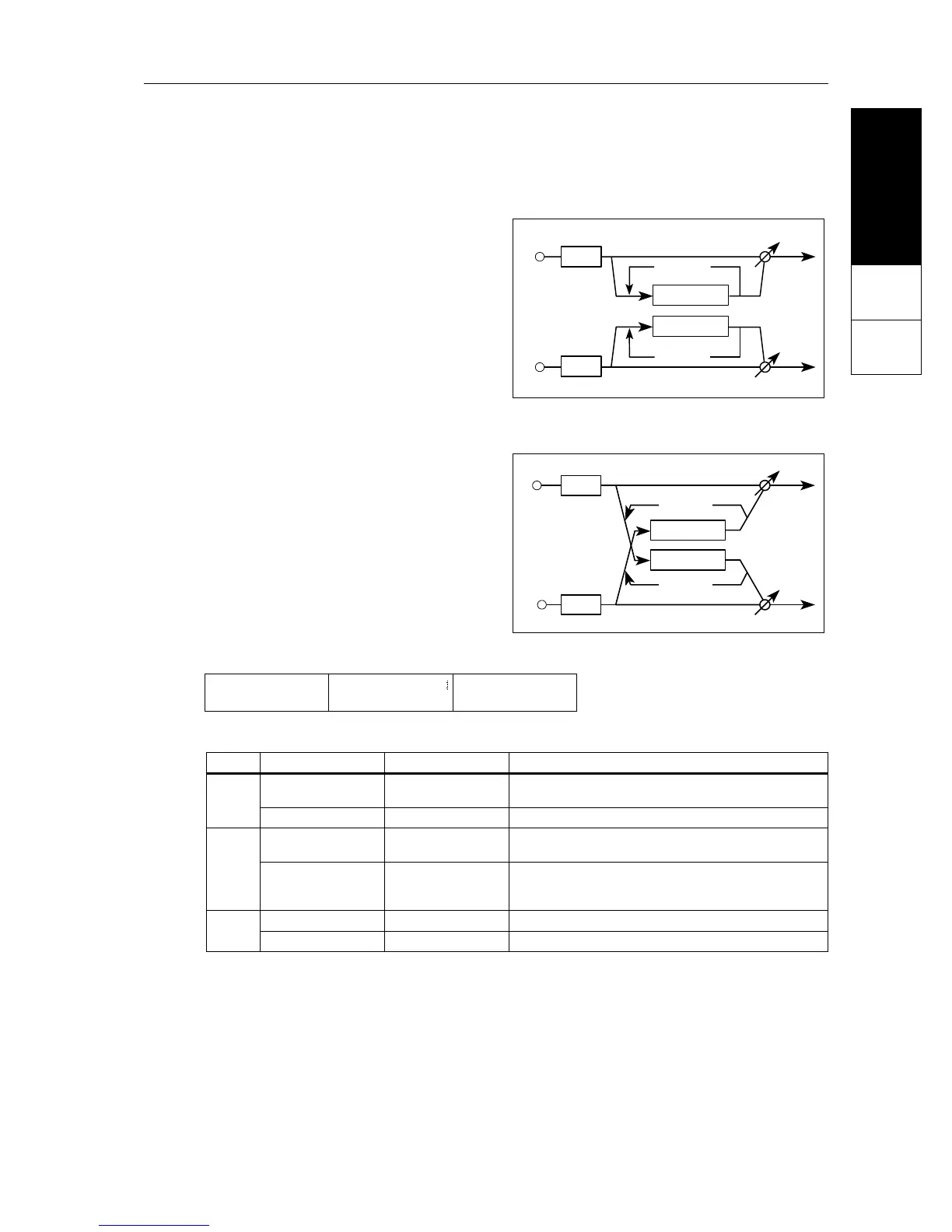

Stereo Delay
These effects create stereo delay patterns in which you can set the left and right delay times
independently. Using the High Damp parameter, you can make delays decay in a natural way.
13: Stereo Delay
14: Cross Delay
For effects 13 and 14, dynamic modulation (16C) can be used to control the DRY:EFF balance.
The EQ part of these effects is active even when the Effect is switched off (16A). To bypass these
effects completely, select 0:No Effect.
LCD Parameter Range Description
17A
Delay Time Left
(D.Time L)
0–500 ms Delay time for the left channel
Delay Time Right (R) 0–500 ms Delay time for the right channel
17B
Feedback (FB) –99…+99%
The amount of delay signal that is fed back into the effect.
Minus values invert the feedback signal phase
High Damp (H.Dmp) 0–99%
High frequency decay
0 = bright delay
99 = dark delay
17C
EQ Low (EQ.L) –12…+12 dB Low EQ cut and boost
EQ High (H) –12…+12 dB High EQ cut and boost
This is a stereo delay effect with feedback.
The delay time can be set independently for
the left and right channels.
The high damp parameter can be used to
produce a more natural echo effect by
gradually attenuating the high frequencies of
successive delay repeats.
Left
Right
Mix
Mix
Delay L
Delay R
EQ
Feedback
Feedback
EQ
This is a stereo delay effect with independent
delay parameters for the left and right
channels. The delay outputs are crossed over,
and each delay receives the other delay’s
feedback signal. Thus, the delay repeats
appear to move between the left and right
outputs.
Mix
Left
EQ
Delay L
Right
Mix
Delay R
EQ
Feedback
Feedback
17A StereoDly ø
D.TimeL=250 R260
17A
17B 17C
17C SterepDly
EQ.L+00dB H=00dB
ø
17B StereoDly ø
FB+40 H.Dmp30
