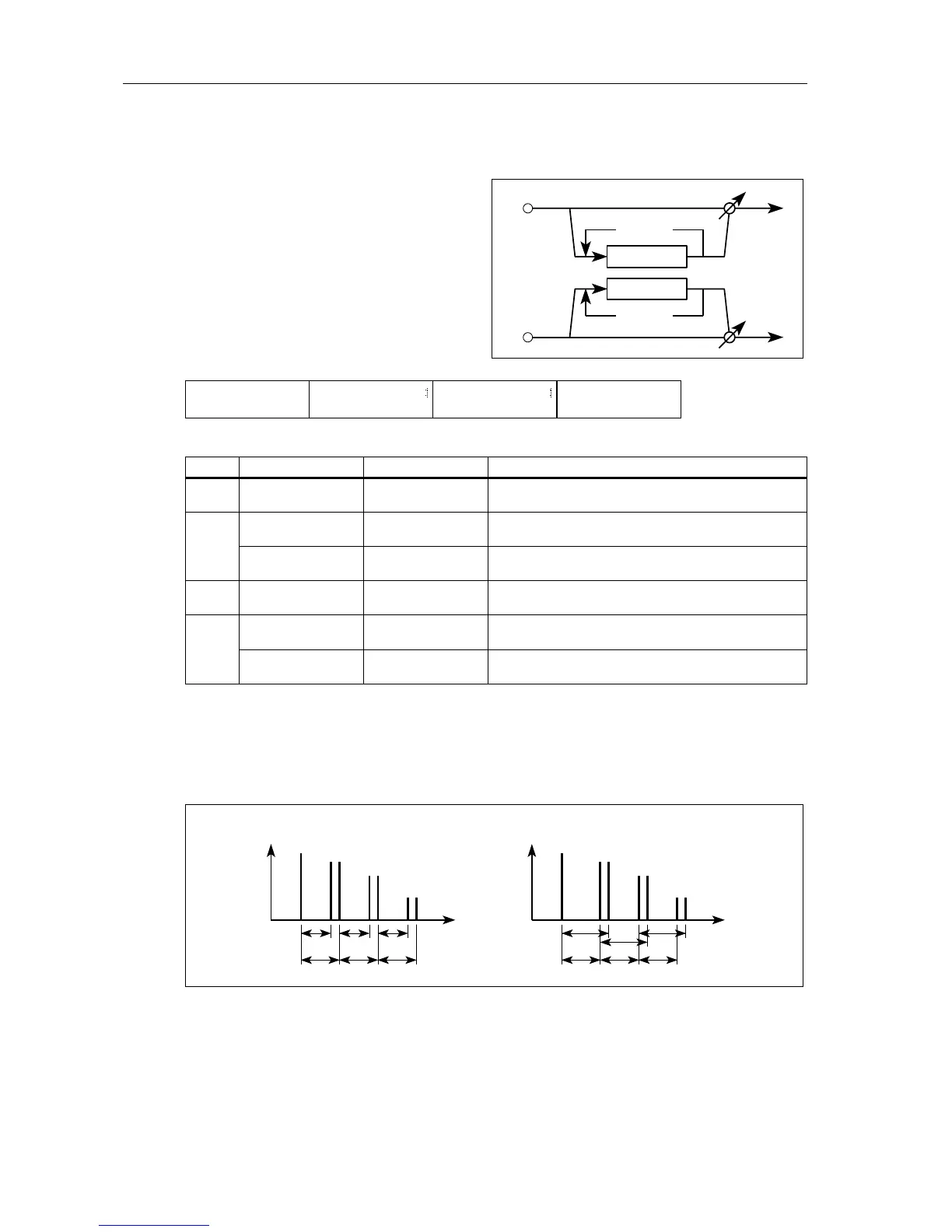

Dual Mono Delay
15: Dual Mono Delay
For effect 15, dynamic modulation (16C) can be used to control the DRY:EFF balance.
Multi-Tap Delay
In these effects, an equalizer is applied to each effect input, then the signals are fed to two
independent series-connected delays. The output of one delay is fed back to the input.
LCD Parameter Range Description
17A
Delay Time Left
(D.Time)
0–500 ms Delay time for the left channel
17B
Feedback Left (FB) –99…+99%
The amount of delay signal that is fed back into the left
channel effect. Minus values invert the feedback signal phase
High Damp Left
(H.Dmp)
0–99% High frequency damping for the left channel
17C
Delay Time Right
(D.Time)
0–500 ms Delay time for the right channel
17D
Feedback Right (FB) –99…+99%
The amount of delay signal that is fed back into the left
channel effect. Minus values invert the feedback signal phase
High Damp Right
(H.Dmp)
0–99% High frequency damping for the right channel
This effect consists of two mono delays with
independent delay time, feedback, and high
damp parameters for each channel.
Left
Delay L
Right
Mix
Mix
Delay R
Feedback
Feedback
17A D.M Dly(L) ø
D.Time=250ms
17A
17B 17C
17D D.M Dly(R)
FB+50 H.Dmp10
17D
17B D.M Dly(L) ø
FB+50 H.Dmp10
17C D.M Dly(R) ø
D.Time=250ms
ø
Level
Time
DT1 DT1 DT1
DT2 DT2 DT2
Dry
When DT1 is less than DT2
Level
Time
DT1
DT1
DT1
DT2 DT2 DT2
Dry
When DT1 is greater than DT2
