Effect
Parameters
4
16: Multi-Tap Delay 1
17: Multi-Tap Delay 2
18: Multi-Tap Delay 3
For effects 16, 17, and 18, dynamic modulation (16C) can be used to control the DRY:EFF
balance.
LCD Parameter Range Description
17A
Delay Time 1 (D1T) 0–500 ms Delay time for delay 1
Delay Time 2 (D2T) 0–500 ms Delay time for delay 2
17B Feedback (FB) –99…+99%
The amount of delay signal that is fed back into the effect.
Minus values invert the feedback signal phase
17C
EQ Low (EQ.L) –12…+12 dB Low EQ cut and boost
EQ High (H) –12…+12 dB High EQ cut and boost
Left
EQ
Delay 2
Right
Mix
Mix
Delay 1
Delay 1
Delay 2
EQ
Feedback
Feedback

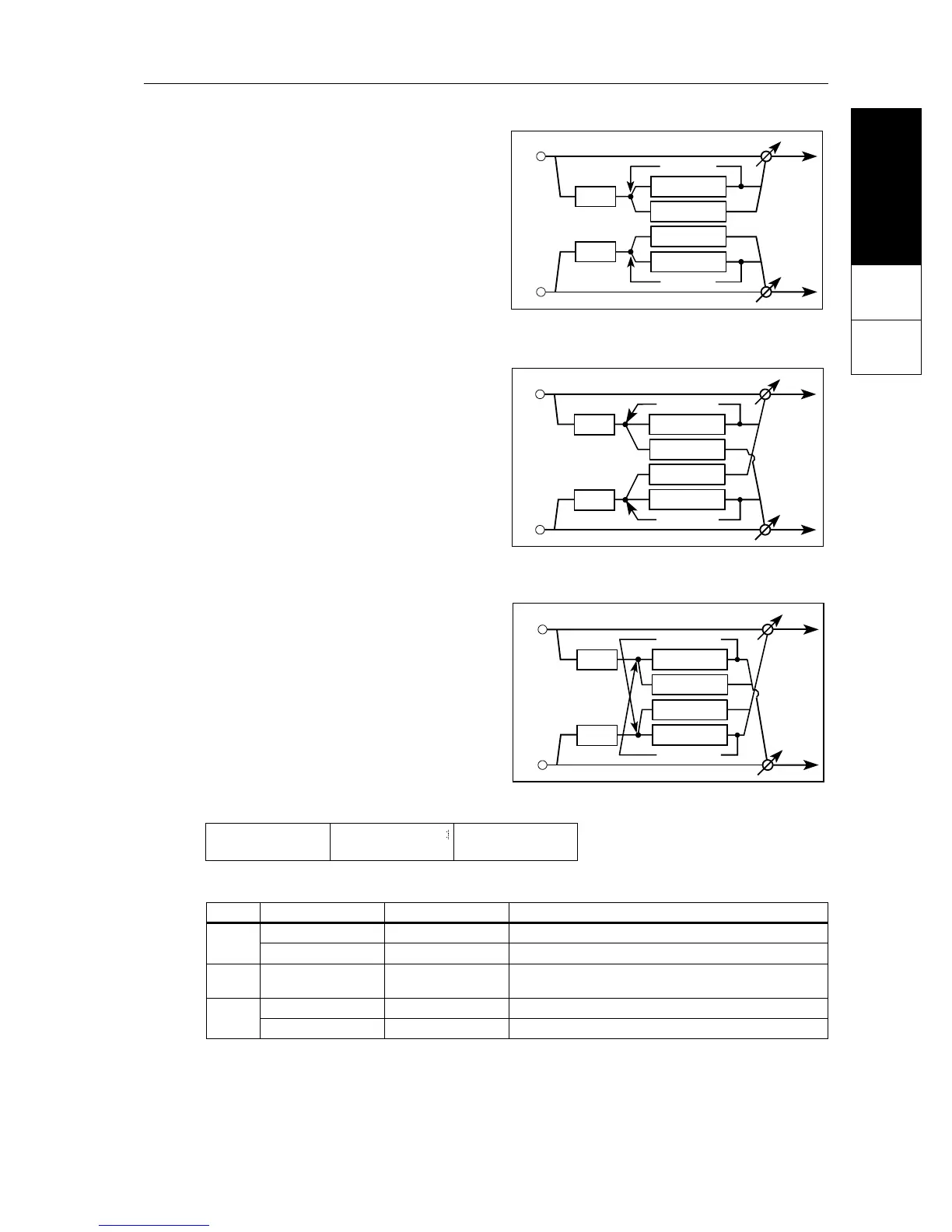

This is a two-channel multi-repeat delay. It
consists of two parallel delays for each
channel. The delay time for each delay can
be set independently. The output of delay 2 is
fed back to the inputs of delay 1 and delay 2.
This is a two-channel multi-repeat delay with
cross panning.
Right
Left
EQ
Delay 2
Mix
Mix
Delay 1
Delay 1
Delay 2
EQ
Feedback
Feedback
This is a two-channel multi-repeat delay with
crossed feedback.
Left
EQ
Delay 2
Right
Mix
Mix
Delay 1
Delay 1
Delay 2
EQ
Feedback
Feedback
17A M.TapDly1 ø
D1T300 D2T400
17A
17B 17C
17C M.TapDly1
EQ.L+00dB H+00dB
ø
17B M.TapDly1 ø
FB+50
