Korg X5DR AI2 SYNTHESIS MODULE User Manual

Reference Guide
135
Reference Guide
Effect
Parameters
4

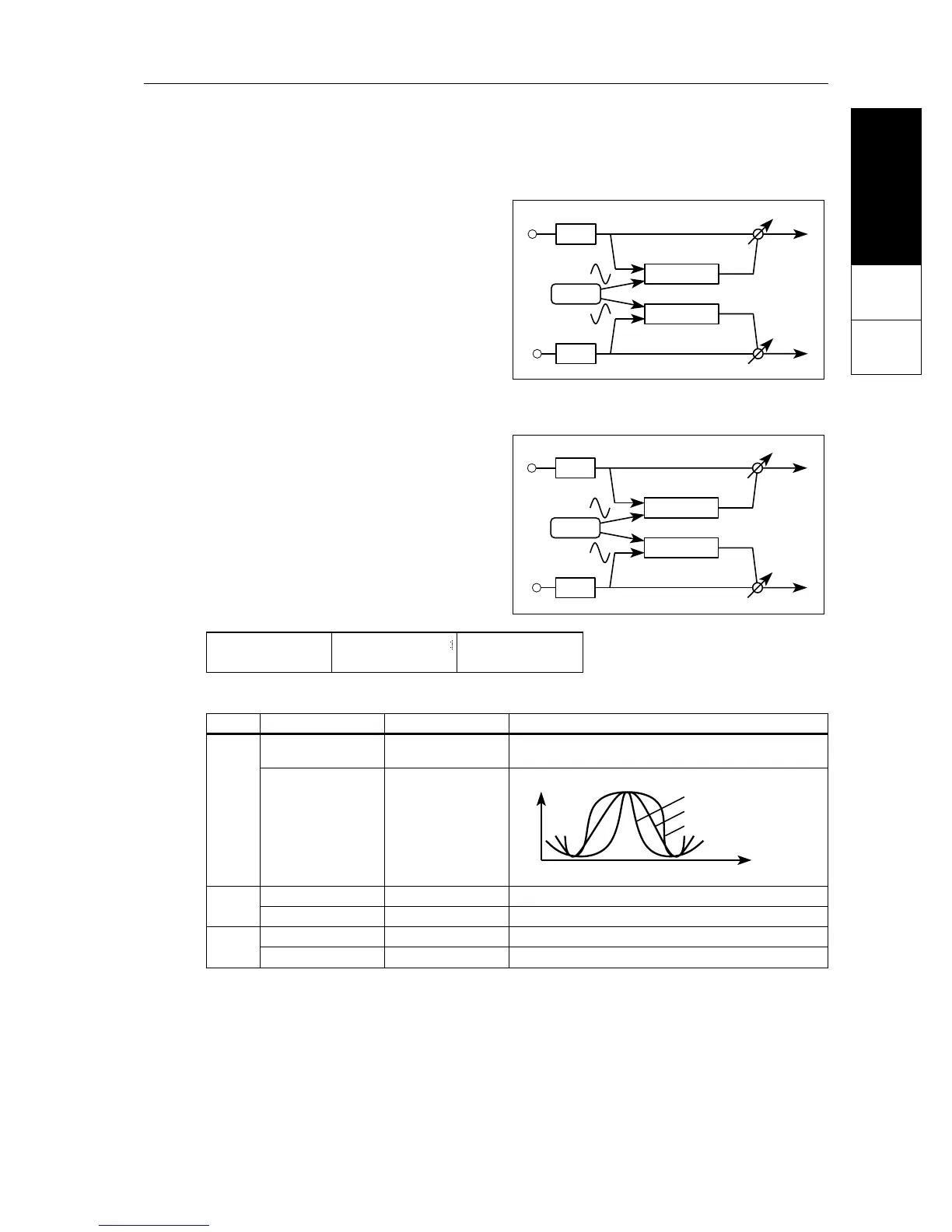

Tremolo
This effect cyclically varies the volume.
35: Auto Pan
36: Tremolo
For effects 35 and 36, dynamic modulation (16C) can be used to control the DRY:EFF balance.
The EQ sections of this effect are active even when the effect is switched OFF. To bypass this
effect completely, select 0:No Effect.
LCD Parameter Range Description
17A
Mod Waveform
Sine (SIN)
Triangle (TRI)
Modulation waveform
Mod Shape (Mod
Shape)
–99…+99
17B
Mod Depth (Mod) 0–99 Modulation depth
Mod Speed (M.SP) 0.03–30 Hz Modulation speed
17C
EQ Low (EQ.L) –12…+12 dB Low EQ cut and boost
EQ High (H) –12…+12 dB High EQ cut and boost
This effect pans the signal continuously
across the stereo image. The speed of
panning (Mod Speed) can be set relative to
song tempo, or left to produce a natural drift
across the stereo image.
Left
EQ
Auto Pan
Right
Mix
Mix
Auto Pan
EQ
Mod
The tremolo effect modulates the signal
amplitude to produce regular variations in
volume level.
Left
EQ
Tremolo
Right
Mix
Mix
Tremolo
EQ
Mod
17A Auto PanXXXø
SIN NodShape+99
17A
17B 17C
17B Auto PanXXXø
Mod80 M.SP1.59Hz
17C Auto PanXXX
EQ.L+00dB H+00dB
ø
Signal Level ModShape
ModShape =–99
ModShape =0
ModShape =+99
