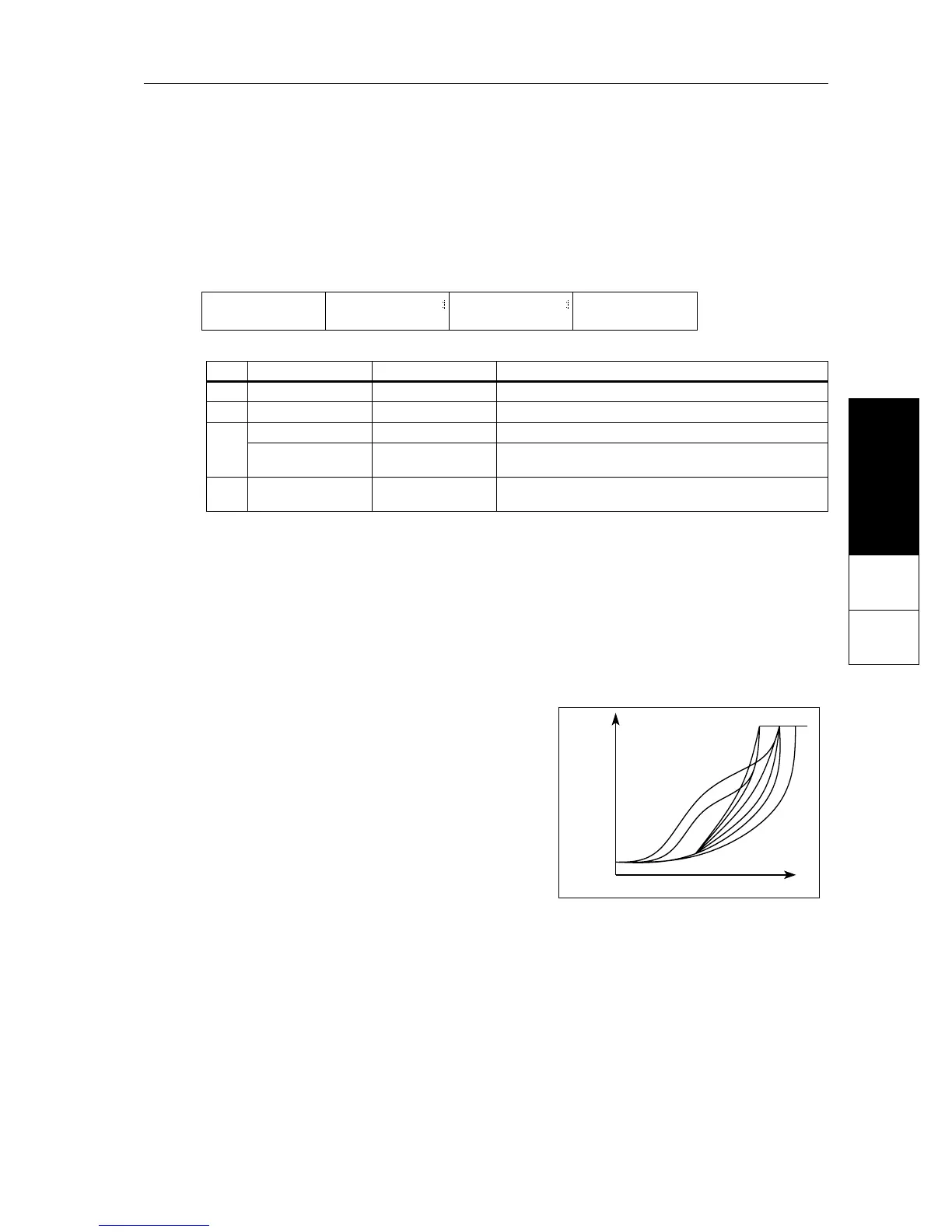

Korg X5DR AI2 SYNTHESIS MODULE User Manual

Reference Guide
147
Reference Guide
Global
Parameters
5
Saving Global Setup Data
All global settings are stored when the X5DR is powered off. You do not need to use the Write
function to save them.
0A – 0E Master Tune/Transpose/Velocity Curve/After Touch
Curve/Computer Select
Here, you can tune the X5DR, and set the responses and baud rate for communication with a
computer.
0A Master Tune: This function allows you to tune the X5DR. The selected tuning is indicated in
steps and Hz. 0 cents is equal to 440Hz (A4).
The X5DR can also be tuned from external MIDI devices that can output MIDI RPN Fine Tune
messages (the X5DR cannot output these messages). In Multi mode, these messages are received
on the MIDI Channels specified for each track and control the Detune parameters. In all other
modes, they are received on the Global MIDI Channel and control the Master Tune function. Refer
to page 71 for MIDI RPN Fine Tune messages.
0B Transpose: This function allows you to transpose the X5DR in semitone steps. This is useful
when you want to play a song in a different key.
LCD Parameter Range Description
0A Master Tune (Tune) –50 … +50 Used to tune the X5DR in cent steps.
0B Transpose (Trans) –12 … +12 Used to transpose the X5DR in semitone steps.
0C
Velocity curve (Vel) 1–8 Velocity response curve
After Touch curve
(Aft)
1–8 After Touch response curve
0D Computer Select
31.25 kBPS
38.4 kBPS
Baud rate setting for communication with a computer
00A MASTERTUNE ø
Tune+00:440.00Hz
0A
0B 0C
00D PC I/F CLK
31.25kBPS
0D
ø
00B TRANSPOSE ø
Trans+00
00C CURVE ø
Vel=3 Aft=3
0C Velocity Curve: This parameter allows you to
adjust the velocity response. A low setting requires
strong playing to achieve the maximum value
(insensitive). A high setting will achieve the
maximum value with soft playing (sensitive).
Select one of the eight curves to suit your playing
style.
4
5
MIDI Velocity
MIN
Velocity
MAX
8
6
2
1 127
Curves 7 and 8 are suitable when you do not need velocity, or when you wish to make the intensity
of the sound even, since changes are not obvious when playing moderately. However, Curves 7
and 8 are difficult to control, because even soft playing will generate significant changes.
Vel. Curve
1. Strong playing produces an obvious effect.
2.
3. Standard curve
4.
5.
6. Moderate playing produces an obvious effect.
7. Small changes and a constant effect with moderate playing
8. Similar to Curve 7, but slightly flatter.
~~
