BA 35203_04 * 3.0 * 35203_04_05_Bedienung.fm 5-117
Operation 5
Hitching a trailer
Danger of accident during reverse machine travel.
Can cause serious injury or death.
► Ensure that nobody is between the machine and the trailer.
► Have another person guide you if necessary.
Accident hazard due to unlocked coupling pin!
Can cause injury.
► After coupling a trailer, always check whether the lug is safely seated
on the towing pin and whether the hold-down device is safely locked.

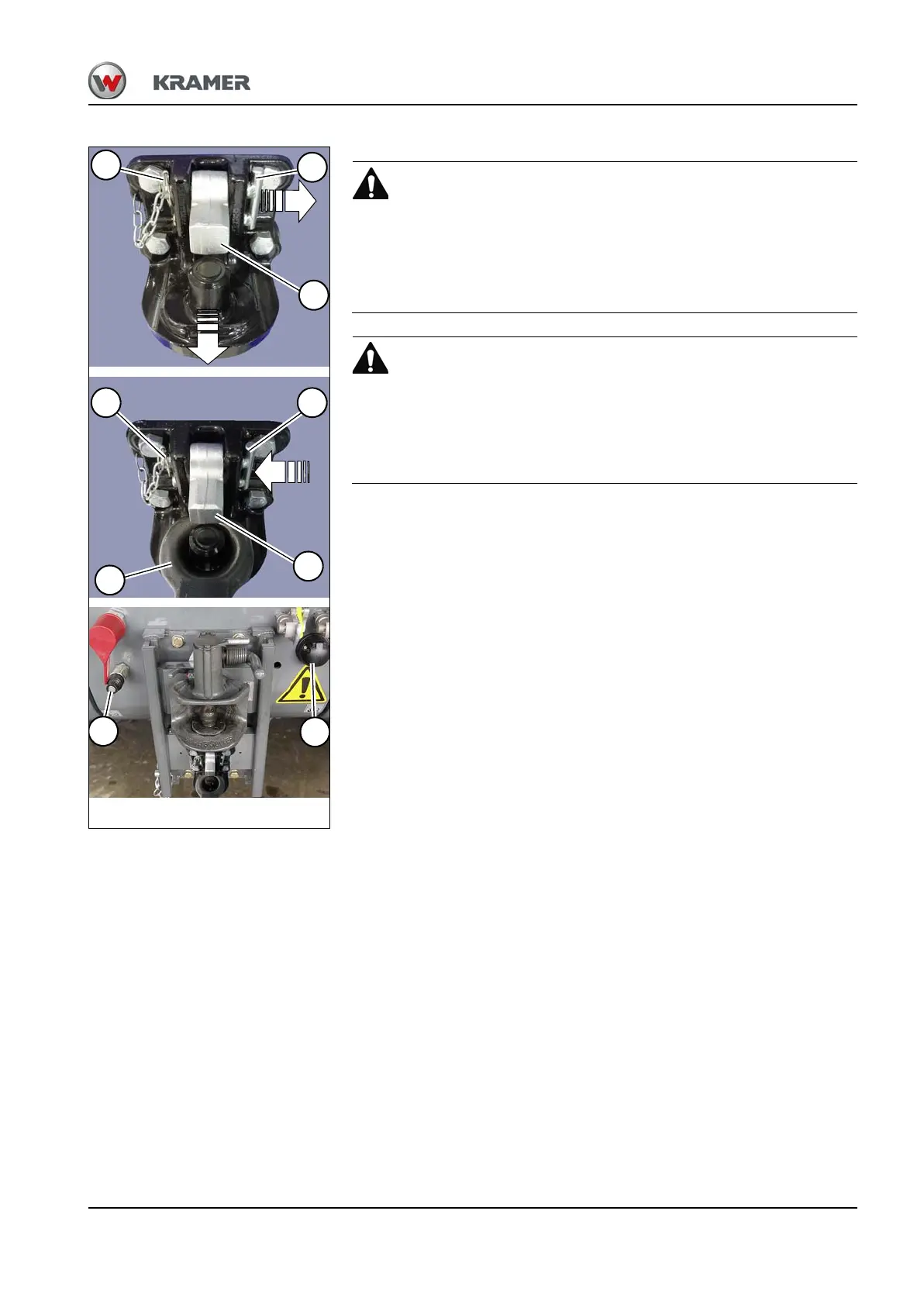

1. Adapt the height of the drawbar to the height of the trailer coupling.
2. Pull spring plug A out of lock pin B.
3. Hold push-down plate C and remove lock pin B in the direction of the
arrow.
4. Reverse the machine slowly until the lug is above the towing pin.
5. Stop the engine.
6. Apply parking brake.
7. Lower the drawbar prop and fold it to transport position.
8. Ensure that lug D is safely seated on the towing pin.
9. Position the hold-down device C so that the hold-down device is
securely seated on the towing pin.
10.Use lock pins B (longer bolts on top).
11.Secure lock pin B with spring plug A.
12.Establish the electric F and hydraulic E connections between the trailer
and the machine.
13.Release the trailer brake.
➥ Refer to the Operator’s Manual of the trailer.
14.Remove the wheel chocks from the wheels of the trailer and safely
store them on the trailer.
