Maintenance 7

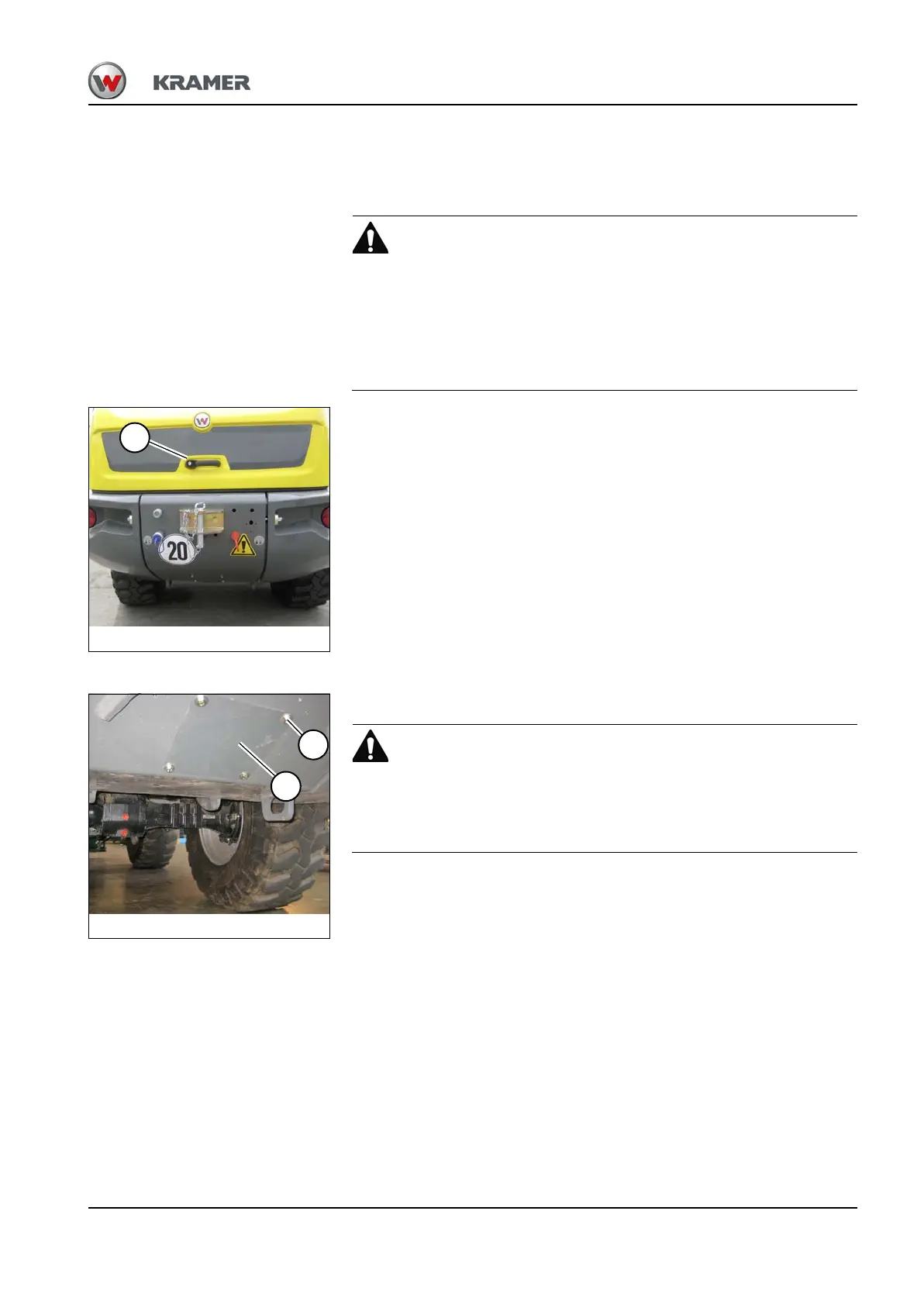

7.4 Maintenance accesses
Engine cover
Injury hazard due to hot and moving engine parts!
Hot and moving engine parts can cause injury.
► Do not open the engine cover if the engine is running.
► Let the engine cool down.
► Wear protective equipment.
Opening the engine cover:
1. Stop the engine and remove the starting key.
2. Unlock lock A with the ignition key.
3. Press lock A.
➥ The engine cover is raised with a gas strut.
Closing the engine cover:
1. Firmly press down the engine cover until lock A engages with an
audible click.
2. Lock the engine cover with the ignition key.
Lower engine vat
Opening the cover
Injury hazard due to falling cover!
Can cause bruises and injury on head and face.
► Hold the cover when you remove the last screw.
1. Stop the engine and remove the starting key.
2. Unscrew screws A.
3. Remove cover B.
Closing the cover
4. Close cover B again with screws A.
