9 Technical data
9.8 Electrical system
Electric units/light bulbs
Main fuse box with relays
The main fuse box is located in the engine compartment (rear wall left) or
behind the maintenance flap on the left side of the vehicle (near the air
cleaner).
Designation Power
Alternator 14V 120A
Starter 12V 3.2 kW (4.3 hp)
Battery 12V 100Ah
Light bulb – high beam (left/right) 12 V 55 W/H3
Light bulb – low beam (left/right) 12 V 55 W/H7
Light bulb – side marker light (left/right) 12 V 4 W
Light bulb – front and rear turn indicators
(left/right)
12V 21W
Light bulb – brake/rear lights (left/right) 12 V 21/5 W
Light bulb – working light 12 V 55 W/H3
Light bulb – rotating beacon 12 V 55 W/H1
Light bulb – interior light 12V 10W

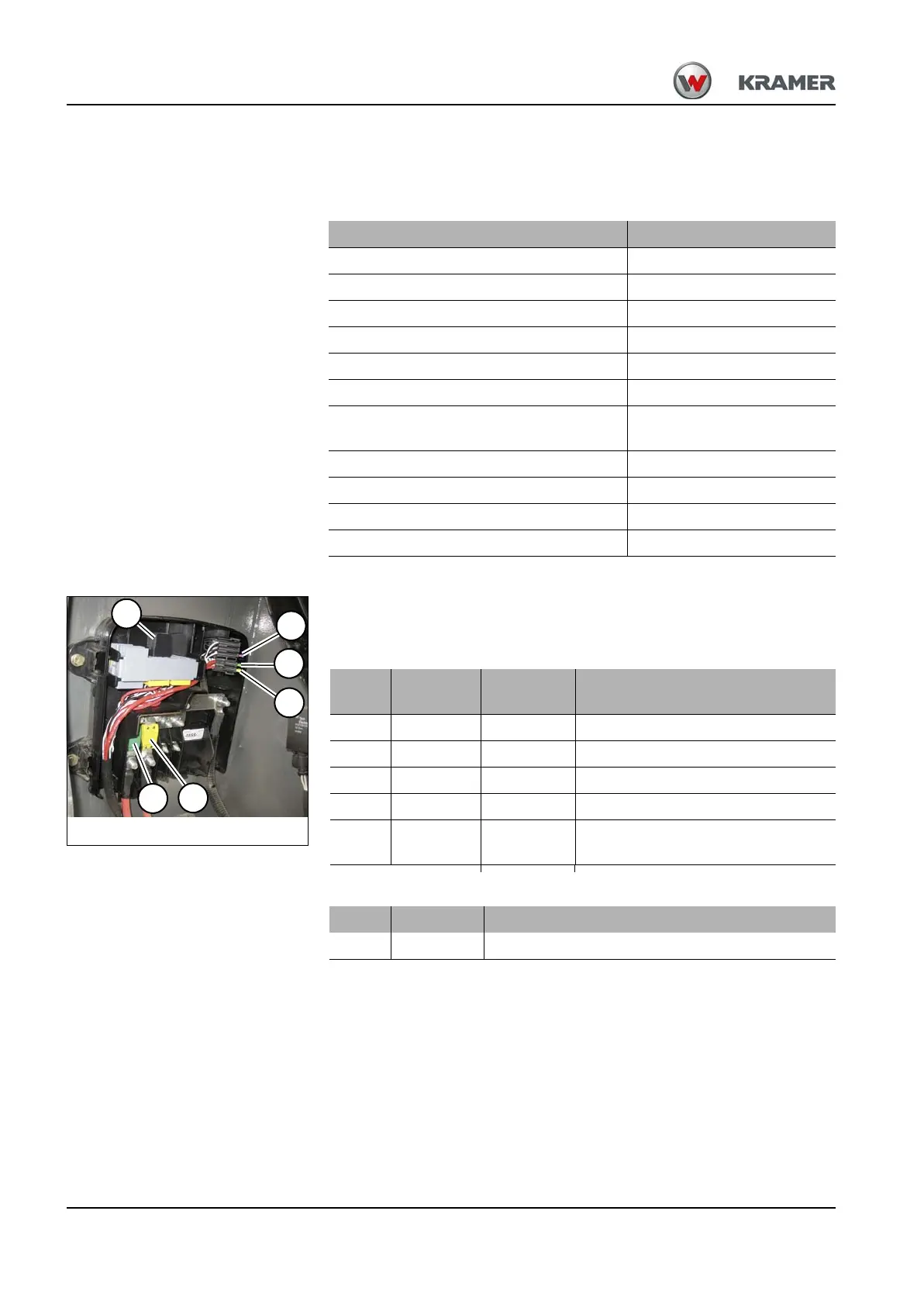

Fig. 311
2
3
4
5
1
6
Pos. BKM
Rated
current (A)
Protected circuit
1
F001 100 Main fuse (cabin supply)
2
F002 125 Preheating system (engine)
3
F004 20 Starter
4
F005 30 Main fuse (cabin supply)
5
F006 3
Exhaust gas recirculation
(diesel particulate filter)
Pos. Relay no. Protected circuit
6
K088 Fuel pump relay
