9 Technical data
Fuse assignments (pos. B)
Fuses behind control panel on the right

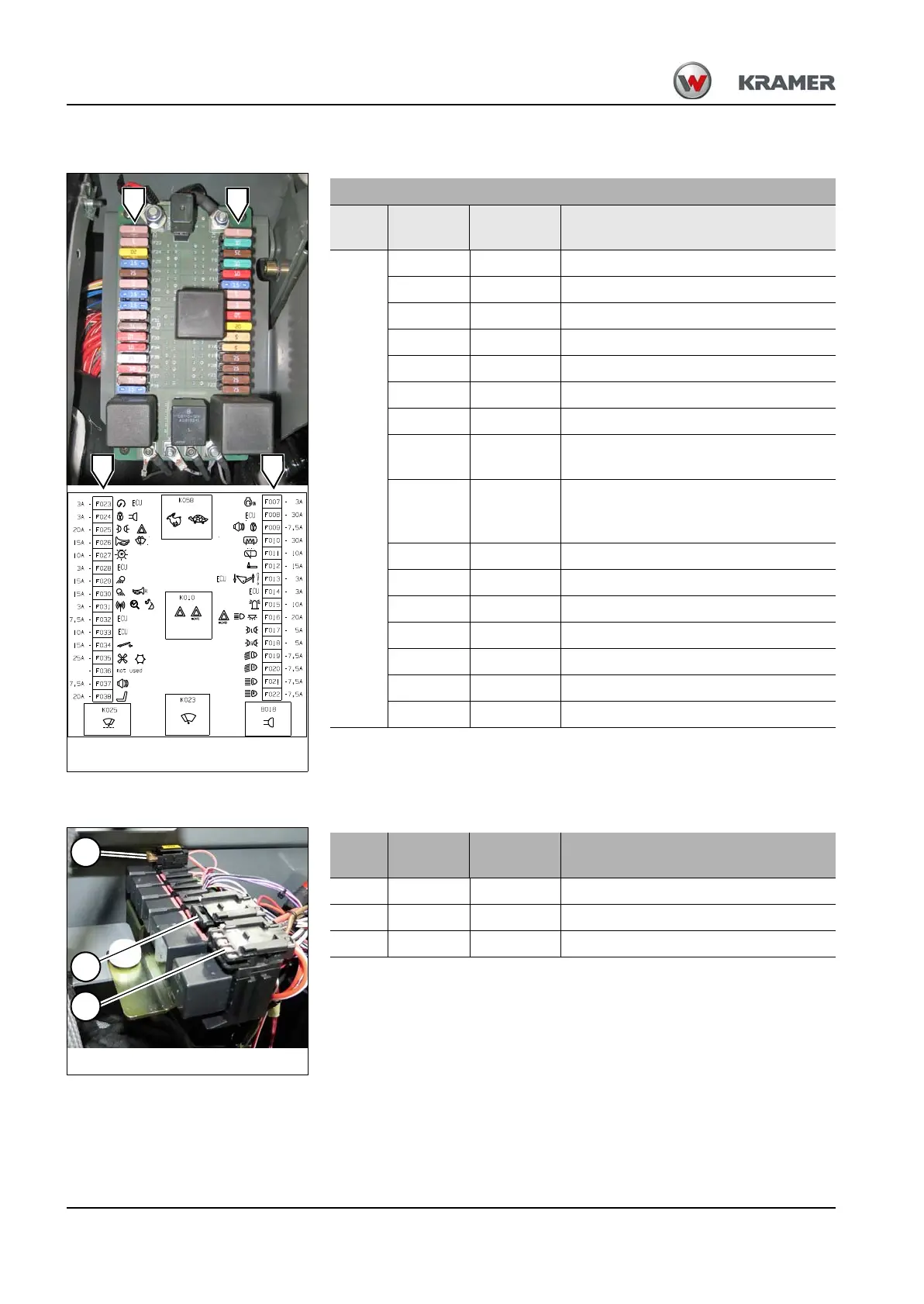

Fig. 313
A B
A B
Fuses in rear switching console in instrument panel, front left
Pos. BKM
Rated
current (A)
Protected circuit
B
F023 3 Instrument panel / cabin controller
F024 3 Buzzer / searchlight / immobiliser
F025 20 Parking light / flasher
F026 15 Horn / front wiper
F027 10 Brake lights
F028 3 Cabin controller
F029 15 Front working lights
F030 15
Rear working light / reversing warning
system
F031 3
Coupling signal / telematic power
supply / diagnostic power supply /
quickhitch lock
F032 7,5 Steering electronics
F033 10 Drive controller
F034 15 Front power outlet
F035 25 Heating / air conditioning
F036 – empty
F037 7,5 Radio
F038 20 Operator seat
Fig. 314
C
E
D
Pos. BKM
Rated
current (A)
Protected circuit
C F050 3 Powerflow plus
D F040 1 Telematic
E F053 5 Tilt sensor
