VW-16 – Operating and Controlling VW-16
19

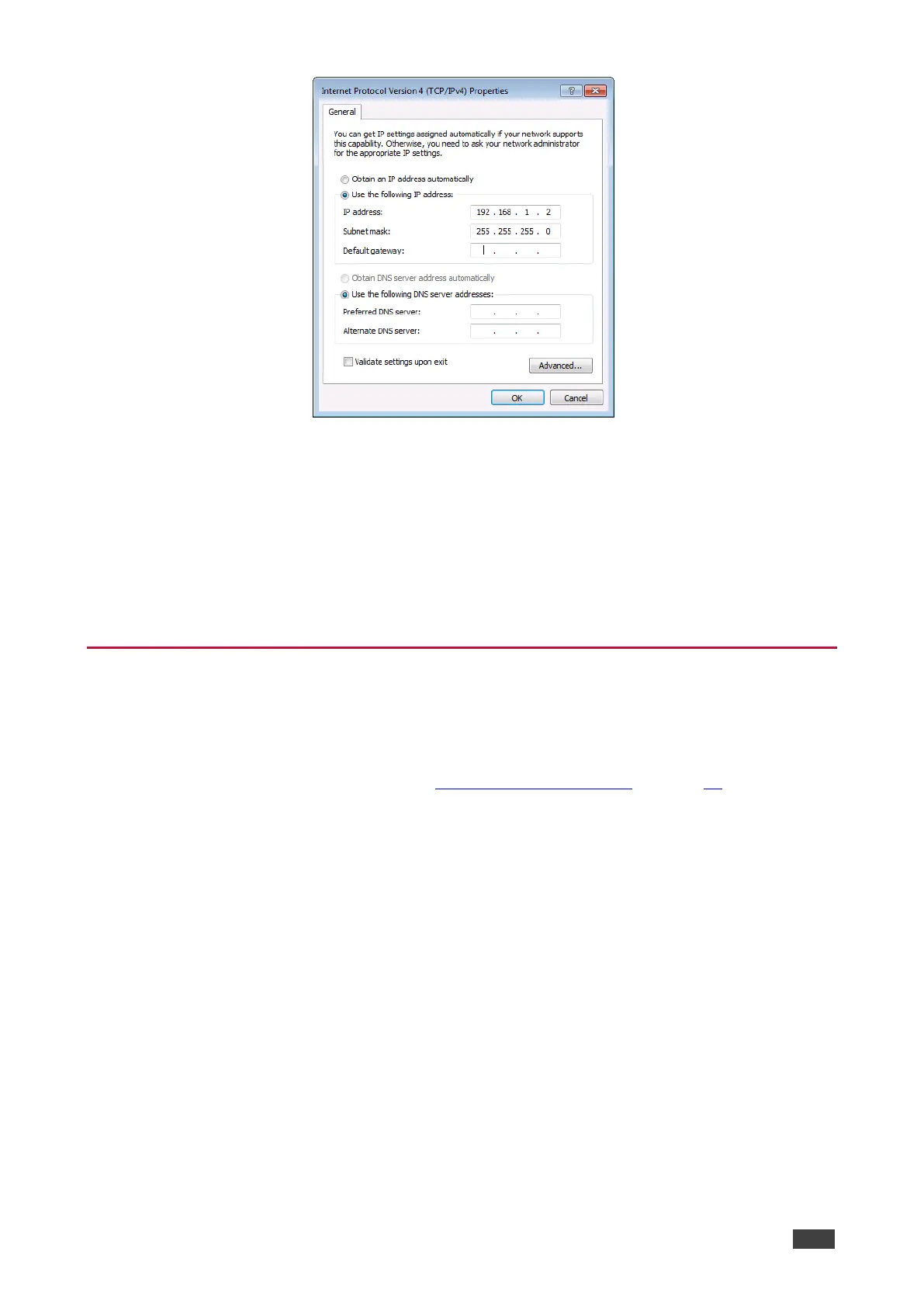

Figure 8: Internet Protocol Properties Window
7. Click OK.
8. Click Close.
Connecting Ethernet Port via a Network Hub or Switch
You can connect the VW-16 Ethernet port to the Ethernet port on a network hub or using a
straight-through cable with RJ-45 connectors.
Acquiring and Setting Current EDID Using RS-232
Serial Commands
1. Connect a PC, or other serial controller to VW-16 RS-232.
2. Use Protocol 3000 commands, see Protocol 3000 Commands on page 41.
