VW-16 – Connecting VW-16
8
Connecting the Output to an Unbalanced/Balanced
Stereo Audio Acceptor
The following are the pinouts for connecting the output to a balanced stereo audio acceptor:

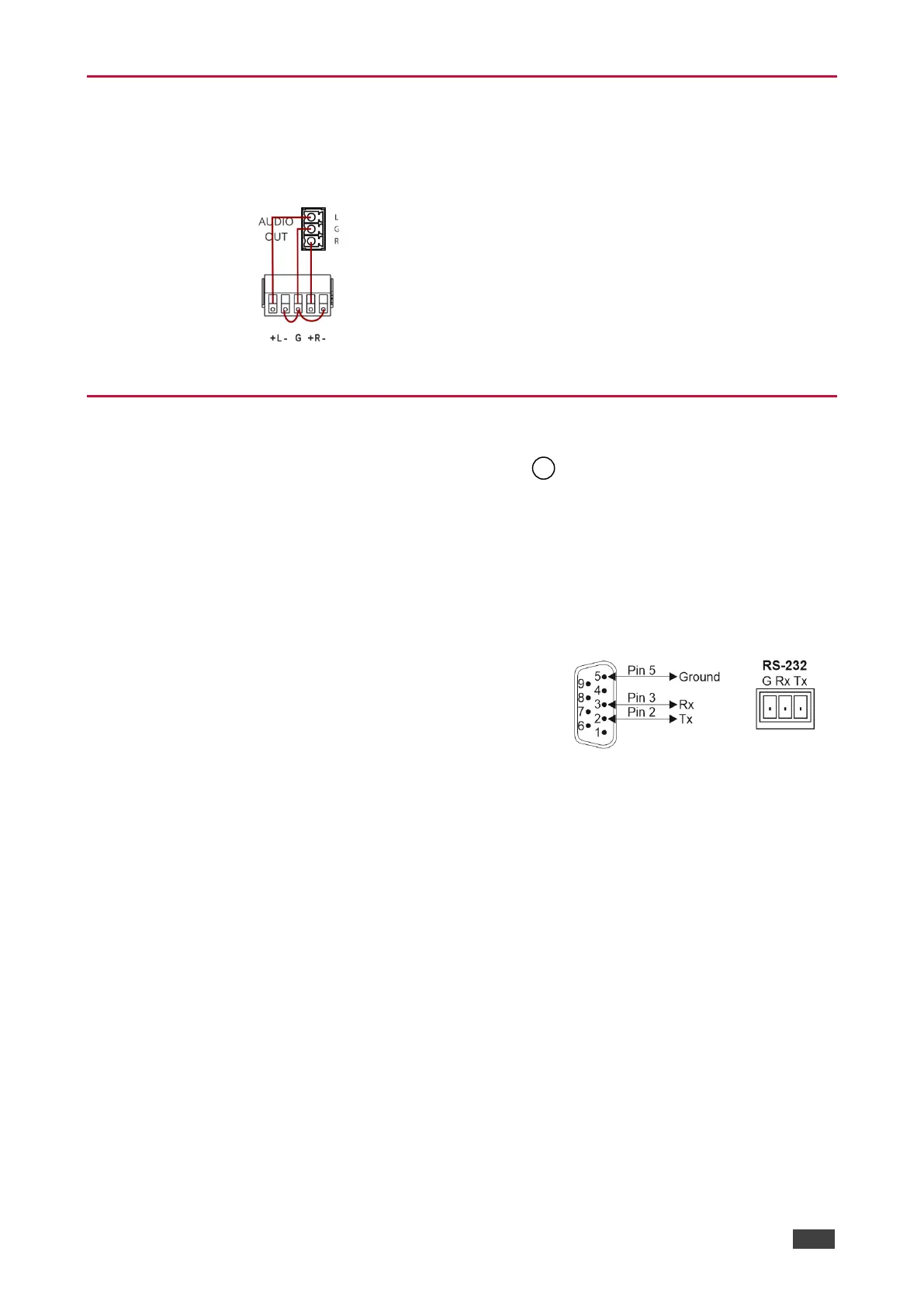

Figure 4: Connecting to a Balanced Stereo Audio Acceptor
Connecting to VW-16 via RS-232
You can connect to VW-16 via an RS-232 connection using, for example, a PC.
VW-16 features an RS-232 3-pin terminal block connector allowing the RS-232 to control
VW-16.
Connect the RS-232 terminal block on the rear panel of VW-16 to a PC/controller, as follows:
From the RS-232 9-pin D-sub serial port connect:
• Pin 2 to the TX pin on the VW-16 RS-232 terminal block
• Pin 3 to the RX pin on the VW-16 RS-232 terminal block
• Pin 5 to the G pin on the VW-16 RS-232 terminal block
RS-232 Device VW-16
15
