2 INSTALLATION
10
OPTISONIC 8300
www.krohne.com 03/2020 - 4008065101 - QS OPTISONIC 8300 R01 en
2.8 General requirements sensor
To secure the optimum functioning of the flowmeter, please note the following observations.
á Install the flow sensor in a horizontal position in a slightly descending line.
á Do not install the flow sensor in a lowered pipe section to avoid that water can collect in the
measuring tube.
á Orientate the flow sensor such that the path of the acoustic signal is in the horizontal plane.
For exchanging the transducers, please keep a free space of 0.3 m / 11.81" around the
transducer.
2.9 Installation conditions
2.9.1 Inlet and outlet

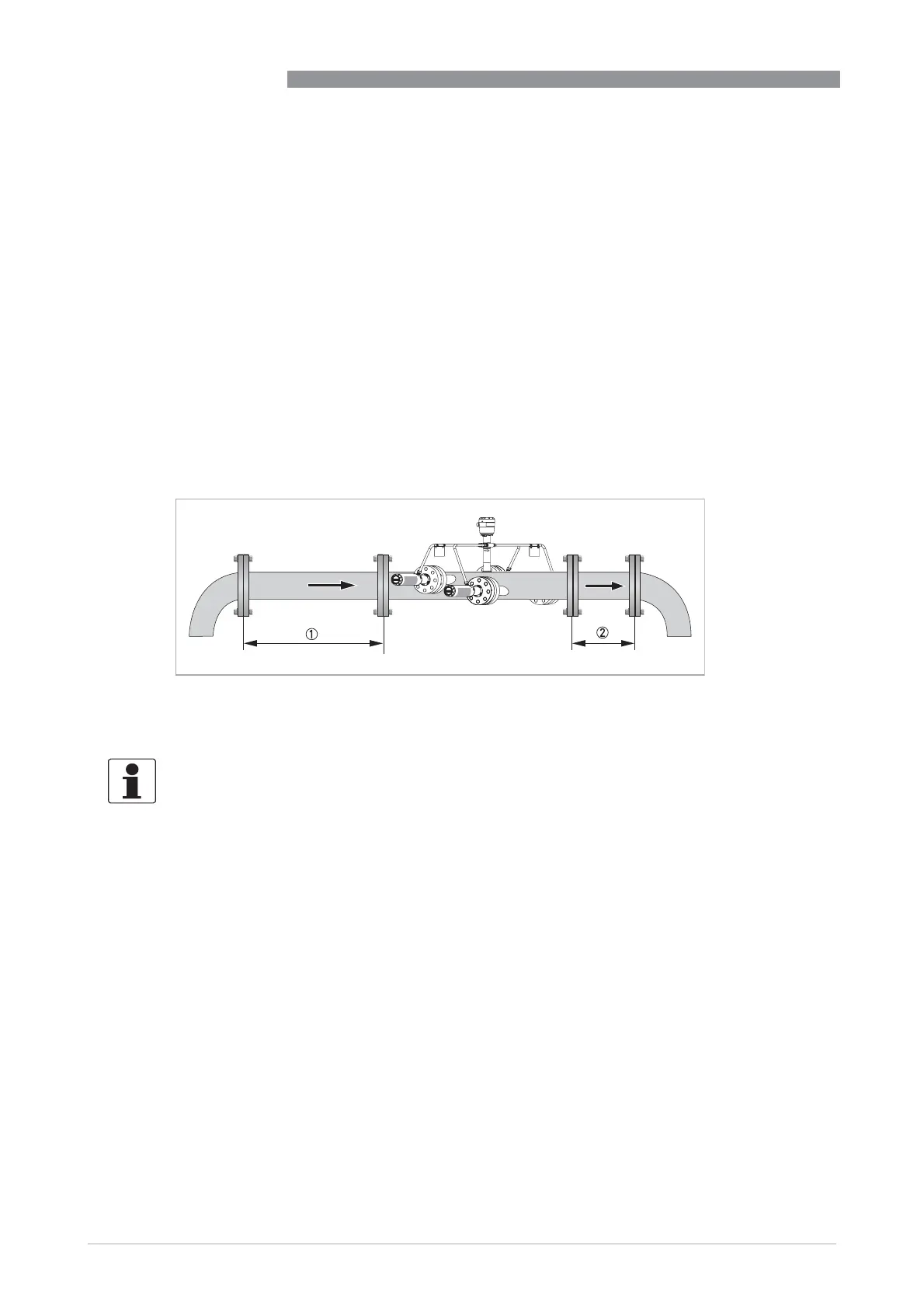

Figure 2-8: Recommended inlet and outlet
1 ≥ 20 DN
2 ≥ 3 DN
INFORMATION!
Shorter inlet conditions (< 20 DN) are depending on the upstream pipe configuration.
