KROHNE OPTISONIC 8300 - T-Section; Flange Deviation

INSTALLATION 2
11
OPTISONIC 8300
www.krohne.com03/2020 - 4008065101 - QS OPTISONIC 8300 R01 en
2.9.3 Flange deviation
CAUTION!
Max. permissible deviation of pipe flange faces:
L
max
- L
min
0.5 mm / 0.02"

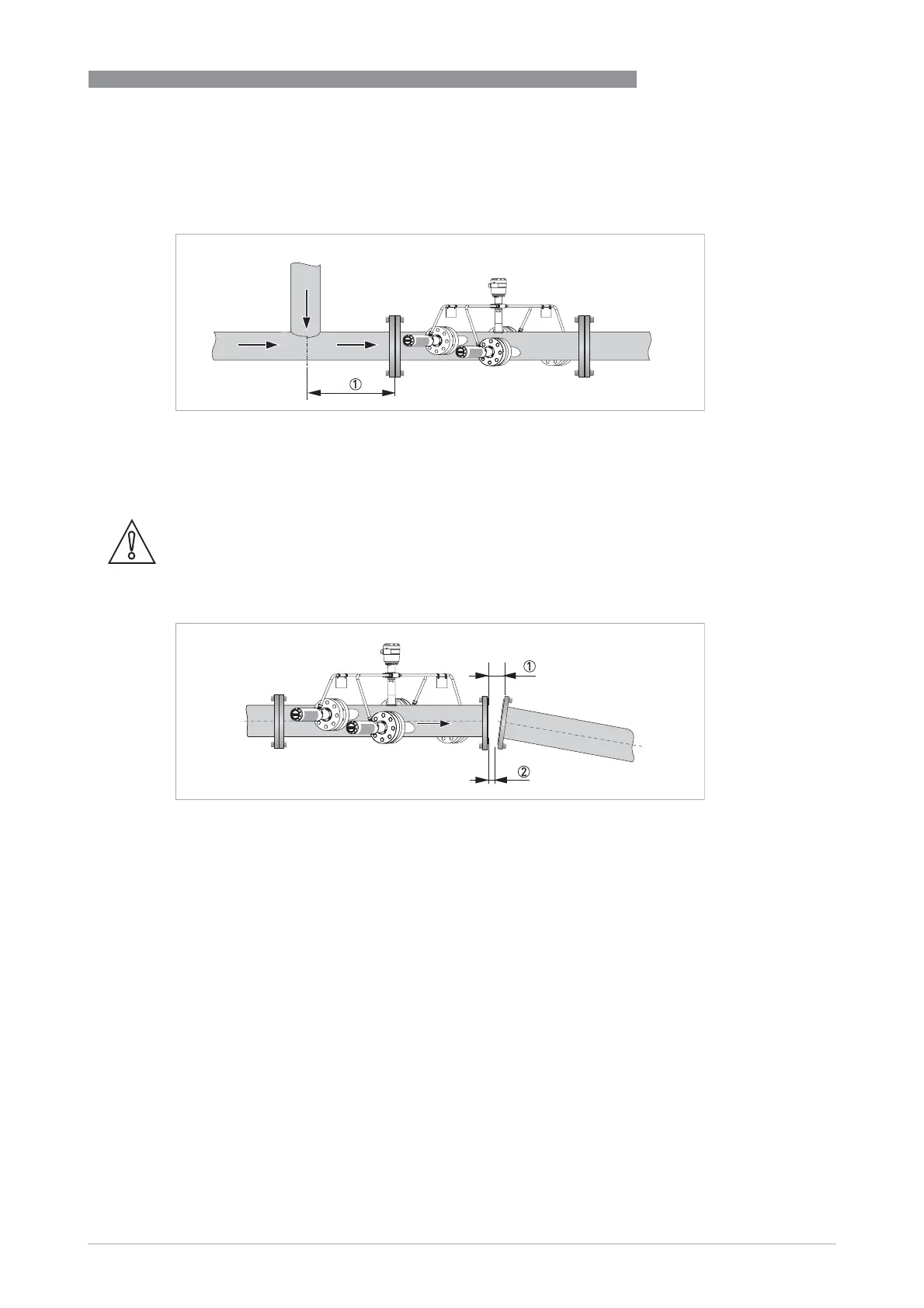

Figure 2-10: Flange deviation
1 L
max
2 L
min
2.9.2 T-section
Figure 2-9: Distance behind a T-section
1 20 DN
