4 TECHNICAL DATA
24
OPTISONIC 8300
www.krohne.com 03/2020 - 4008065101 - QS OPTISONIC 8300 R01 en
4.1 Dimensions and weight
The OPTISONIC 8300 is available as weld-in or flanged version. The design of the tube of the
flowmeter will be based on the specifications of the connecting piping. Detailed information for
the dimensions and weights cannot be specified as they will vary with each application. The
information below should therefore be regarded as indicative.
Dimensions of the OPTISONIC 8000 in mm and inches
INFORMATION!
Please note size d, the required extra space for installation and maintenance of the transducers.

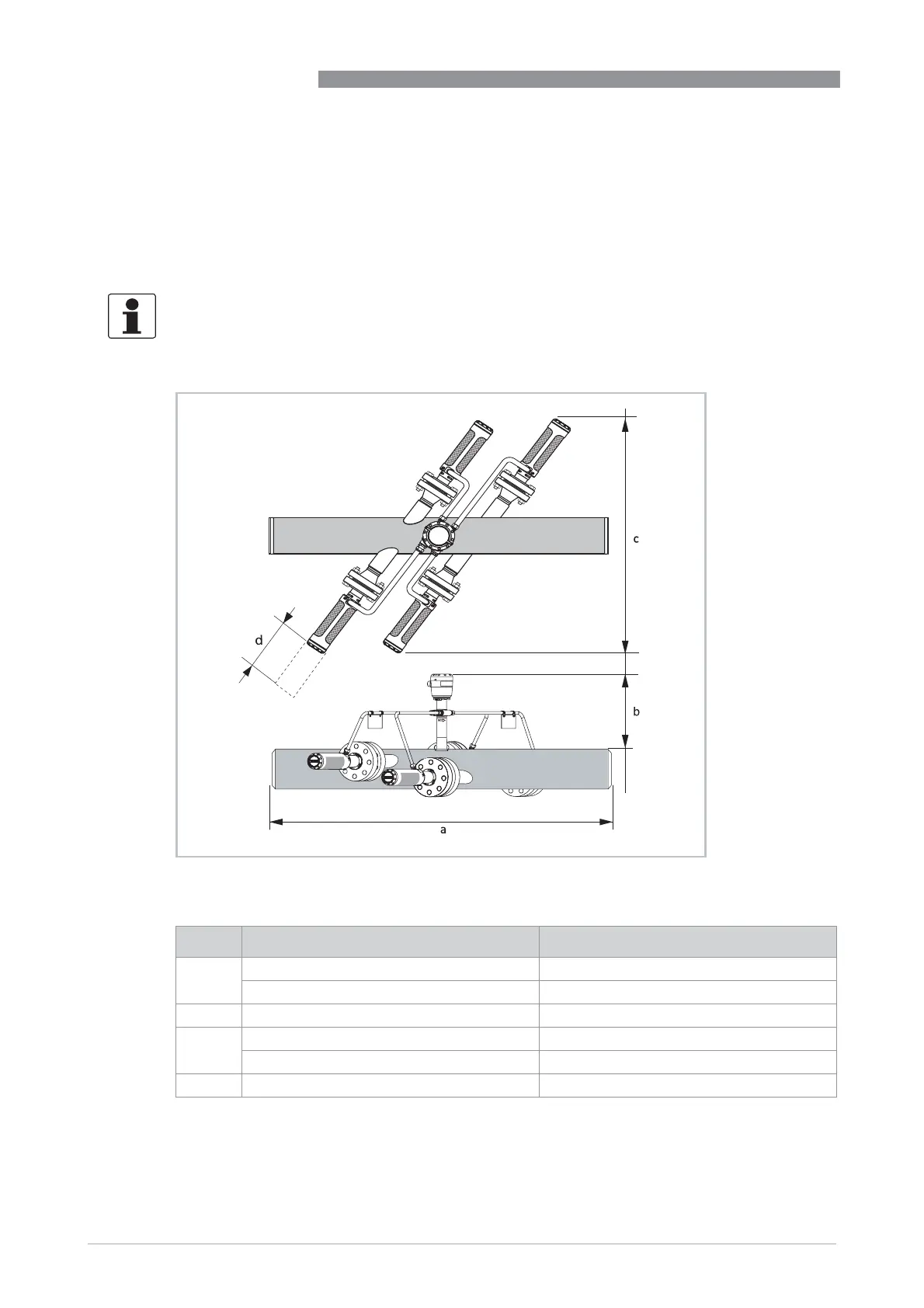

Figure 4-1: Top and front view of the OPTISONIC 8000
[mm] [inches]
a DN100 / 4": 1000 DN100 / 4": 39.37
DN150...600 / 6...24": 2000 DN150...600 / 6...24": 78.74
b 414 16.3
c Transducer flange rating 600 lbs: 1184 + Di 600 lbs: 46.61 + Di
Transducer flange rating 1500 lbs: 1205 + Di 1500 lbs: 47.44 + Di
d 300 11.8
