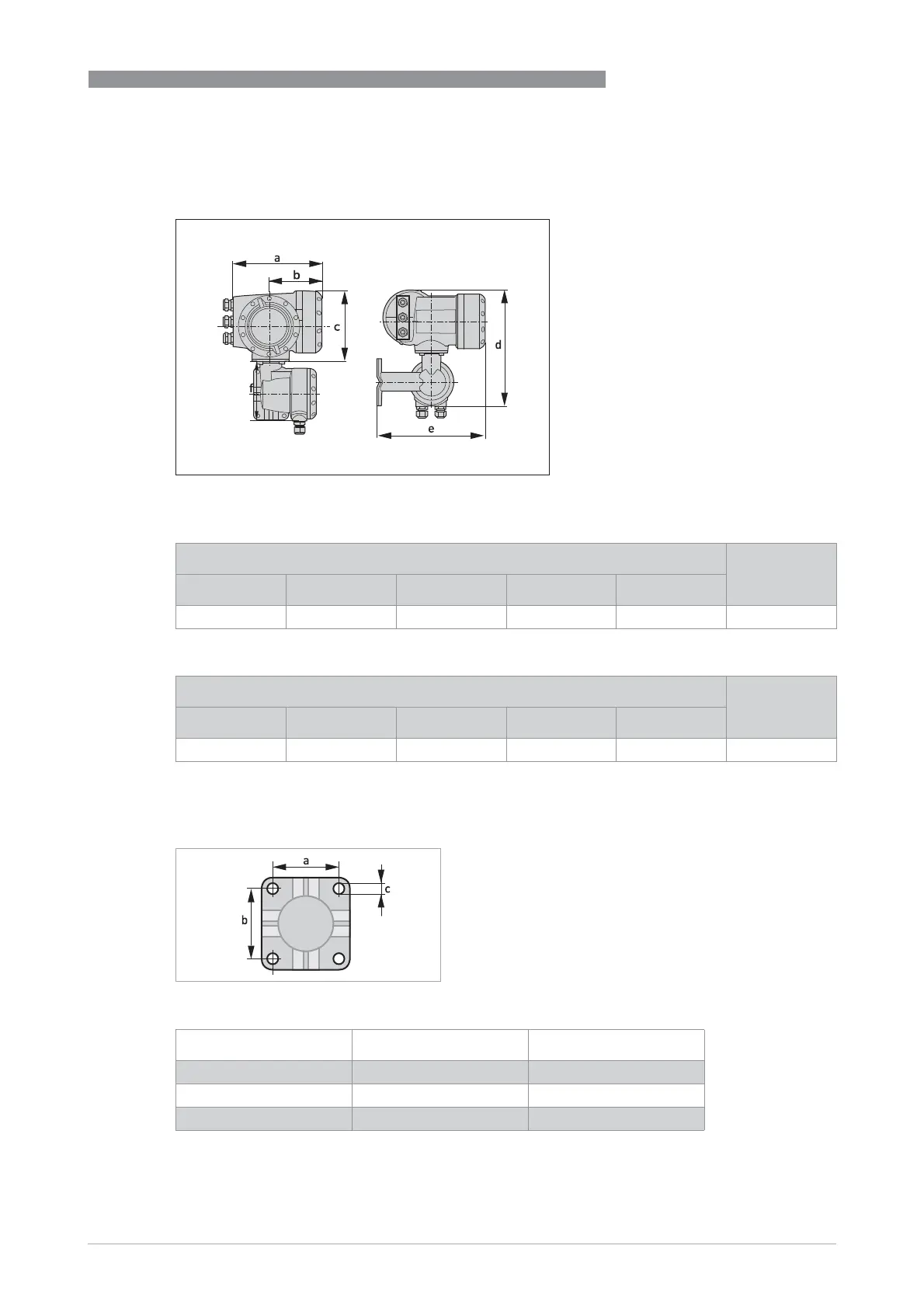

4.2 Converter housing
Dimensions and weights in mm and kg
Dimensions and weights in inches and lb
4.3 Mounting plate of field housing
Figure 4-2: Field housing (F) - remote version.
Dimensions [mm] Weight
[kg]
a b c d e
202 120 155 295.8 277 5.7
Dimensions [inches] Weight
[lb]
a b c d e
7.75 4.75 6.10 11.60 10.90 12.60
Figure 4-3: Dimensions for mounting plate of field housing
[mm] [inch]
a 72 2.8
b 72 2.8
c Ø9 Ø0.4
Table 4-1: Dimensions in mm and inch
