2.10.2 Turning the display of the field housing version
The display of the field housing version can be turned in 90° increments
1 Unscrew the cover from the display and operation control unit.
2 Pull out the display and rotate it to the required position.
3 Slide the display back into the housing.
4 Re-fit the cover and tighten it by hand.

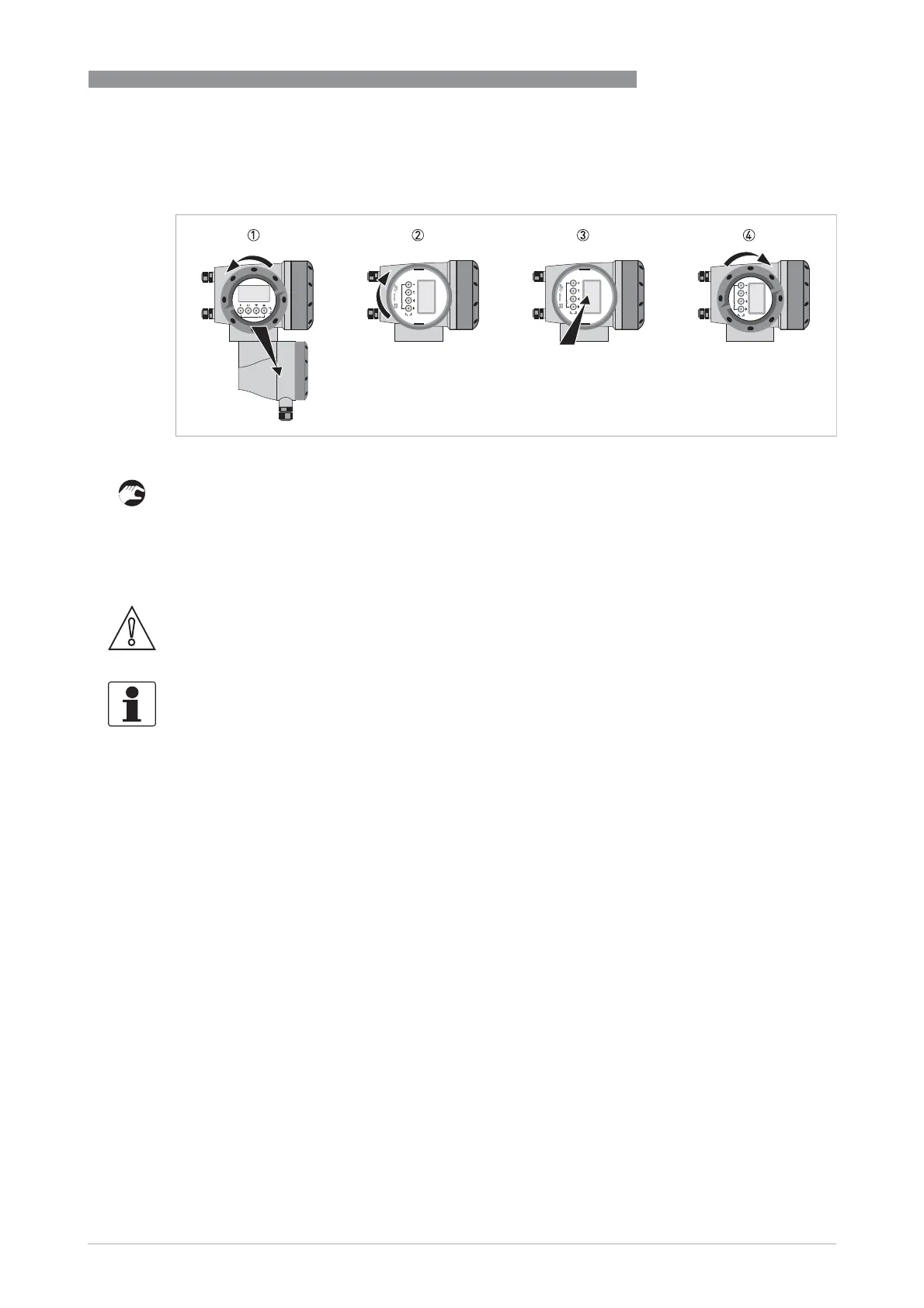

Figure 2-16: Turning the display of the field housing version
CAUTION!
The ribbon cable of the display must not be folded or twisted repeatedly.
INFORMATION!
Each time a housing cover is opened, the thread should be cleaned and greased. Use only resin-
free and acid-free grease.
Ensure that the housing gasket is properly fitted, clean and undamaged.
