Krone Comprima F - Adjusting the film brake

Important Settings for Film Tying
21
Pos: 6.14 /Übersc hriften/Übersc hriften 2/F-J/F/F olienbremse einstellen @ 4 70\mod_1471 503393644_78. docx @ 3177511 @ 2 @ 1
3.3 Adjusting the film brake
Pos: 6.15 /BA/Eins tellungen/Run dballenpresse/F olienbremse einstellen_Öse nschraube Konus _bild_Netz- und Folienbind ung_ALLE Co mprima @ 470\ mod_14715187 20678_78.doc x @ 3178347 @ @ 1
COM00473
X
2
Y
I
II
1
Fig.
19
Pos: 6.16 /Übersc hriften/Zwisc henüberschriften/F -J/Folienbr emse auf Netz- oder Folienbi ndung einstelle n @ 475\mod_14 73078395658 _78.docx @ 3209784 @ @ 1
Setting the film brake for net or film tying
Pos: 6.17 /BA/Eins tellungen/Run dballenpresse/F olienbremse einstellen_Öse nschraube Konus _text_Netz- u nd Folienbin dung_ALLE Com prima @ 470 \mod_14715190 15847_78.doc x @ 3178037 @ @ 1

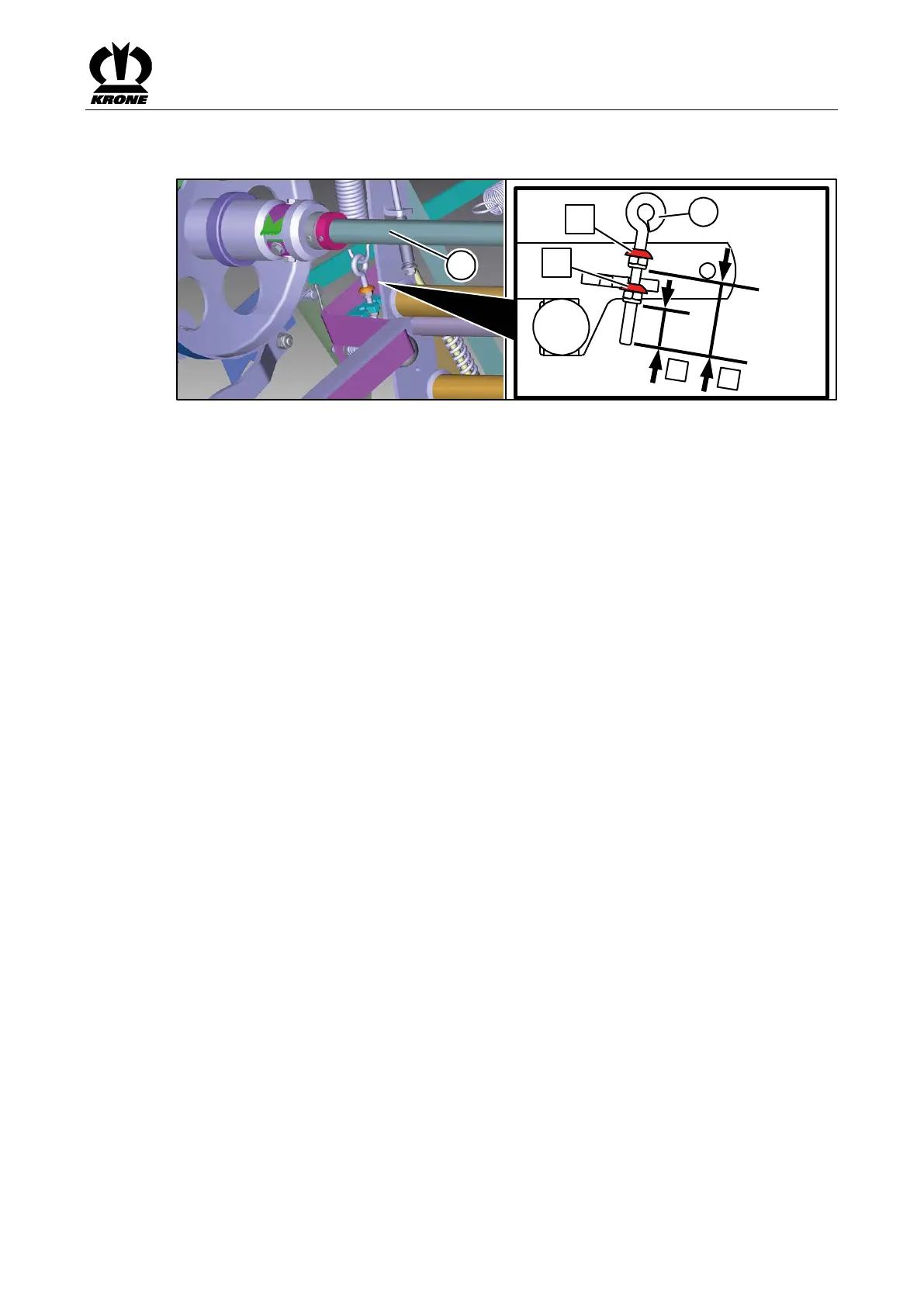

• To set the film brake, fold out the film roll holder (1).
• Film tying: Hook the eyelet bolt (2) to the lower cone in the support/holder on the
clamping lever (position (II)).
• Check whether the dimension X=30 mm. This is the factory setting recommended by
KRONE.
• Net tying: Hook the eyelet bolt (2) to the upper cone in the support/holder on the
clamping lever (position (I)).
• Check whether the dimension Y=55 mm. This is the factory setting recommended by
KRONE.
Pos: 6.18 /Übersc hriften/Zwisc henüberschriften/A -E/Bre mskraft der Folienbre mse erhöhen/ verringern @ 475\mod_147 3078492878_78.d ocx @ 320984 4 @ @ 1
Increasing/reducing the brake force of the film brake
Pos: 6.19 /BA/Eins tellungen/Run dballenpresse/F olienbremse einstellen_Öse nschraube Brems kraft_text_Netz- und Folien bindung_AL LE Comprima @ 475\mod_147 3078974321_ 78.docx @ 320990 4 @ @ 1
Film tying: If the strain on the film of a round bale wrapped in film is too high or too low, you
can increase or reduce the brake force of the film brake, see chapter Operation Device, "Check
strain on the inserted film".
Net tying: If the net around the round bale is tied too loosely or too tightly, you can set the
brake force.
• To set the film brake, fold out the film roll holder (1).
• To increase the brake force, increase the dimension X for film tying or Y for net tying.
• To reduce the brake force, reduce the dimension X for film tying or Y for net tying.
