3.6 Checking the Position of the Net Rocker Arm
Pos: 6.37.2 /BA/ Bedienung /Run dballenpresse/F olienbindung/Q uerverweise in Kapitel „Sens or B3 Netzmotorp osition einstelle n“_Com prima_fuerKurz anleitung @ 400\ mod_1447421 187245_78.d ocx @ 2834702 @ @ 1
For further information, as for example how the net rocker arm is moved to feed position or end
position, refer to chapter “Setting Sensor B3 Net Motor Position”.
Pos: 6.37.3 /Übersc hriften/Übersc hriften 3/U- Z/Zuführpositio n prüfen und einstellen @ 3 99\mod_14473108 14318_78.doc x @ 2830165 @ 3 @ 1
3.6.1 Checking and Setting Feed Position
Pos: 6.37.4 /Beipac ks/Rundballen pressen/Folie nbindung/Mod ulgruppen Brems e / Spiralwalz e/Zuführpositio n prüfen und einstellen_Bild @ 396\mod_ 1446733410985_ 78.docx @ 2 819755 @ @ 1

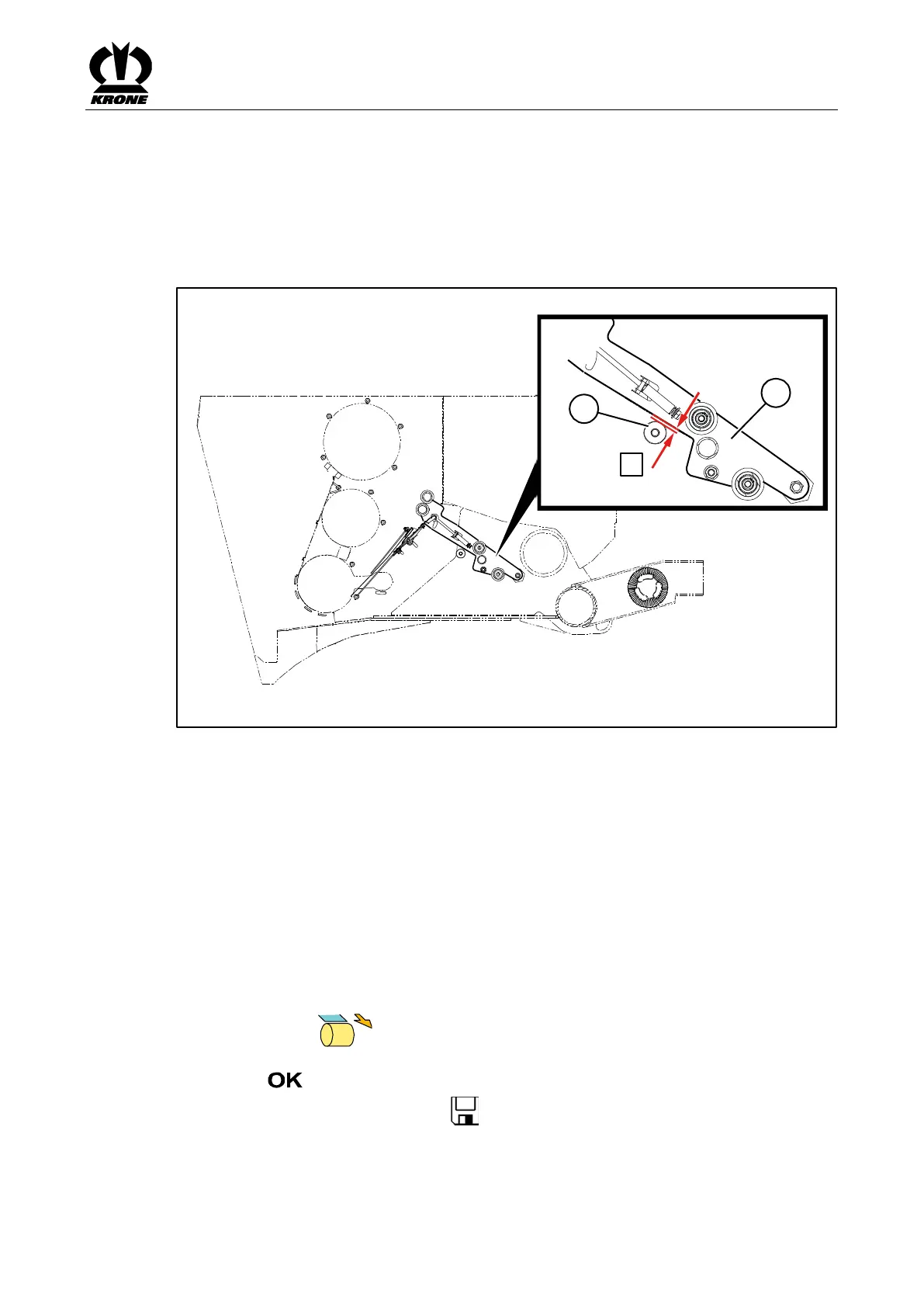

COM00426
X
1
2
Fig.
28
Pos: 6.37.5 /Beipac ks/Rundballen pressen/Folie nbindung/Mod ulgruppen Brems e / Spiralwalz e/Zuführposition prüfen und einstell en_Te xt_alle Comprim a @ 353\mod_1437734461 725_78.doc x @ 2641807 @ @ 1
For version with film tying, move net rocker arm in feed position closer to round bale in the bale
chamber than for net tying version. For optimum film reception, check feed position and set it, if
necessary:
• Open menu 10 “Manual Operation” in the terminal.
• Move net rocker arm (1) to the saved feed position on the round bale using the terminal.
• Switch off tractor and remove the ignition key.
• Check whether there is a distance of X=5 mm between net rocker arm (1) and stop (2).
If not:
• Start tractor.
• Open menu 15-1 “Sensor Test” in the terminal.
• Press the key until the net rocker arm (1) moves close enough to the stop (2) so
that the distance is X=5 mm.
• Select key.
The set position will be saved. The icon appears in the upper line.
