Krone Comprima F - Setting Sensor B3 Net Motor Position

Important Settings for Film Tying
29
Pos: 6.39 /Übersc hriften/Übersc hriften 3/P-T/ S/Sensor B3 Net zmotorpositio n einstellen @ 360\mod_143 9368883952_78.d ocx @ 2666 213 @ 3 @ 1
3.6.3 Setting Sensor B3 Net Motor Position
Pos: 6.40 /BA/In fo-Center/CCI- ISOBUS-Termi nal/CCI-Press-Wic kelvorrichtu ng/Hauptmen üs/Hauptmenü 4 Service/Sensor B3 Position N etzmotor einstelle n_Text_ALLE T erminals_n urFolie_Kurzanl eitung @ 400\ mod_144765 6233377_78.doc x @ 2834765 @ @ 1
IBT000203
OK
1

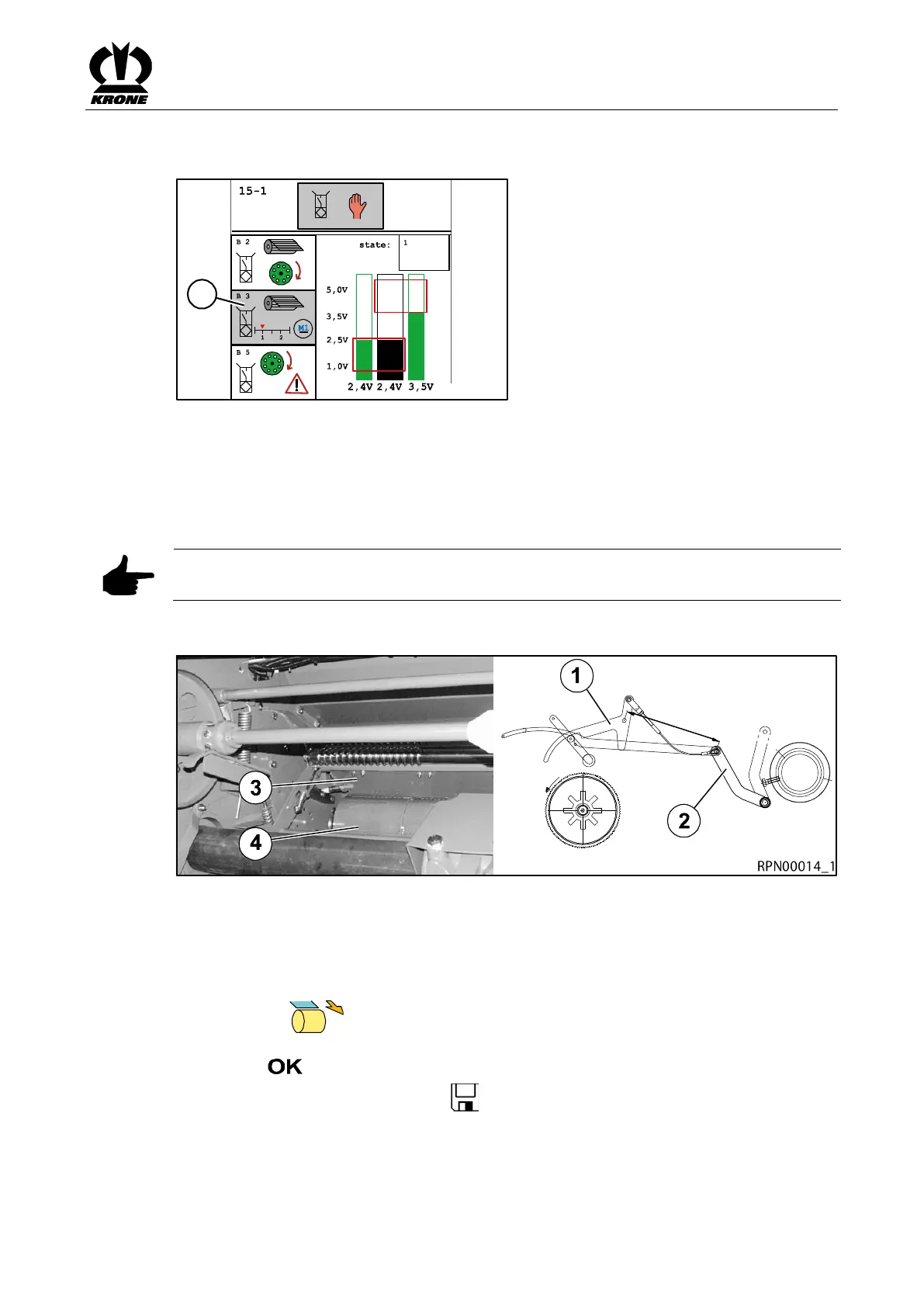

Fig.
30
By means of this sensor B3 (1), the following positions are recorded:
– the feed position,
– the cutting position and
– the tying position
Note
Saving is only possible when the bar is in the lower or upper rectangle of the bar display.
Setting feed position
Fig.
31
The distance A between pivot point of ratchet (1) and adjusting lever (2) must be A = 285 mm.
The feed position is optimally set when the net rocker arm moves close enough to the stop so
that the distance is 5 mm; refer to chapter Film Tying, “Checking and Setting Feed Position”.
• Press the key until the net motor extends far enough so that feed position is
reached.
• Select key.
The set position will be saved. The icon appears in the upper line.
A
