3.4 Checking and Setting Deceleration of Net Brake Discs

Pos: 6.28 /BA/W artung/Rundball enpresse/Foli enbindung Wartung/ Abbremsu ng Netzbremssch eiben prüfen_Ei nleitung @ 330 \mod_14 27291192057 _78.docx @ 25273 41 @ @ 1

Especially for film tying version, it might be possible that the film turns over at the film roll

instead of being fed to the round bale. If this is the case, the deceleration of the net brake discs

should be set. This setting can also be adopted for net tying.

Pos: 6.29 /Bei packs/Rundball enpressen/Folienbi ndung/Modulg ruppen Bremse / Spiralwalze/Z BBP1794: Abbre msung Bremssc heiben @ 31 7\mod_142 3114968111_ 78.docx @ 245 1625 @ @ 1

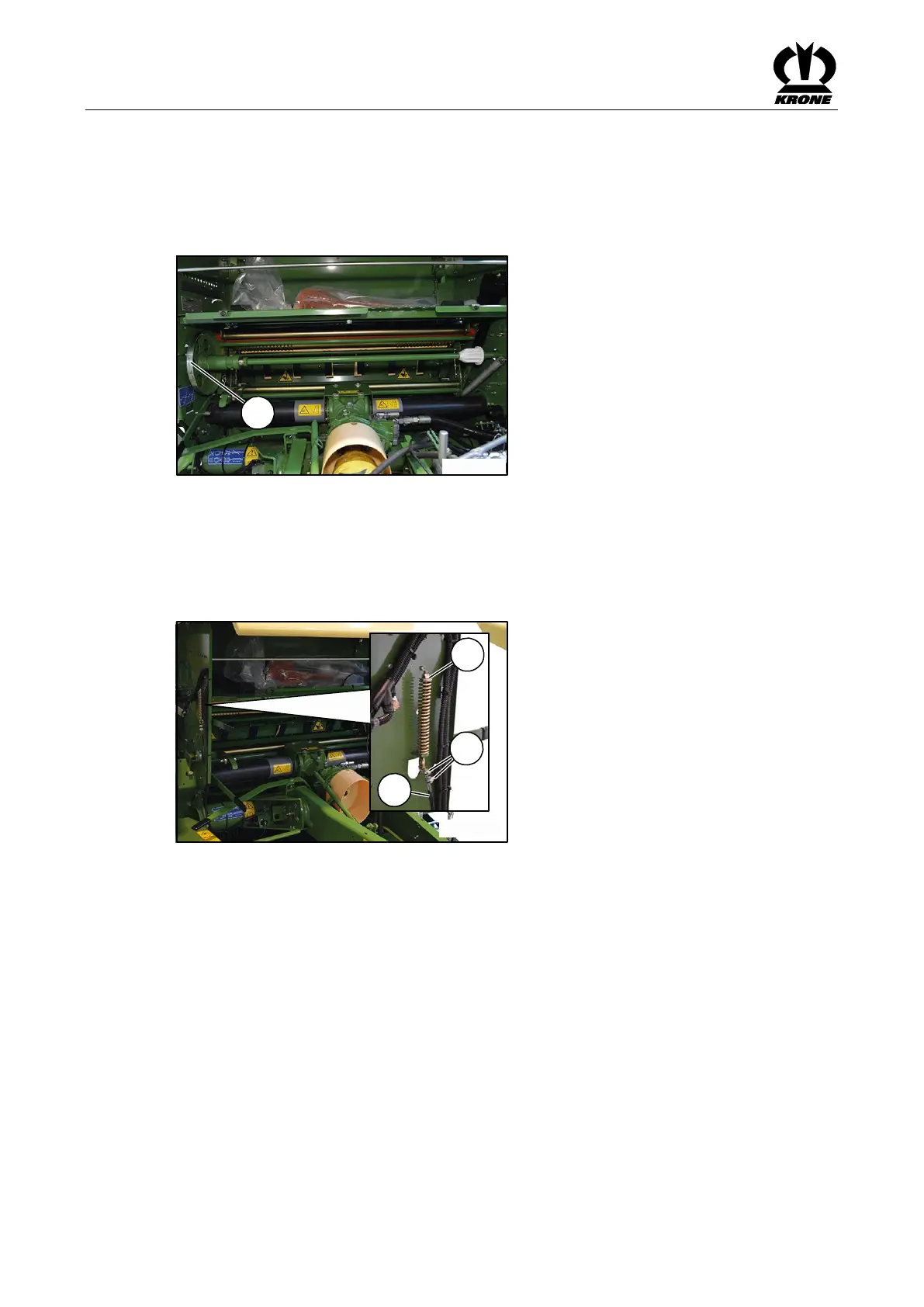

ZBBP1794

Fig.

Pos: 6.30 /Bei packs/Rundball enpressen/Folienbi ndung/Modulg ruppen Bremse / Spiralwalze/ Voraussetzung: N etzschwinge i n Zuführposition @ 390\m od_144552075 1351_78.docx @ 2794035 @ @ 1

Prerequisite: The net rocker arm is in the feed position (refer to “Checking the Position of Net

Rocker Arm”).

Pos: 6.31 /BA/W artung/Rundball enpresse/Foli enbindung Wartung/ Abbremsu ng Netzbremssch eiben prüfen_T ext @ 392\m od_14461886 87266_78.doc x @ 2808007 @ @ 1

• Turn net brake disc (I) manually.

A slight resistance must be felt.

Pos: 6.32 /Bei packs/Rundball enpressen/Folienbi ndung/Modulg ruppen Bremse / Spiralwalze/Z BBP1803: Abbre msung Bremssc heiben @ 31 7\mod_142 3115084267_ 78.docx @ 245 1685 @ @ 1

ZBBP1803

Fig.

Pos: 6.33 /BA/W artung/Rundball enpresse/Foli enbindung Wartung /Abbremsu ng Netzbremssc heiben einstelle n_Text @ 329 \mod_14272 87100775_78.d ocx @ 2526978 @ @ 1

If no slight resistance can be felt, the compression spring must be set on left-hand machine

side.

• Release the brake: Tighten nut (g) somewhat.

• Reinforcing brake: Loosen nut (g) somewhat.

• If you can still feel a slight resistance after setting the compression spring, loosen the wire

rope clamps (h), extend the wire rope (j) and further loosen the nut (g).
