Krone Comprima F User Manual

Operation
6
Pos: 4.17 /Übersc hriften/Übersc hriften 3/F-J/F/F olie einleg en_Folienbindu ng @ 339\mod_1 43098678359 5_78.docx @ 2 569835 @ 3 @ 1

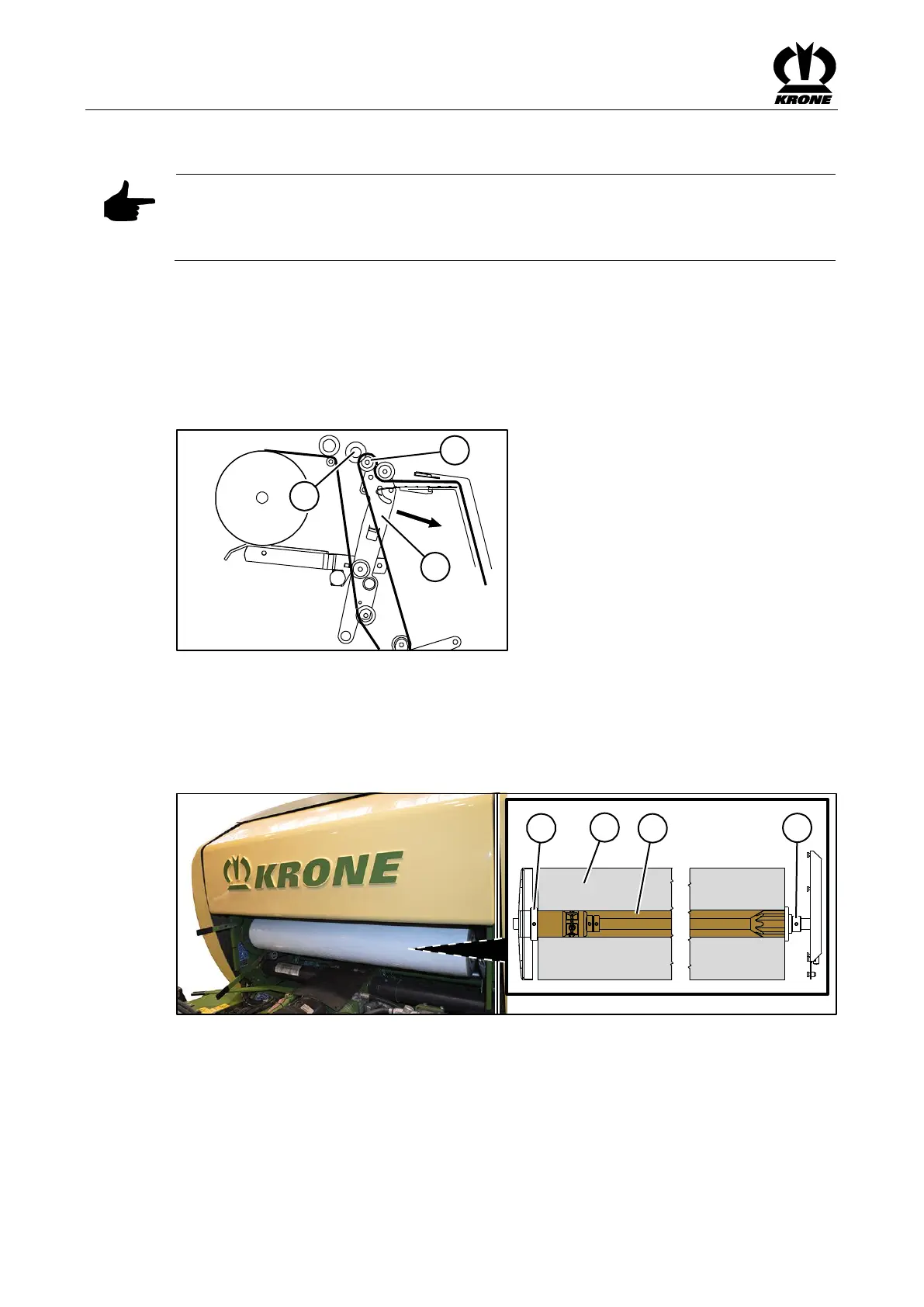

2.1.3 Inserting Film
Pos: 4.18 /Bei packs/Rundball enpressen/Folienbi ndung/Modulg ruppen Folie ei nlegen / LED Lichtleiste/Hi nweise: KRONE Folie verwende n @ 396\m od_144672193423 6_78.docx @ 2819018 @ @ 1
Note
For trouble-free field operation, KRONE recommends KRONE excellent RoundWrap film. This
film can be ordered by stating material number 00 926 947*. The film has a length of 2000 m,
a width of 1280 mm and a thickness of 16 µm.
Pos: 4.19 /Bei packs/Rundball enpressen/Folienbi ndung/Modulg ruppen Folie ei nlegen / LED Lic htleiste/Beschr eibung 1: Foli e einlegen_ Beschädigung en an Folie entfer nen_Beipac kab2016 @ 470\ mod_14714975 59042_78.doc x @ 3177205 @ @ 1
• Before the film is inserted, check whether the film is damaged.
If the film is damaged:
• Unroll damaged film and cut it off.
• Cut away the lateral bulges.
Pos: 4.20 /BA/Bedi enung /Run dballenpresse/Folie nbindung/F olie einlegen_Net zschwinge nac h vorn fahren_bil d_alle Compri ma_Beipacka b2016 @ 4 75\mod_1473 085868453_78. docx @ 3210468 @ @ 1
COM00480
3
2
1
Fig.
3
Pos: 4.21 /BA/Bedi enung /Run dballenpresse/Folie nbindung/F olie einlegen_Netzsc hwinge nac h vorn fahren_t ext_alle Compri ma_Beipac kab2016 @ 475\mod_14 73085801678_78. docx @ 321 0437 @ @ 1
• Move the net rocker arm (3) forwards using the terminal until a distance of 5 cm between
the fixed deflection roll (2) and deflection roll (1) is established, see chapter Terminal –
Menus, "Menu 10 'manual operation'".
Pos: 4.22 /Bei packs/Rundball enpressen/Folienbi ndung/Modulg ruppen Folie ei nlegen / LED Lic htleiste/ZBBP 1802_2: Folie ei nlegen @ 4 70\mod_1471 440877689_7 8.docx @ 3177012 @ @ 1
ZBBP1802_2
1
2
3
4
Fig.
4
Pos: 4.23 /Bei packs/Rundball enpressen/Folienbi ndung/Modulg ruppen Folie ei nlegen / LED Lic htleiste/Beschr eibung 1: Foli e einlegen_alle C omprima _Beipackab2016 @ 470\mod_ 1471497688883_ 78.docx @ 3 177236 @ @ 1
Inserting a film roll
• Insert the film roll (2) and align it centrally to the machine.
• Check whether the film roll (2) is centrally aligned by measuring to the side walls.
• Slide the adjusting ring (1) and (4) up to the inner cardboard roll (3) and secure it.
Pos: 4.24 /Bei packs/Rundball enpressen/Folienbi ndung/Mod ulgruppen Folie ei nlegen / LED Lic htleiste/ZBB P1798: Folie ei nlegen @ 317\ mod_142312 7669005_78.doc x @ 2454207 @ @ 1
