Krone Comprima F - Setting Scraper to Spiral Roller

Important Settings for Film Tying
25
Pos: 6.35.1 /Übersc hriften/Übersc hriften 2/A-E /A/Abstreifer zur Spiralwalze ei nstellen @ 35 1\mod_14368 65841043_78.do cx @ 2630190 @ 2 @ 1
3.5 Setting Scraper to Spiral Roller
Pos: 6.35.2 /BA/ Wartung/Rund ballenpresse/Foli enbindung W artungAufkleber Spiralwalze_Foli enbindung_Ei nleitung @ 363\ mod_144005 6812644_78.d ocx @ 2675 445 @ @ 1

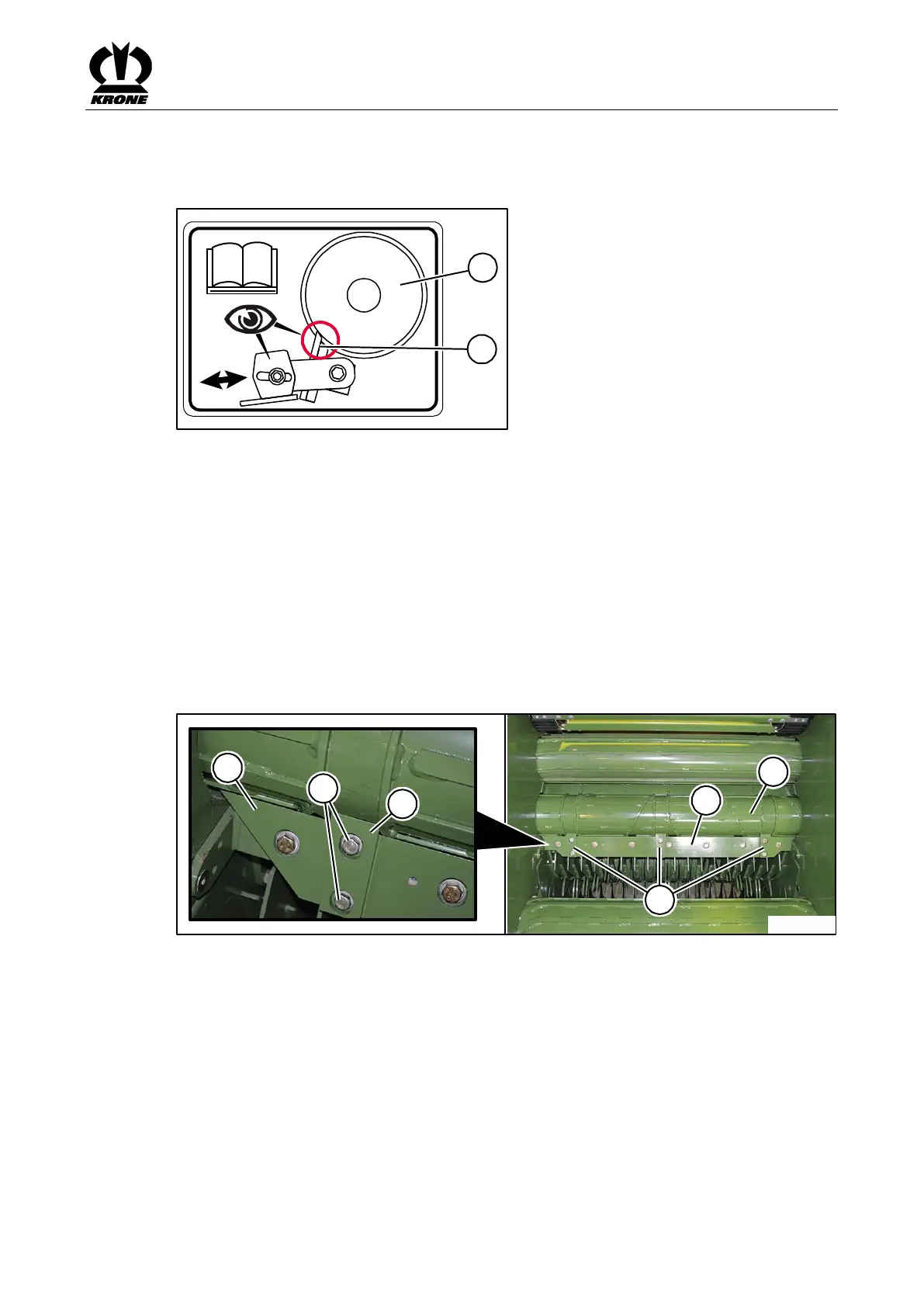

The following information label is attached to the machine:
Pos: 6.35.3 /BA/ Wartung/Rund ballenpresse/Foli enbindung W artungAufkleber Spiralwalze_Foli enbindung_Bild @ 363\ mod_1440056497 394_78.docx @ 2675385 @ @ 1
COM00416
27 018 237 0
1
2
Fig.
24
Pos: 6.35.4 /BA/ Wartung/Rund ballenpresse/Foli enbindung W artungAufkleber Spiralwalze_F olienbindung_T ext @ 363\ mod_14400575 81614_78.doc x @ 2675507 @ @ 1
• Ensure that the scraper (2) rests closely against the spiral roller (1).
• When the scraper (2) does not rest closely against the spiral roller (1), set the scraper as
described below.
Pos: 6.35.5 /BA/ Wartung/Rund ballenpresse/Foli enbindung W artung/Abstreifschi ene und Abstr eifverstärker eins tellen_Folie nbindung_ Voraussetzungen @ 350\mod_ 1436516210521 _78.docx @ 262 7242 @ @ 1
Prerequisites:
– The tailgate is opened and is locked hydraulically; refer to chapter entitled Safety
Equipment “Stop Cock Tailgate”.
– The side guard on right-hand machine side is opened.
Pos: 6.35.6 /La yout Module /----------------Leerzeile-------------------- @ 240\mod_139 5147357027_ 0.docx @ 1890 988 @ @ 1
Pos: 6.35.7 /Übersc hriften/Zwisc henüberschriften/ A-E/Abstr eifverstärker löse n @ 351\mo d_14368610444 62_78.docx @ 2 629617 @ @ 1
Loosening scraper reinforcer
Pos: 6.35.8 /BA/ Wartung/Rund ballenpresse/Foli enbindung W artung/Abstreifverst ärker löse n-festziehen_F olienbindung_ Bild @ 350\mod _14365096737 12_78.docx @ 2627008 @ @ 1
COM00400
1
3
1
3
4
2
Fig.
25
Pos: 6.35.9 /BA/ Wartung/Rund ballenpresse/Foli enbindung W artung/Abstreifverst ärker lösen_F olienbindung_T ext @ 350\ mod_1436509 950104_78.docx @ 2627302 @ @ 1
Three scraper reinforcers (3) are mounted additionally on the scraper rail (1). These scraper
reinforcers and the scraper rail (1) should rest against the spiral roller (2).
To set the scraper rail (1), loosen the scraper reinforcers (3):
• Loosen the screw connections (2).
The scraper reinforcers (3) can be moved in the oblong hole.
