Important Settings for Film Tying
26
Pos: 6.35.11 /Üb erschriften/Zwisch enüberschrifte n/A-E/Abstreif schiene ei nstellen @ 350\mod_14368 60877767_78.d ocx @ 2629586 @ @ 1

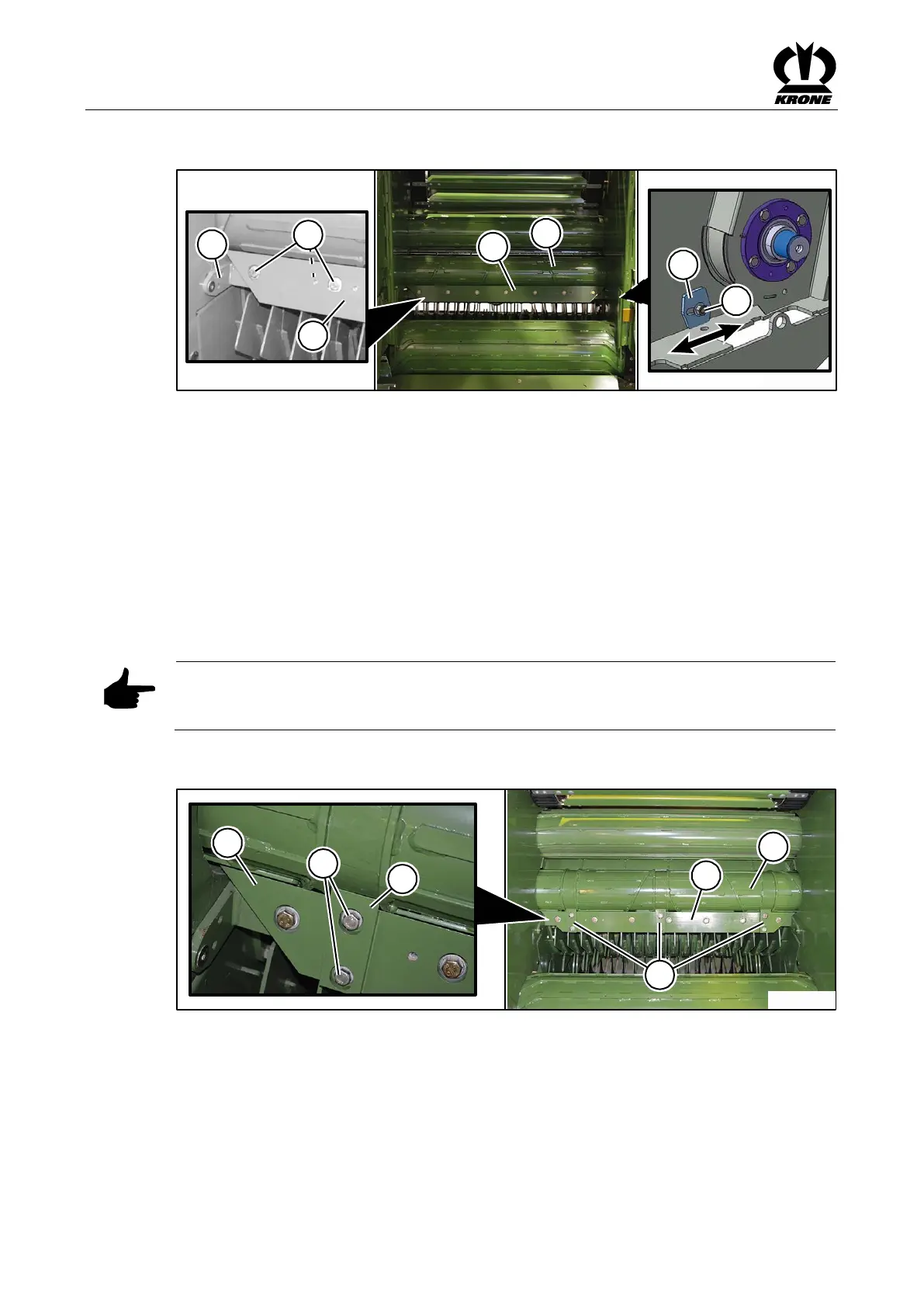

Setting scraper rail
Pos: 6.35.12 /B A/Wartung/Run dballenpresse/Folie nbindung Wartung/Abstreifsc hiene einstell en_Bild @ 350\ mod_14365 20880946_78.d ocx @ 2627544 @ @ 1
COM00401
5
6
3
1
2
3
4
Fig.
26
Pos: 6.35.13 /B A/Wartung/Run dballenpresse/Folie nbindung WartungAbstrei fschiene einstelle n_Text @ 35 0\mod_14365 08693947_78.d ocx @ 2626973 @ @ 1
• Mount scraper bar (1) centred in the oblong hole of housing side part and slightly tighten
the screw connection (6) at both external sides of the bale chamber.
• Lay the scraper rail (3) up to the spiral roller (4).
• Tighten screw connections (2) and threaded pins.
• Drive clamping wedge (5) into place on both outer sides of the bale chamber and tighten
screw connection (6).
• Turn machine manually and check whether the scraper rail (3) rests against the spiral
roller (4).
• In case the scraper rail (3) does not rest against the spiral roller (4), loosen the screw
connection (6) on the clamping wedge (5).
• Turn the clamping wedge (5) by 180° and tighten screw connection (6) again.
Pos: 6.35.14 /B A/Wartung/Run dballenpresse/Folie nbindung WartungAbstreifsc hiene einstelle n_Hinweis @ 35 0\mod_14 36860619780_7 8.docx @ 262 9551 @ @ 1
Note
It is possible to turn the clamping wedge by 180° as its dimensions from oblong hole to upper
and lower stop edge are different.
Pos: 6.35.15 /Üb erschriften/Zwisch enüberschrifte n/A-E/Abstreif verstärker ei nstellen und f estziehen @ 35 1\mod_14368 61197445_78.doc x @ 2629655 @ @ 1
Setting and tightening scraper reinforcer
Pos: 6.35.16 /B A/Wartung/Run dballenpresse/F olienbindung Wartung/Abstreif verstärker lös en-festziehen _Folienbindung _Bild @ 350\ mod_1436509673 712_78.doc x @ 2627008 @ @ 1
COM00400
1
3
1
3
4
2
Fig.
27
Pos: 6.35.17 /B A/Wartung/Run dballenpresse/F olienbindung Wartung/Abstreif verstärker festzie hen_Folienbi ndung_Text @ 35 1\mod_1 43686145440 7_78.docx @ 2629 686 @ @ 1
• Place scraper reinforcer (3) on the spiral roller (4).
• Tighten screw connections (2).
