Important Settings for Film Tying
23
Pos: 6.24 /BA/Eins tellungen/Run dballenpresse/F olienbremse einstellen_Verriegel ungsbolzen_ bild_Netz- und Folienbind ung_ALLE Co mprima @ 470\ mod_147152202 6393_78.doc x @ 3178499 @ @ 1
COM00474
3
3
I
II
1 2
1 2
4
4
Fig.
21
Pos: 6.25 /BA/Eins tellungen/Run dballenpresse/F olienbremse einstellen_Verriegel ungsbolzen_ text_Netz- u nd Folienbindu ng_ALLE Com prima @ 470\m od_14715220 89960_78.doc x @ 3178530 @ @ 1

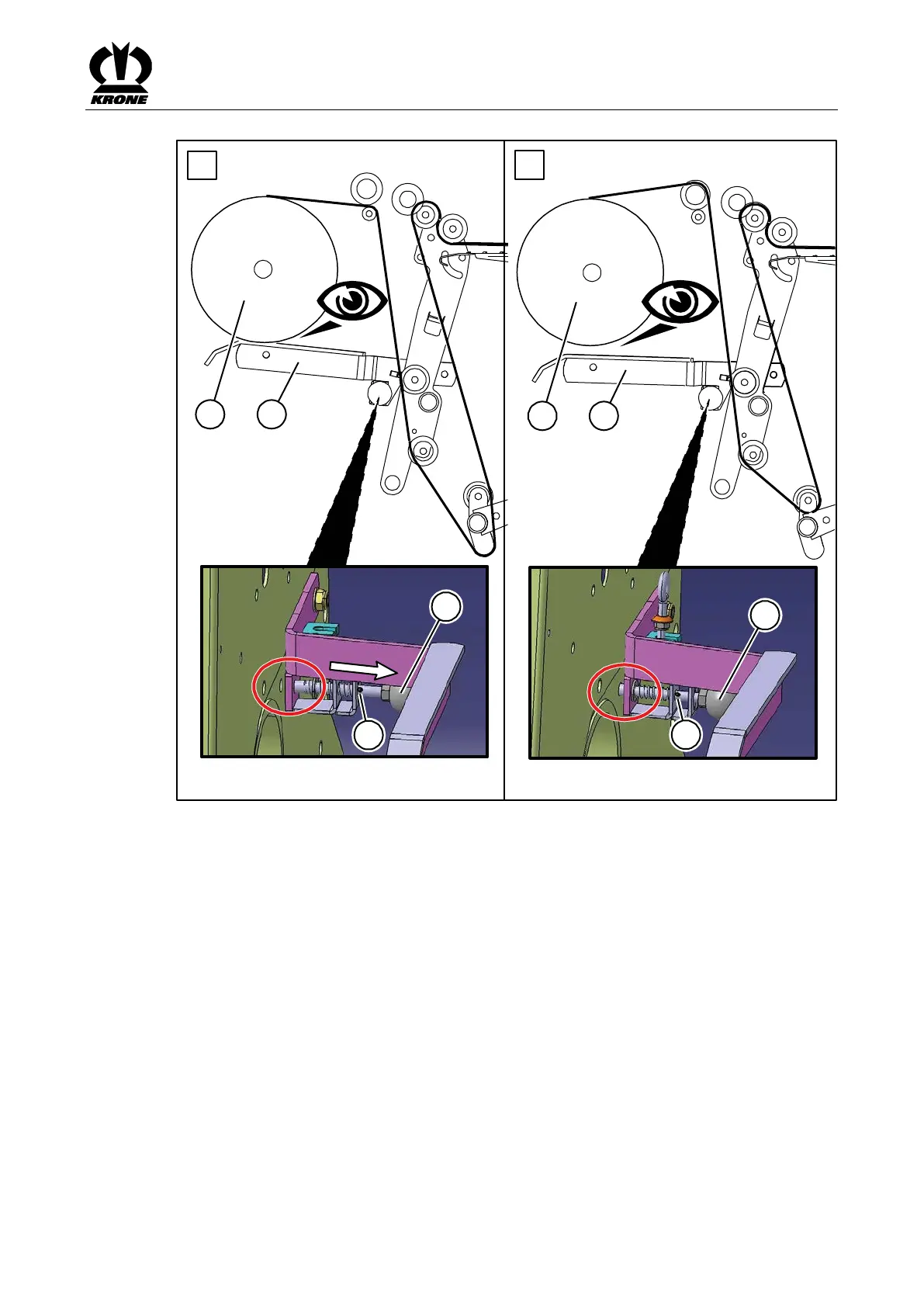

Position (I) (net tying): The locking pin with the ball head (3) is unlocked. The clamping
lever (2) rests on the net roll (1).
Position (II) (film tying): The locking pin with the ball head (3) is locked. This holds the
clamping lever (2) down so that it does not touch the film roll (1).
From position (I) to position (II)
• To lock the locking pin with the ball head (3) for film tying, turn the ball head clockwise
until the clamping sleeve (4) moves through the slot.
The compression spring automatically presses the bolt into the borehole.
From position (II) to position (I)
• To unlock the locking pin with the ball head (3) for net tying, turn the ball head anti-
clockwise and pull the bolt in the direction of the arrow until the clamping sleeve (4)
moves through the slot and the bolt engages.
