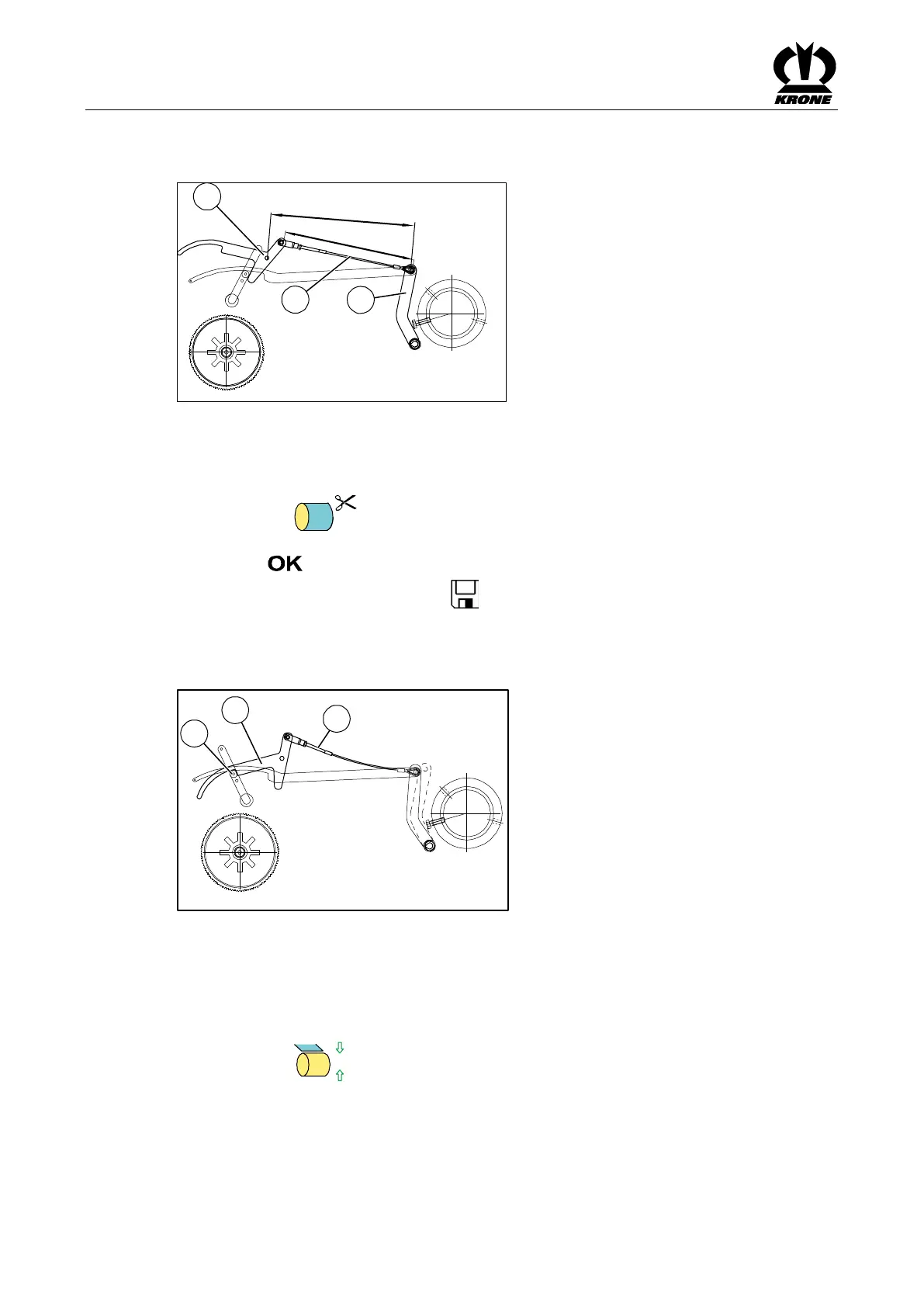

Krone Comprima F - Page 30

Important Settings for Film Tying
30
Setting the cutting position
Fig.
32
The cutting position is optimally set when the ratchet (1) is raised and the dimension A between
ratchet (1) and control lever (2) is A = 410 mm and the dimension B is B = 370 mm.
• Press the key until the net motor retracts far enough so that the cut-off position
is reached.
• Select key.
The set position will be saved. The icon appears in the upper line.
Moving to tying position
Fig.
33
The tying position is optimally set when the cable (1) is not tensioned and the roll (2) is located
in front of the ratchet (3). If this is not the case, the cutting position and the feed position must
be checked and reset, if necessary (see above).
• Press the
0
key.
The net motor moves first to feed position and then back to tying position.
