8.17 Pushing the Swath Cloth into Transport Position
Pos: 20.56 /Ab kürzungen /Abkürz ungen sprac hneutral/Schwad er/Swadro 907 @ 1\mod_120 2226168013_0. doc @ 58250
Swadro 907
Pos: 20.57 /BA/Sic herheit/Gefahre nhinweise/Ei nstellarbeiten gez ogene Maschi nen @ 0\mod_ 1199717011038 _78.doc @ 339 80
Danger! - Unexpected movements of the machine
Effect: Danger to life or serious injuries.
• Setting tasks must only be performed when the drive is switched off and the engine is at
a standstill!
• Switching off the engine
• Remove the ignition key.
• Secure the machine against the possibility of rolling back.
Pos: 20.58 /BA/Be dienung /Sch wader/Schwadtuc hi nT ransportst ellung schieb en SW 907 @ 2\ mod_120272 2235908_78.doc @ 60257
1
2
SW9070019
1
Fig. 31

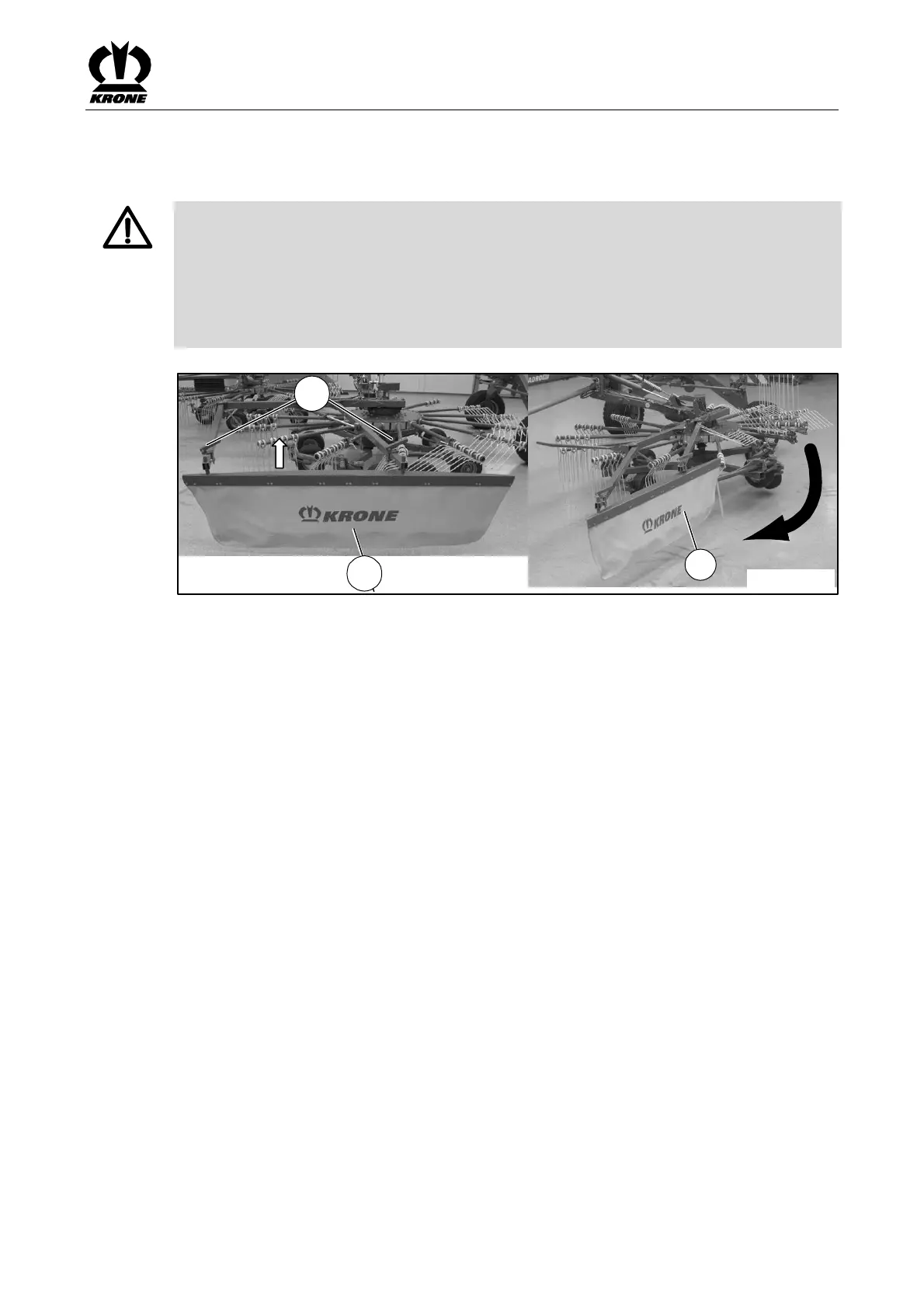

The swath cloth must be pushed as far in as possible for transport (see photo).
• Loosen the locks (2).
• Push the swath cloth (1) in as far as possible.
• Tighten the lock (2).
• Swivel the swath cloth into transport position with the double-action control unit.
