10
KHF - SERIES A FAN COIL UNITS
INSTALLATION, OPERATION, AND MAINTENANCE MANUAL
TABLE 1: TELESCOPING BOTTOM PANEL WEIGHTS (LBS./KG)
DESCRIPTION
UNIT SIZE
02 03 04 06 08 09 10 12
Telescoping bottom panel 10 (5) 11 (5) 12 (5) 14 (6) 16 (7) 17 (8) 20 (9) 21 (10)

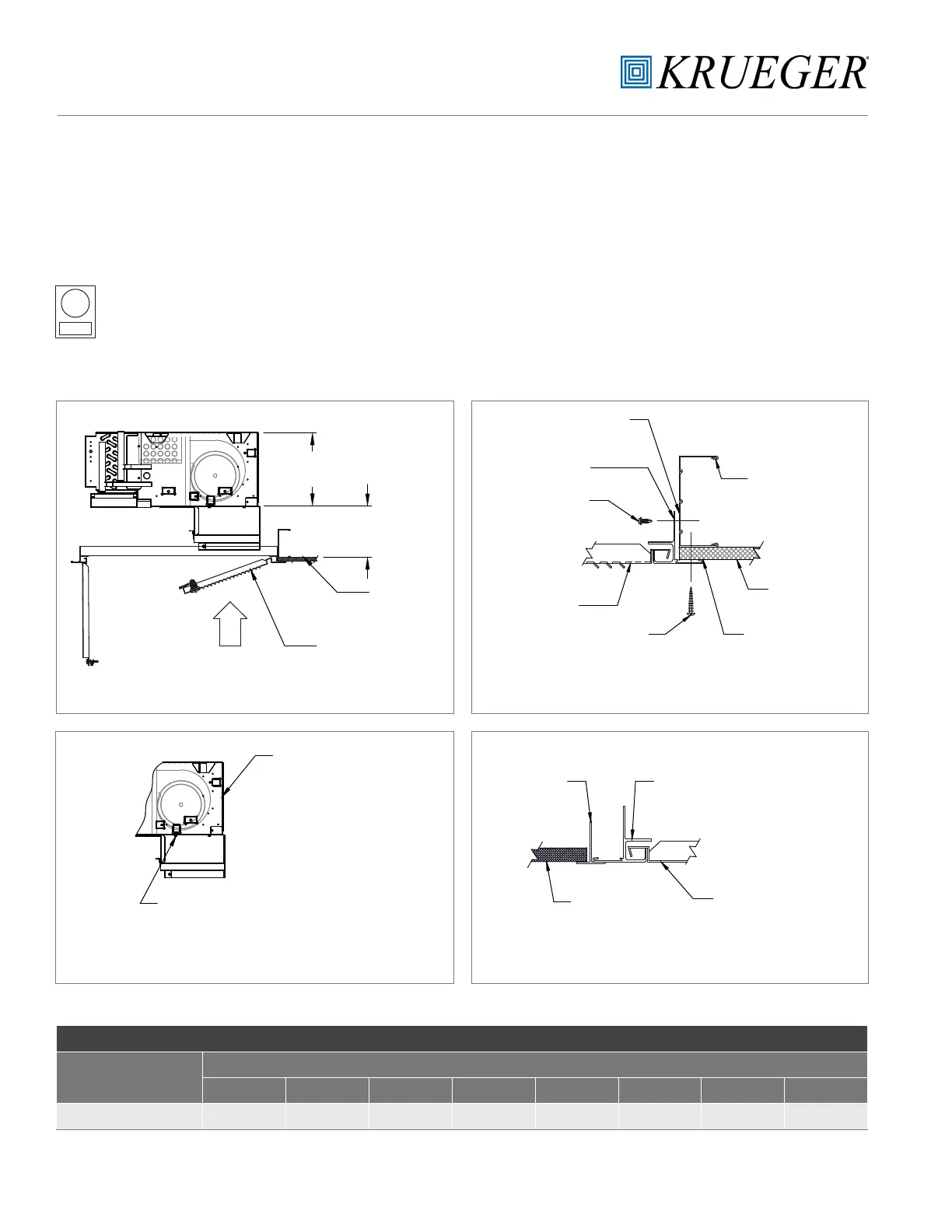

OPTIONAL TELESCOPING BOTTOM PANEL ASSEMBLY, TYPICAL INSTALLATION INSTRUCTIONS
TELESCOPING BOTTOM PANEL
The telescoping bottom panel allows for fully recessing the unit while permitting service access into the ceiling plenum. The
architectural ceiling panel is finished with a durable powder coat paint.
Portions of the inlet louver not directly below unit inlet may require covering in the field on applications where
infiltration of ceiling plenum air into space is undesired. Telescoping skirt and collar assembly must be field adjusted
to assure a proper fit between filter frame and louvered inlet panel assembly. Refer to assembly submittal drawings
for specific dimensions.
Drawings are subject to change without notice. Refer to www.krueger-hvac.com for current submittal drawings.
!
Note
SIDE VIEW
INLET COLLAR INSTALLATION
KHFP UNIT CHASSIS
SCREW THE TELESCOPING PANEL TO THE CHASSIS
(2 SCREWS BOTH SIDES)
SUSPENDED GRID/TILE CEILING SYSTEM
CEILING GRID
TEE-BAR
TELESCOPING BOTTOM
PANEL FRAME EXTRUSION
ACOUSTIC FIBRE
CEILING TILE
SOLID OR LOUVERED
BOTTOM PANEL
STUD/DRYWALL CEILING SYSTEM
METAL OR WOOD
CEILING STUD
SHIM AS REQUIRED
TELESCOPING BOTTOM
PANEL FRAME EXTRUSION
SOLID OR LOUVERED
BOTTOM PANEL
SHEET METAL OR WOOD
SCREW AS REQUIRED
SEE NOTES 4 & 6
SHEET METAL OR WOOD
SCREW AS REQUIRED
SEE NOTES 4 & 6
SHIM AS REQUIRED
DRYWALL CEILING
SIDE VIEW
TYPICAL INSTALLATION METHODS
10 1/2"
(264)
7” (178)
10 1/2” (267)
AIR
OPEN THIS PANEL FIRST
FINISHED
CEILING LINE
NOTE: Ceiling tee bar grid may not support telescoping bottom panel assembly. Bottom panel assembly may require independent support.
KHF HORIZONTAL FAN COIL
