13
KHF - SERIES A FAN COIL UNITS
INSTALLATION, OPERATION, AND MAINTENANCE MANUAL

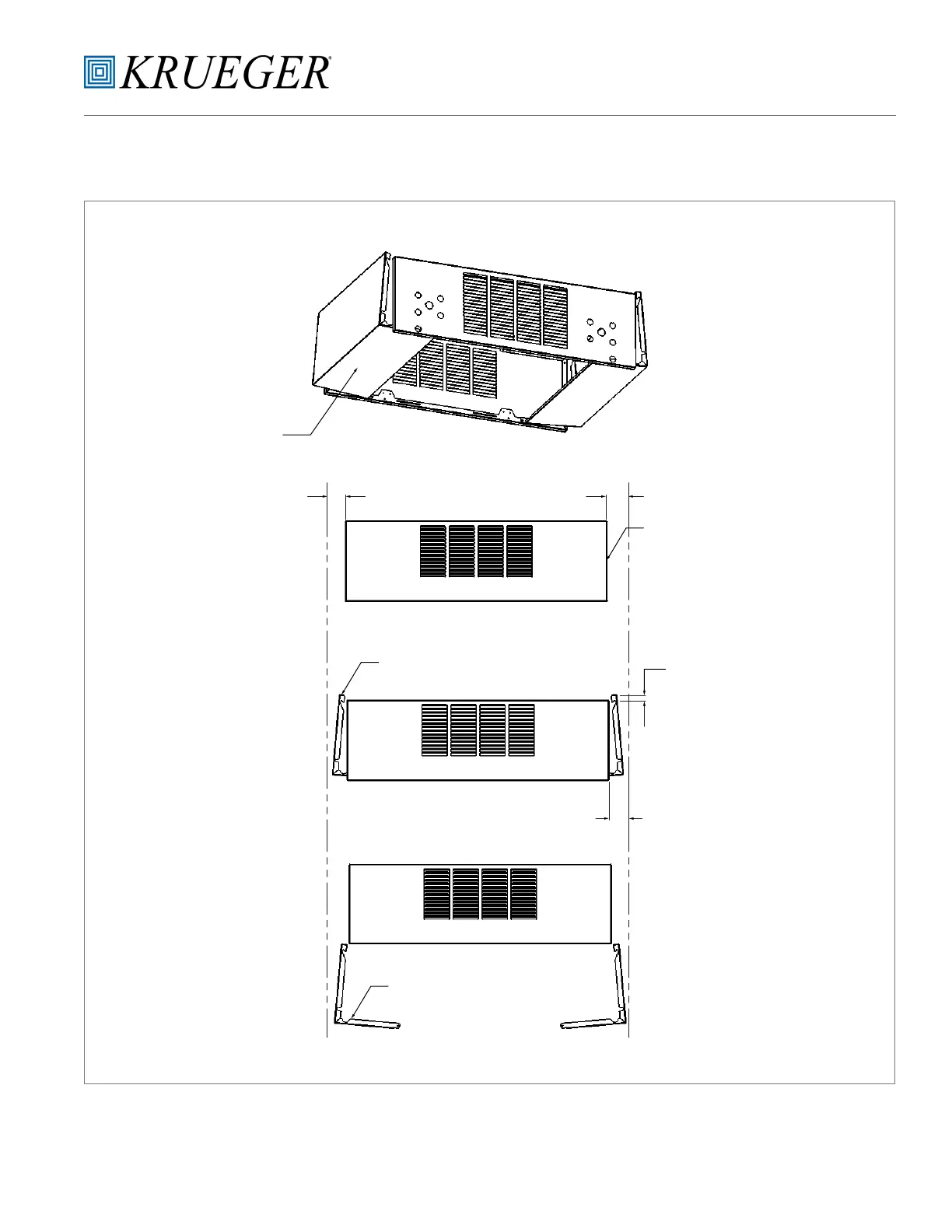

SERVICE AND CLEARANCE REQUIREMENTS: WIDTH RESTRICTED APPLICATION
CORNER PANELS SHOWN
LIFTED AND ROTATED 5°
DROP CORNER PANELS
STRAIGHT DOWN
UNIT
INSTALLED
HALF
OPENED
FULLY
OPENED
3" (76) MINIMUM REQUIRED
CLEARANCE BESIDE UNIT
(PANEL REMOVAL REQUIRED
FOR ELECTRICAL ACCESS)
1" (25) MINIMUM REQUIRED
CLEARANCE ABOVE UNIT
LIFT AND ROTATE CORNER PANEL
OFF OF PIVOT POINT
ABIDE BY APPLICABLE
CODES AND STANDARDS
REGUARDING ACCESS
FOR ELECTRICAL OR
PLUMBING COMPONENTS
3" (76) CLEARANCE BETWEEN
STRUCTURE AND UNIT
3" (76) CLEARANCE BETWEEN
STRUCTURE AND UNIT
HORIZONTAL, LOW PROFILE EXPOSED UNITS
