KHF - SERIES A FAN COIL UNITS
INSTALLATION, OPERATION, AND MAINTENANCE MANUAL

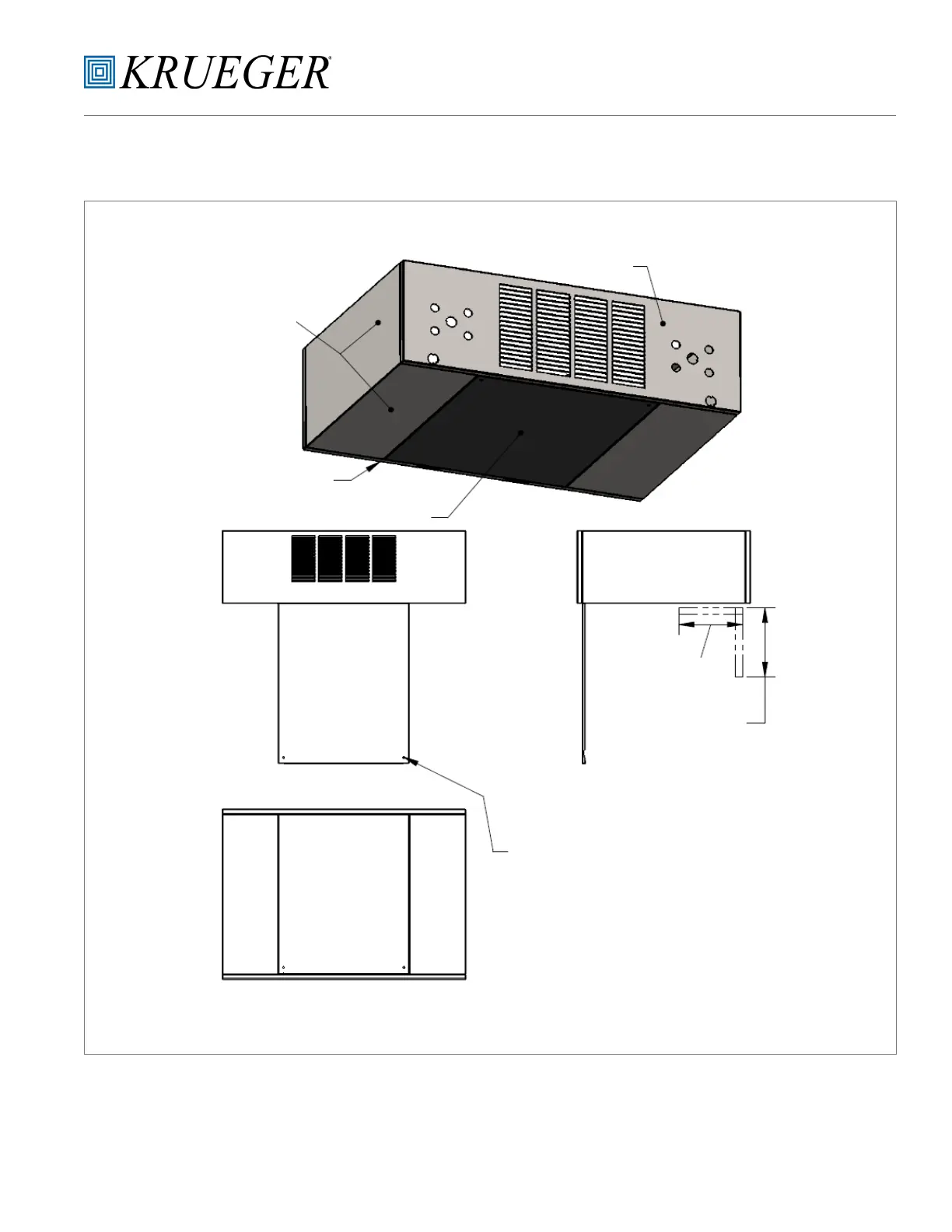

SERVICE AND CLEARANCE REQUIREMENTS
FRONT PANEL (STRUCTURAL)
CORNER PANEL
(REMOVABLE)
BOTTOM PANEL “TRAP DOOR” (REMOVABLE)
RIGHT VIEW
TRAP DOOR FULLY OPENED
FRONT VIEW
TRAP DOOR FULLY OPENED
BOTTOM VIEW
TRAP DOOR FULLY CLOSED
10.5” (267)
REAR RETURN
FILTER CLEARANCE
TRAP DOOR RETAINED BY 1/4 TURN HARDWARE
REMOVE TRAP DOOR TO ACCESS
- AIR FILTER
- BLOWER ACCESS PANEL
- ELECTRIC HEAT ACCESS PANEL
- CORNER PANEL MOUNTING HARDWARE
9.5” (241)
BOTTOM RETURN
FILTER CLEARANCE
BACK PANE
(STRUCTURAL)
HORIZONTAL, LOW PROFILE EXPOSED UNITS
