KHF - SERIES A FAN COIL UNITS
INSTALLATION, OPERATION, AND MAINTENANCE MANUAL

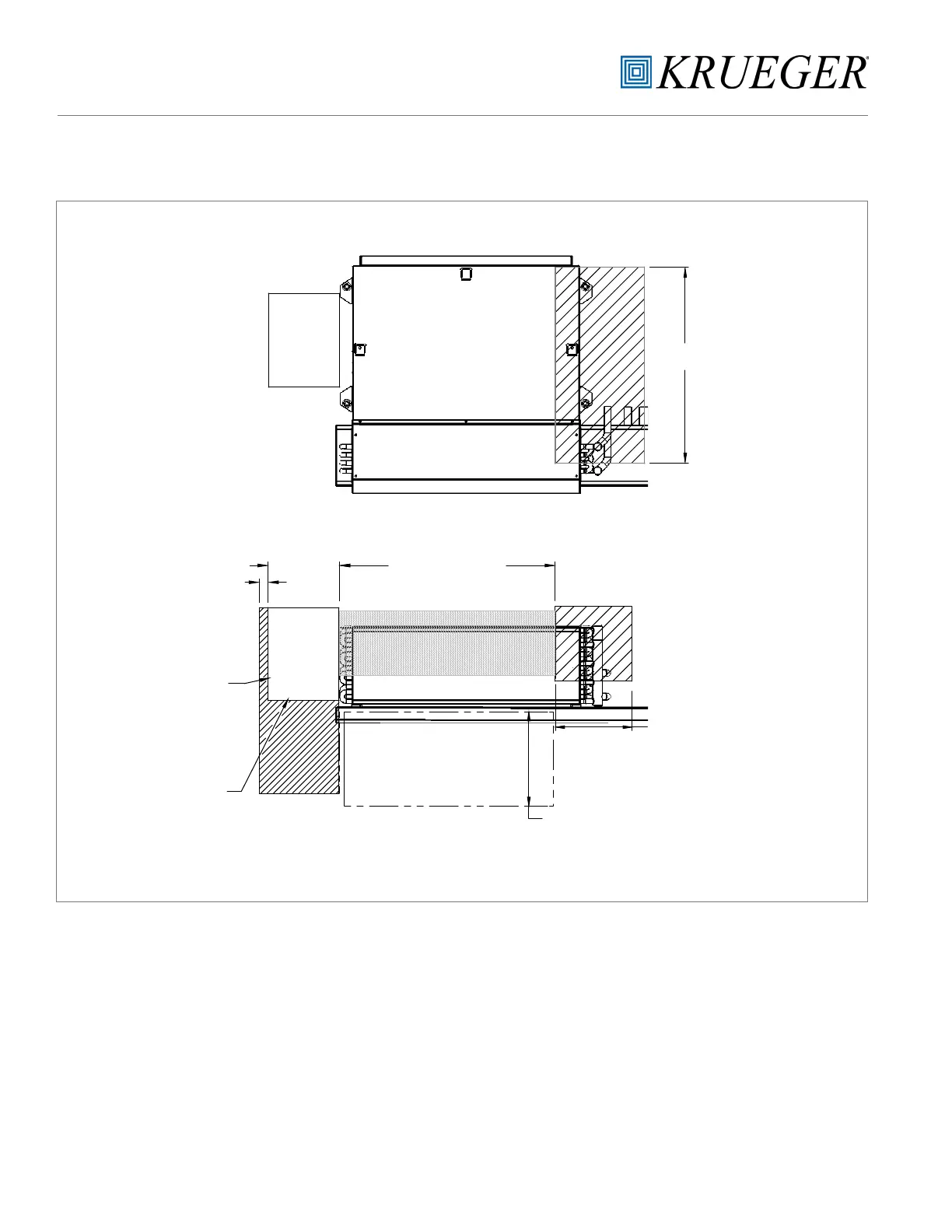

SERVICE AND CLEARANCE REQUIREMENTS: EXTERNAL SPACE REQUIREMENTS
NOTES:
1. All chilled water piping that projects beyond the condensate pan or the optional auxiliary drip pan must be field insulated by others.
2. Auxiliary drip pan shown above is optional, and is mounted on the outlet side of the drain pan.
3. Drain pan is installed with the outlet tube(s) on cooling coil connection end of coil on 4-pipe units with optional opposite end connection.
4. Dimensions shown on this drawing apply to standard CW and HW valve packages. Refer to the Piping Package Catalog for valve package code details.
Contact factory for details on valve packages using non-standard or customer furnished components.
5. Provide sufficient clearance to access electrical components and comply with all applicable codes and ordinances.
8 1/2" (216)
OPTIONAL AUXILIARY
DRIP PAN
SUPPLY AIR OPENING WIDTH
10 1/2" (267)
AIR FILTER CLEARANCE
FRONT VIEW
8" (204)
1" (25)
CONTROL
ENCLOSURE
SEE NOTE 5
OPTIONAL
SIDE ACCESS
22" (559)
TOP VIEW
HORIZONTAL, LOW PROFILE PLENUM AND FREE RETURN
