ELECTRICAL SYSTEM 15
103

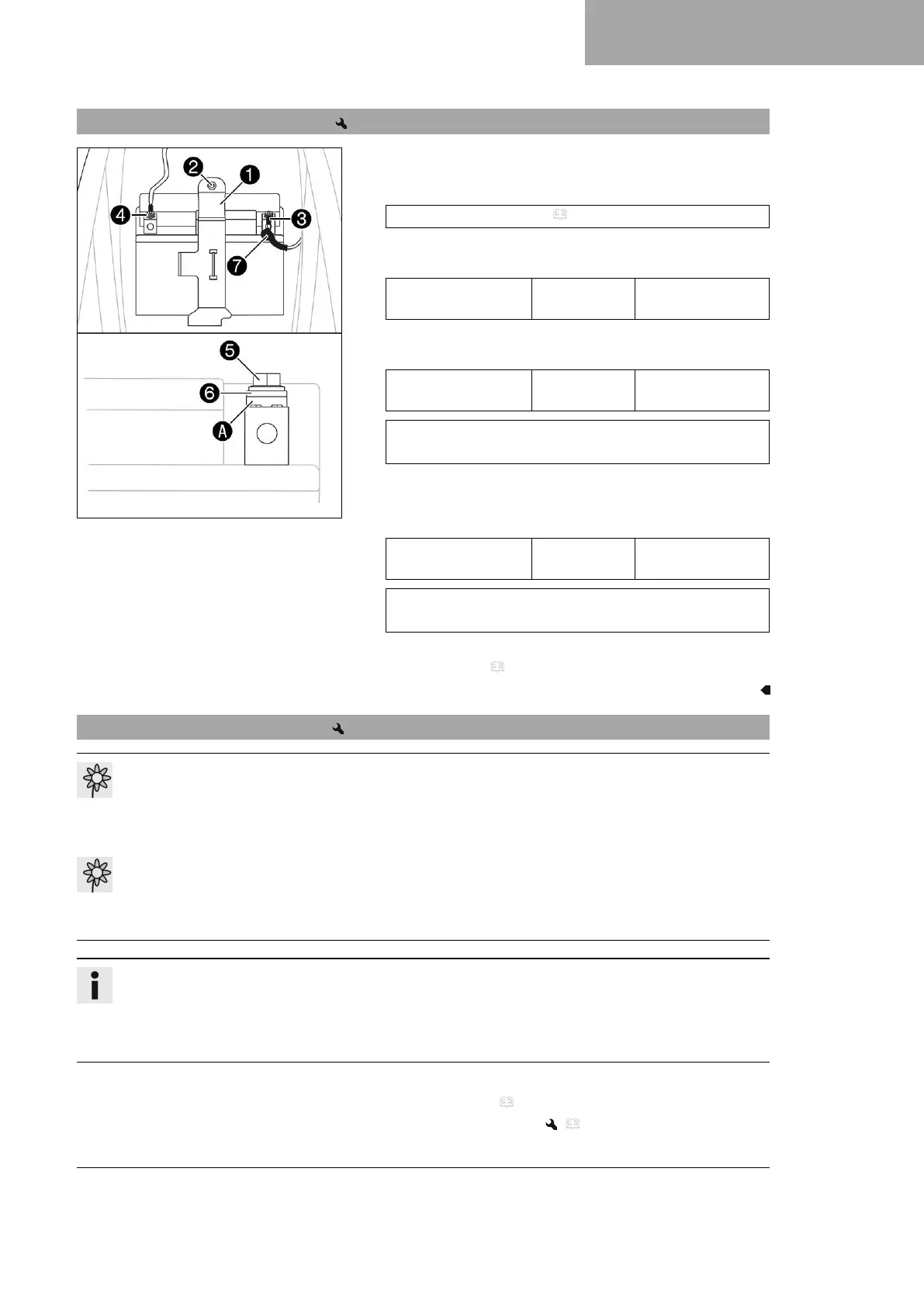

15.2 Installing the 12-V battery
H00386-10
Main work
– Insert the 12-V battery into the battery compartment with the
terminals facing forward and secure with holding bracket
1
.
12-V battery (YTX5L-BS) ( p. 140)
–
Mount and tighten screw
2
.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)
–
Connect positive cable
3
to the 12-V battery.
Guideline
Screw, battery termi-
nal
M5 2.5 Nm
(1.84 lbf ft)
Contact disk
A
must be mounted under screw
5
and
cable lug
6
with the claws toward the battery terminal.
–
Slide positive terminal cover
7
over the positive terminal.
–
Connect negative cable
4
to the 12-V battery.
Guideline
Screw, battery termi-
nal
M5 2.5 Nm
(1.84 lbf ft)
Contact disk
A
must be mounted under screw
5
and
cable lug
6
with the claws toward the battery terminal.
Finishing work
– Mount the seat. ( p. 66)
15.3 Charging the 12-V battery
Note
Environmental hazard 12 V batteries contain environmentally hazardous materials.
– Do not dispose of 12 V batteries as household waste.
– Dispose of 12 V batteries at a collection point for used batteries.
Note
Environmental hazard Hazardous substances cause environmental damage.
– Dispose of oils, grease, filters, fuel, cleaning agents, brake fluid, etc., correctly and in compliance with
the applicable regulations.
Info
Even if there is no load on the 12-V battery, it discharges each day.
The charging level and the method of charging are very important for the service life of the 12-V battery.
Rapid recharging with a high charging current shortens the service life of the battery.
If the 12-V battery is depleted by repeated starting, the 12-V battery must be charged immediately.
Preparatory work
– Remove the seat. ( p. 66)
– Remove the 12-V battery. ( p. 102)
