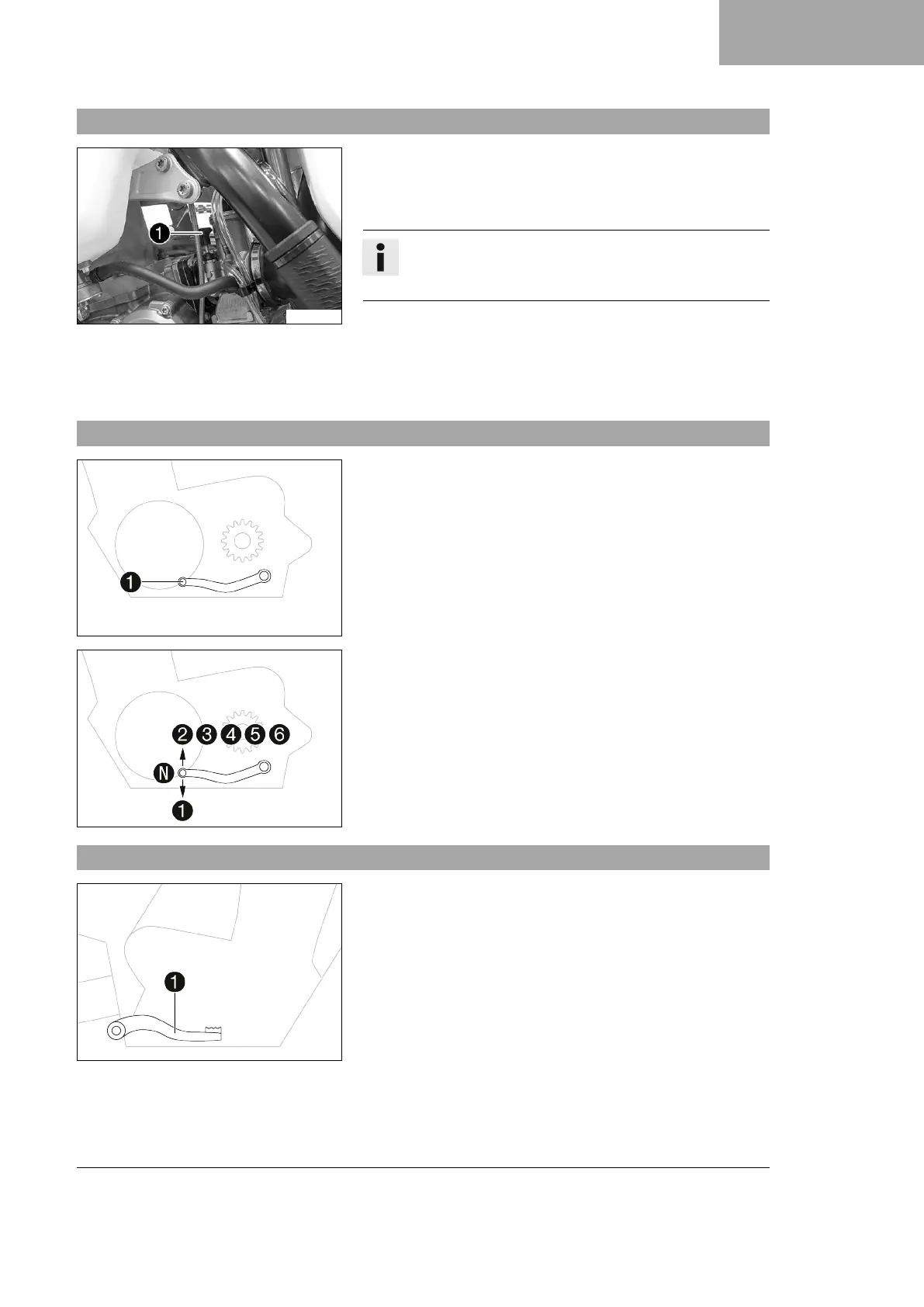

6.14 Choke
K01204-10
Choke
1
is fitted on the left side of the carburetor.
Activating the choke function frees a drill hole in the carburetor
through which the engine can draw extra fuel. This results in a
richer fuel-air mixture, which is needed for a cold start.
Info
If the engine is warm, the choke function must be deacti-
vated.
Possible states
• Choke function activated – The choke lever is pulled out to
the stop.
• Choke function deactivated – The choke lever is pushed in to
the stop.
6.15 Shift lever
401950-10
Shift lever
1
is mounted on the left side of the engine.
401950-11
The gear positions can be seen in the photograph.
The neutral or idle position is between the first and second gears.
6.16 Foot brake lever
401956-10
Foot brake lever
1
is located in front of the right footrest.
The foot brake lever is used to activate the rear brake.
