BRAKE SYSTEM 13
85
400257-10

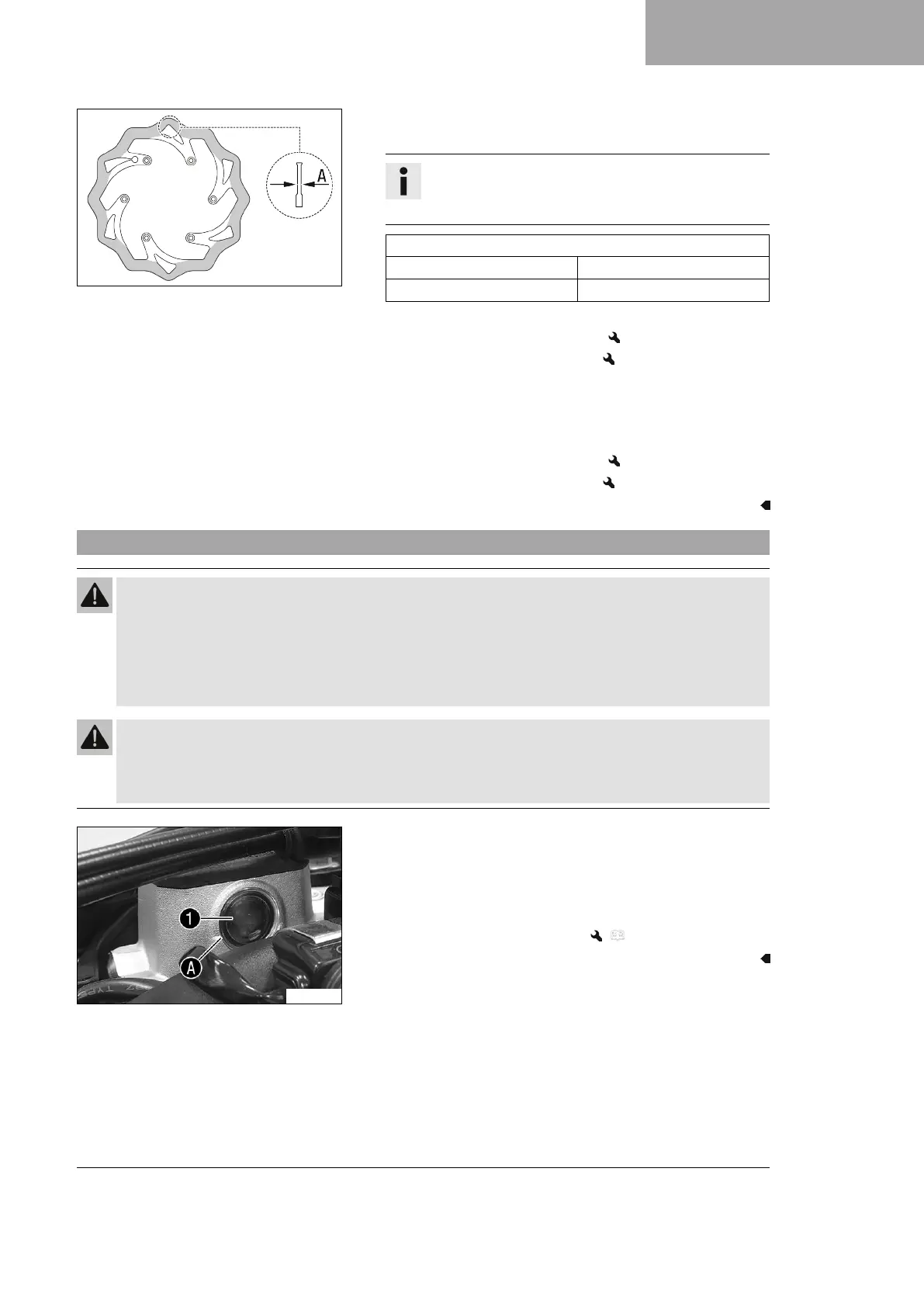

– Check the front and rear brake disc thickness at multiple
points for the dimension
A
.
Info
Wear reduces the thickness of the brake disc around
the contact surface of the brake linings.
Brake discs - wear limit
front 2.5 mm (0.098 in)
rear 3.5 mm (0.138 in)
» If the brake disc thickness is less than the specified value:
– Change the front brake disc.
– Change the rear brake disc.
– Check the front and rear brake discs for damage, cracking, and
deformation.
» If the brake disc exhibits damage, cracking, or deforma-
tion:
– Change the front brake disc.
– Change the rear brake disc.
13.4 Checking the front brake fluid level
Warning
Danger of accidents An insufficient brake fluid level will cause the brake system to fail.
If the brake fluid level drops below the specified marking or the specified value, the brake system is
leaking or the brake linings are worn down.
– Check the brake system and do not continue riding until the problem is eliminated. (Your authorized
KTM workshop will be glad to help.)
Warning
Danger of accidents Old brake fluid reduces the braking effect.
– Make sure that brake fluid for the front and rear brake is changed in accordance with the service
schedule. (Your authorized KTM workshop will be glad to help.)
S03618-10
– Move the brake fluid reservoir mounted on the handlebar to a
horizontal position.
–
Check the brake fluid level in level viewer
1
.
» If an air bubble is visible in upper range of the level
viewer
A
:
– Add the front brake fluid. ( p. 86)
