TUNING THE ENGINE 17
117
S03655-10

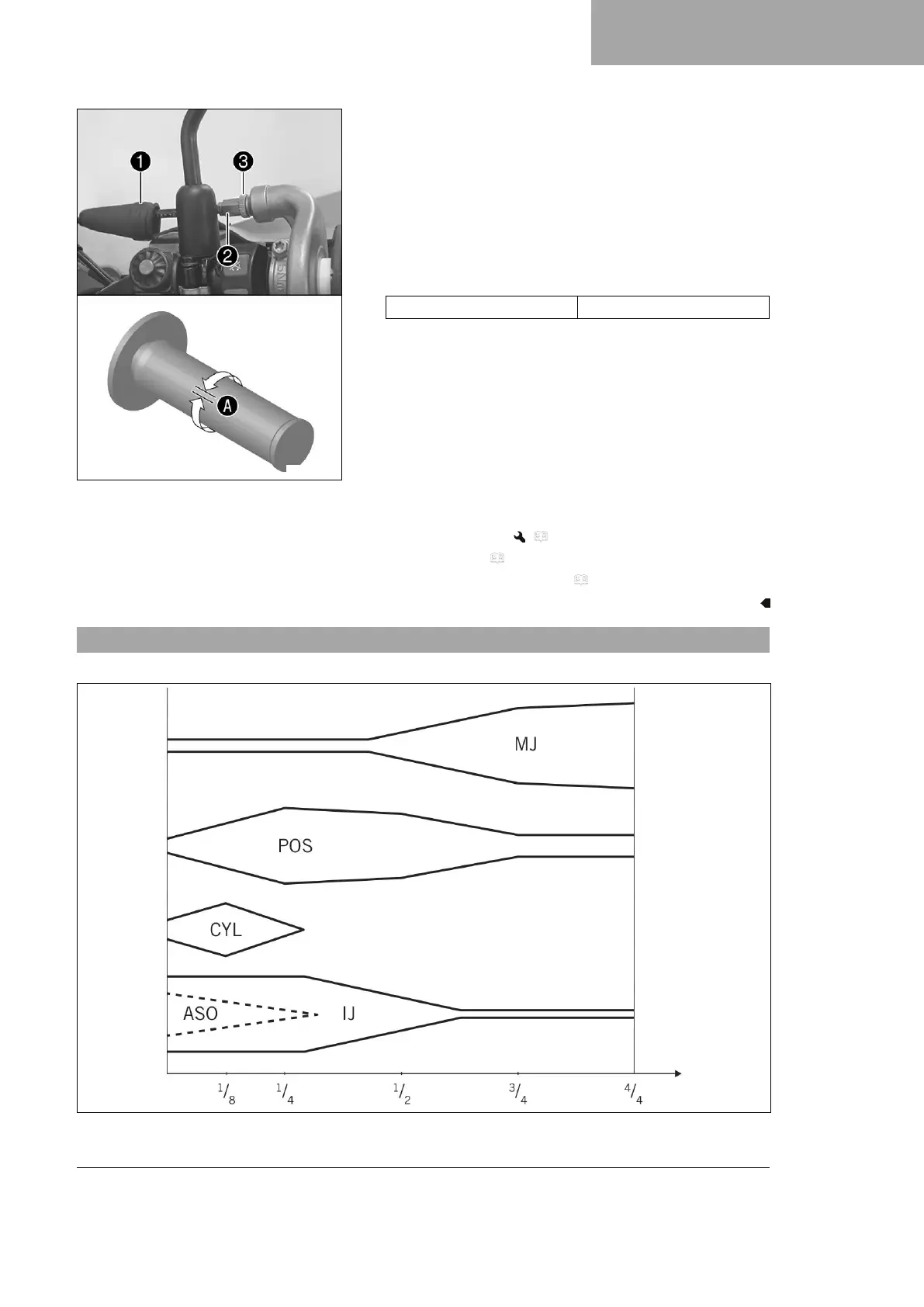

Main work
– Turn handlebar as far as possible to the right.
–
Push back sleeve
1
.
– Ensure that the throttle cable sleeve is pushed all the way into
barrel adjuster
2
.
–
Loosen nut
3
.
–
Turn barrel adjuster
2
so that there is play
A
in the throttle
cable at the throttle grip.
Guideline
Throttle cable play 3 … 5 mm (0.12 … 0.2 in)
–
Tighten nut
3
.
–
Slide on sleeve
1
.
Finishing work
– Check the throttle grip for smooth operation.
– Install the fuel tank. ( p. 72)
– Mount the seat. ( p. 66)
– Check the throttle cable play. ( p. 116)
17.3 Carburetor tuning
Effects of carburetor tuning
H01400-01
The different carburetor components must be tuned both to one another and for the use intended.
