13 BRAKE SYSTEM 116

L02135-11

–

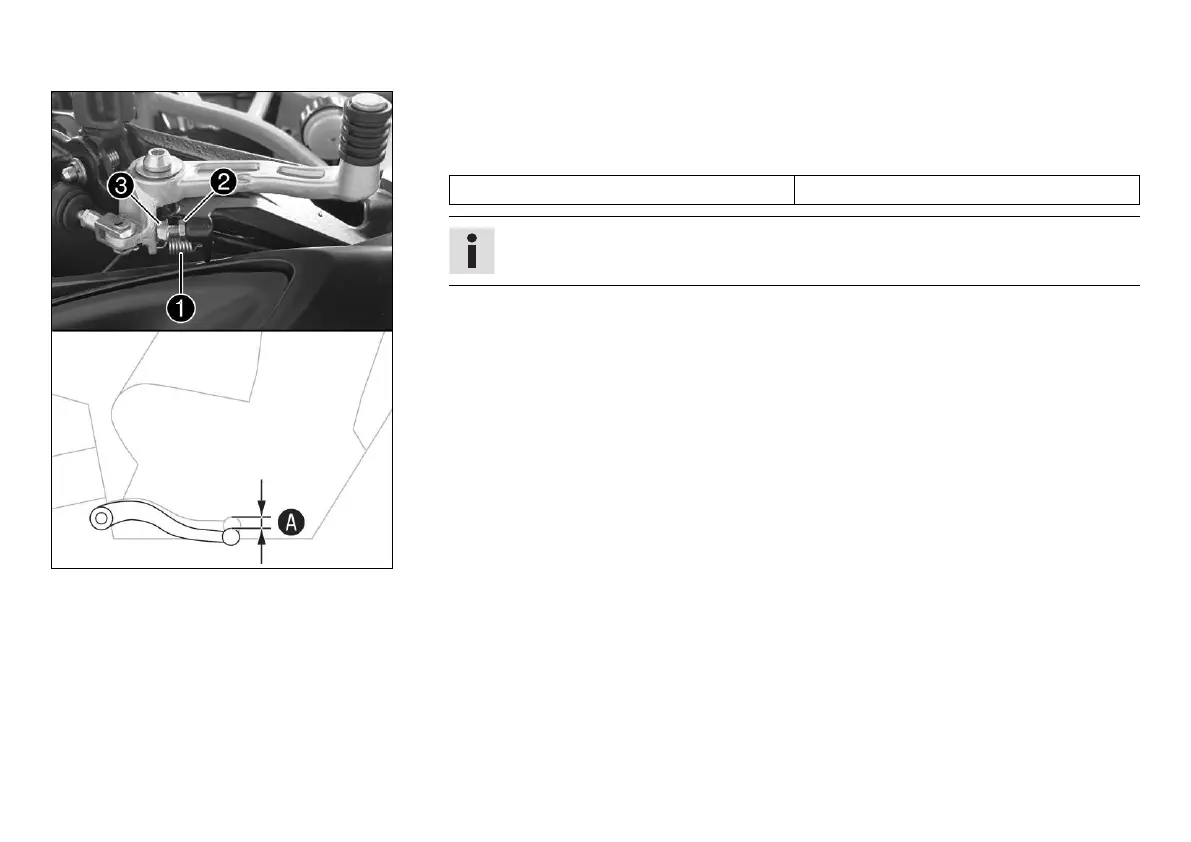

Disconnect spring



–

Release nut



and use screw



to adjust the specified free travel



Guideline

Free travel at foot brake lever 3… 5 mm (0.12… 0.2 in)

Info

The range of adjustment is limited.

–

Hold screw



and tighten nut



–

Attach spring


