KTM RC 200 User Manual

15 ELECTRICAL SYSTEM 144
L02165-10

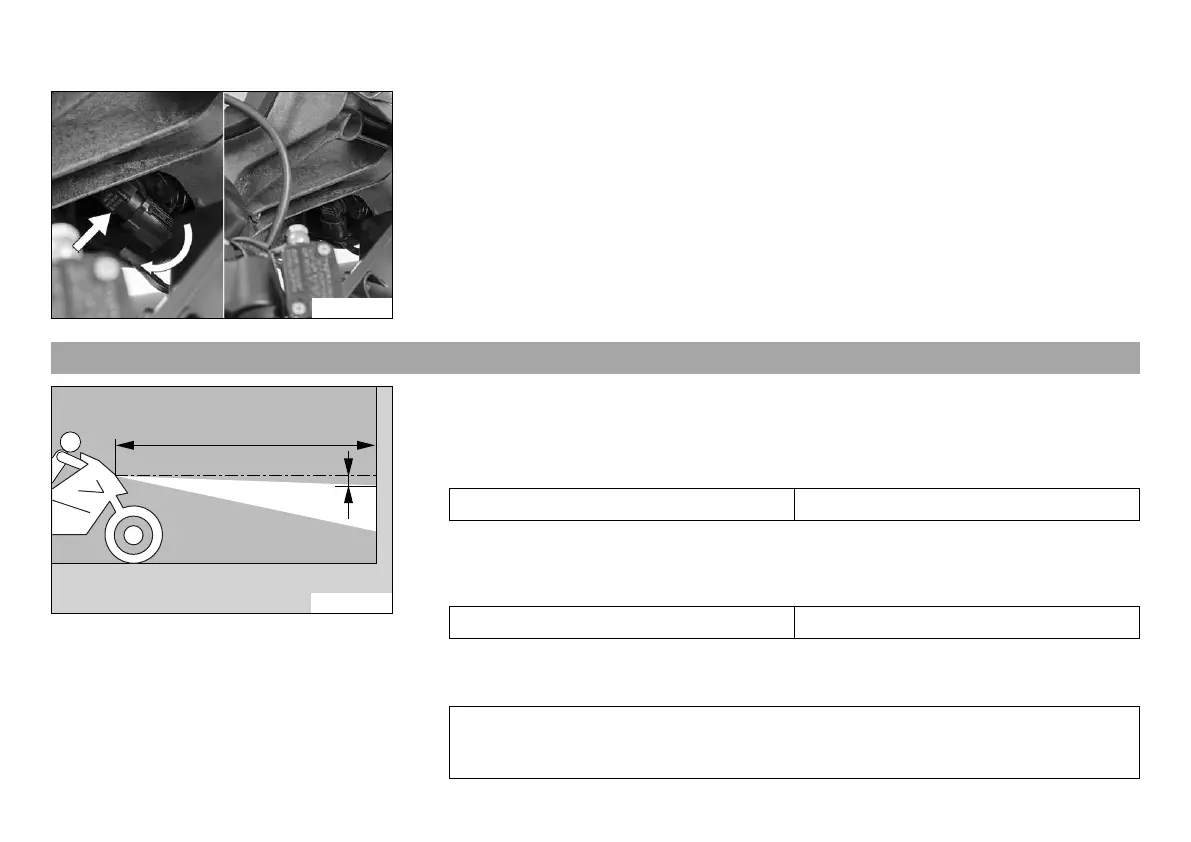

– Position the socket with the high beam bulb in the headlight housing.
– Turn the socket clockwise.
– Check that the lighting is functioning properly.
15.8 Checking the low beam headlight adjustment
0
0
AA
0
0
BB
400726-10
– Position the vehicle upright on a horizontal surface in front of a light wall and make a
mark at the height of the center of the low beam headlight.
–
Make another mark at a distance

under the first mark.
Guideline
Distance

5 cm (2 in)
–
Position the vehicle perpendicular to the wall at a distance

from the wall and switch
on the low beam.
Guideline
Distance

5 m (16 ft)
– The rider, with luggage and passenger if applicable, now mounts the motorcycle.
– Check the low beam headlight adjustment.
The light-dark boundary must lie exactly on the lower mark when the motorcycle is
ready to operate with the rider mounted along with any luggage and a passenger if
applicable.

KTM RC 200 Specifications

General

Displacement	199.5 cc
Transmission	6-speed
Fuel System	Electronic Fuel Injection
Rear Suspension	WP APEX Monoshock
Bore x Stroke	72 mm x 49 mm
Compression Ratio	11.5:1
Max Power	25 PS @ 10000 rpm
Max Torque	19.2 Nm @ 8000 rpm
Front Brake	300 mm disc
Rear Brake	230 mm disc
Fuel Tank Capacity	13.7 liters
Kerb Weight	160 kg
Front Suspension	WP APEX 43 mm Upside Down
ABS	Dual Channel
Tyre Front	110/70-17
Tyre Rear	150/60-R17
Ground Clearance	157 mm
Engine Type	Single Cylinder, Liquid Cooled
