KTM RC 200 User Manual

13 BRAKE SYSTEM 115
L02135-10
–
Disconnect spring

.

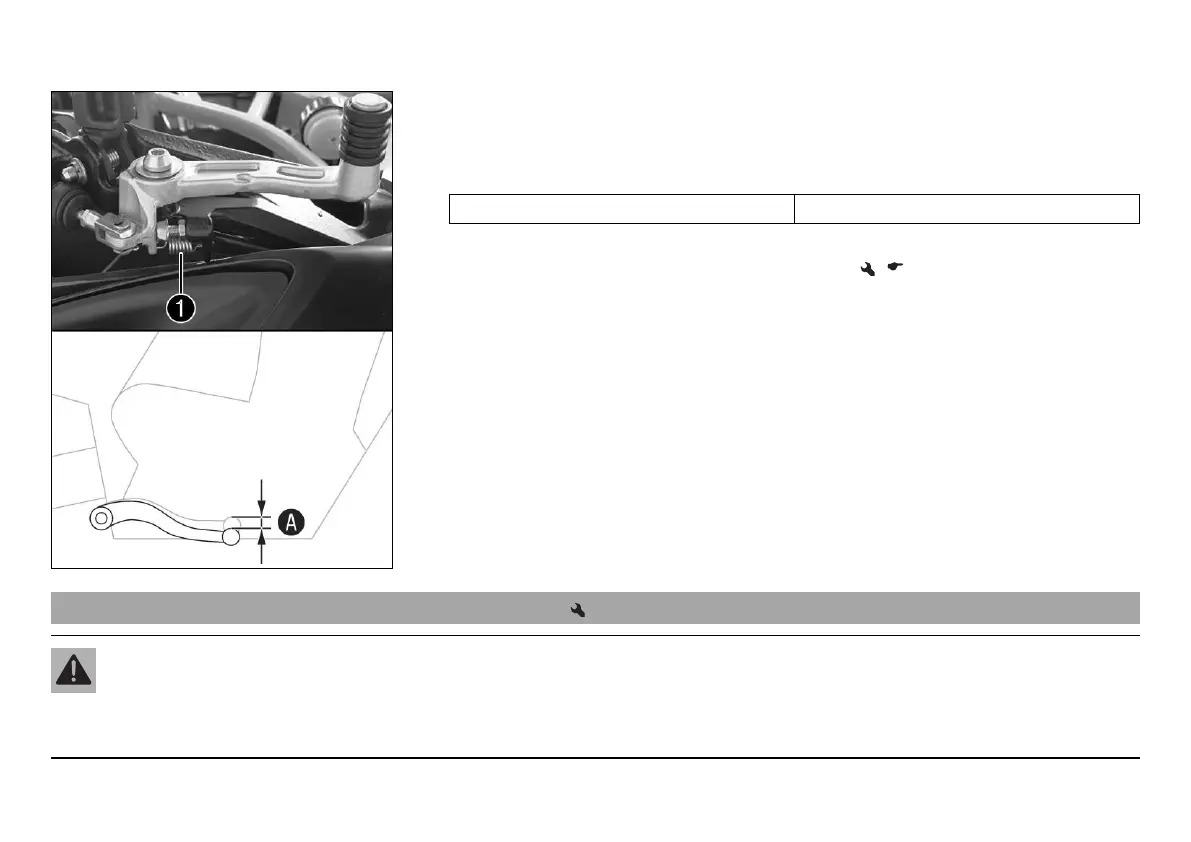

– Move the foot brake lever back and forth between the end stop and the contact to the
foot brake cylinder piston and check free travel

.
Guideline
Free travel at foot brake lever 3… 5 mm (0.12… 0.2 in)
» If the free travel does not meet specifications:
– Adjust the free travel of the foot brake lever. ( p. 115)
–
Reconnect spring

.
13.10 Adjusting the free travel of the foot brake lever
Warning
Danger of accidents Brake system failure.
– If there is no free travel on the foot brake lever, pressure builds up on the rear brake circuit. The rear brake can fail due to over-
heating. Adjust the free travel on foot brake lever according to specifications.

KTM RC 200 Specifications

General

Displacement	199.5 cc
Transmission	6-speed
Fuel System	Electronic Fuel Injection
Rear Suspension	WP APEX Monoshock
Bore x Stroke	72 mm x 49 mm
Compression Ratio	11.5:1
Max Power	25 PS @ 10000 rpm
Max Torque	19.2 Nm @ 8000 rpm
Front Brake	300 mm disc
Rear Brake	230 mm disc
Fuel Tank Capacity	13.7 liters
Kerb Weight	160 kg
Front Suspension	WP APEX 43 mm Upside Down
ABS	Dual Channel
Tyre Front	110/70-17
Tyre Rear	150/60-R17
Ground Clearance	157 mm
Engine Type	Single Cylinder, Liquid Cooled
