KTM RC 200 User Manual

11 TUNING THE CHASSIS 76

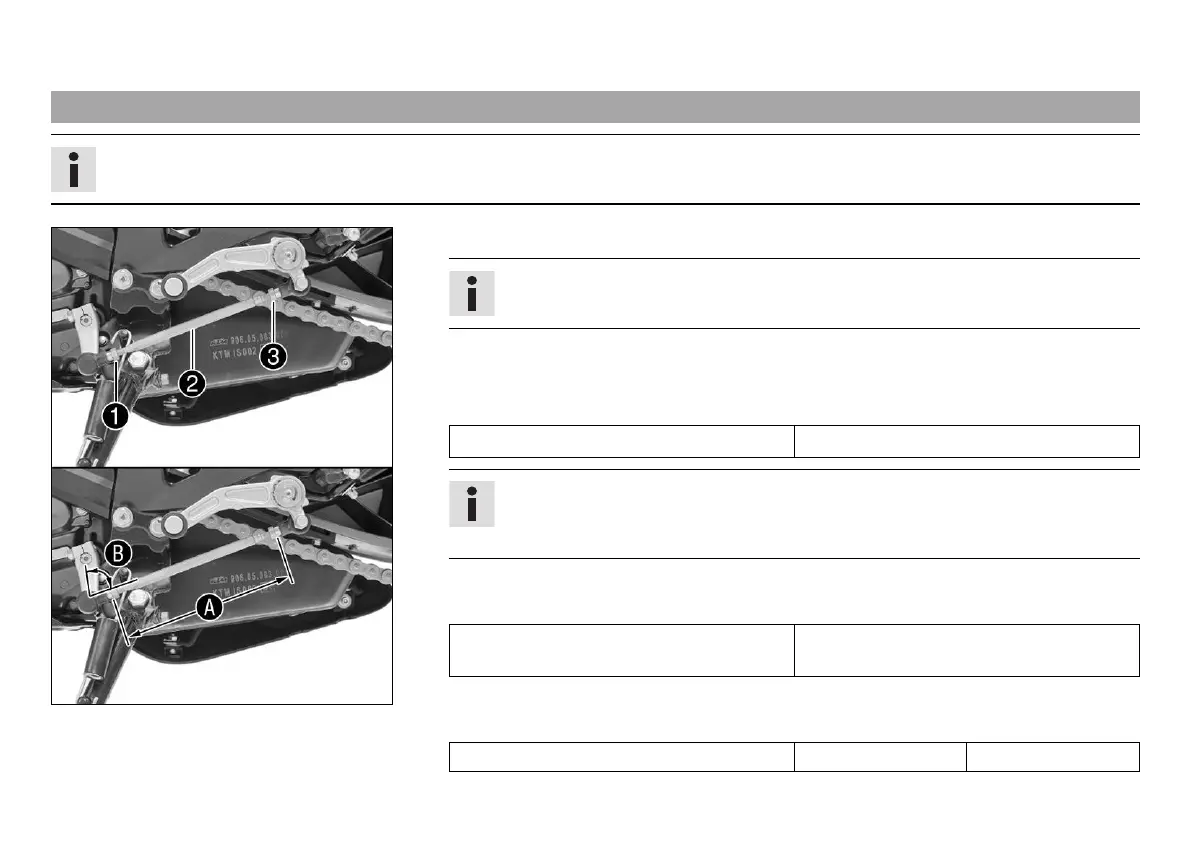

11.2 Adjusting the shift lever
Info
The adjustment range of the shift lever is limited.
L02125-11
–
Loosen nut

, holding the threaded rod

.
Info
Nut

has a left-handed thread.
–
Loosen nut

, holding the threaded rod

.
–
Adjust the shift lever by turning shift rod

.
Guideline
Shift rod adjustment range

150… 162 mm (5.91… 6.38 in)
Info
Make the same adjustments on both sides.
At least five screw threads must be screwed into the seating.
–
Check adjusting angle

.
Guideline
Adjusting angle

shift rod - linkage -
shift lever
75°
–
Tighten nut

, holding the threaded rod

.
Guideline
Nut, shift rod M6 10 Nm (7.4 lbf ft)
