15 ELECTRICAL SYSTEM 136
15.4 Changing the ABS fuses (RC 125)
Warning
Fire hazardThe electrical system can be overloaded if the wrong fuses are used.
Use only fuses with the prescribed amperage. Never bypass or repair fuses.
Info
Two fuses for the ABS are located under the protective cap next to the negative terminal of the battery. These fuses protect the
return pump and the hydraulic unit of the ABS. The third fuse, which protects the ABS control unit, is located in the fuse box.
Preparatory work
Switch off all power consumers and the engine.
Remove the front rider's seat. ( p. 83)
Remove the battery cover. ( p. 94)

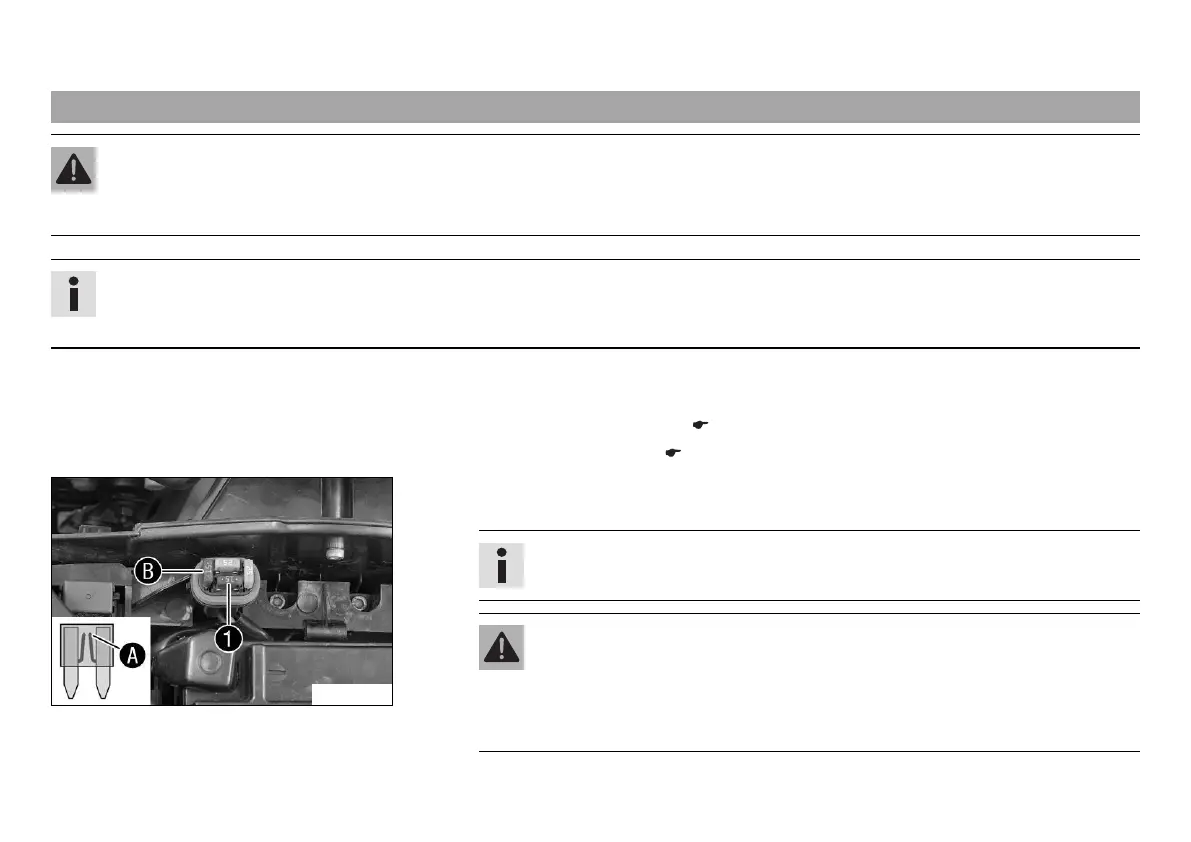

L02158-10
To change the fuse of the ABS hydraulic unit:
Take off the protection cap and remove fuse
.
Info
A defective fuse is indicated by a burned-out fuse wire
.
Warning
Fire hazardThe electrical system can be overloaded if the wrong fuses are
used.
Use only fuses with the prescribed amperage. Never bypass or repair
fuses.
Use spare fuses with the correct rating only.
