12 SERVICE WORK ON THE CHASSIS 97

G00976-12

–

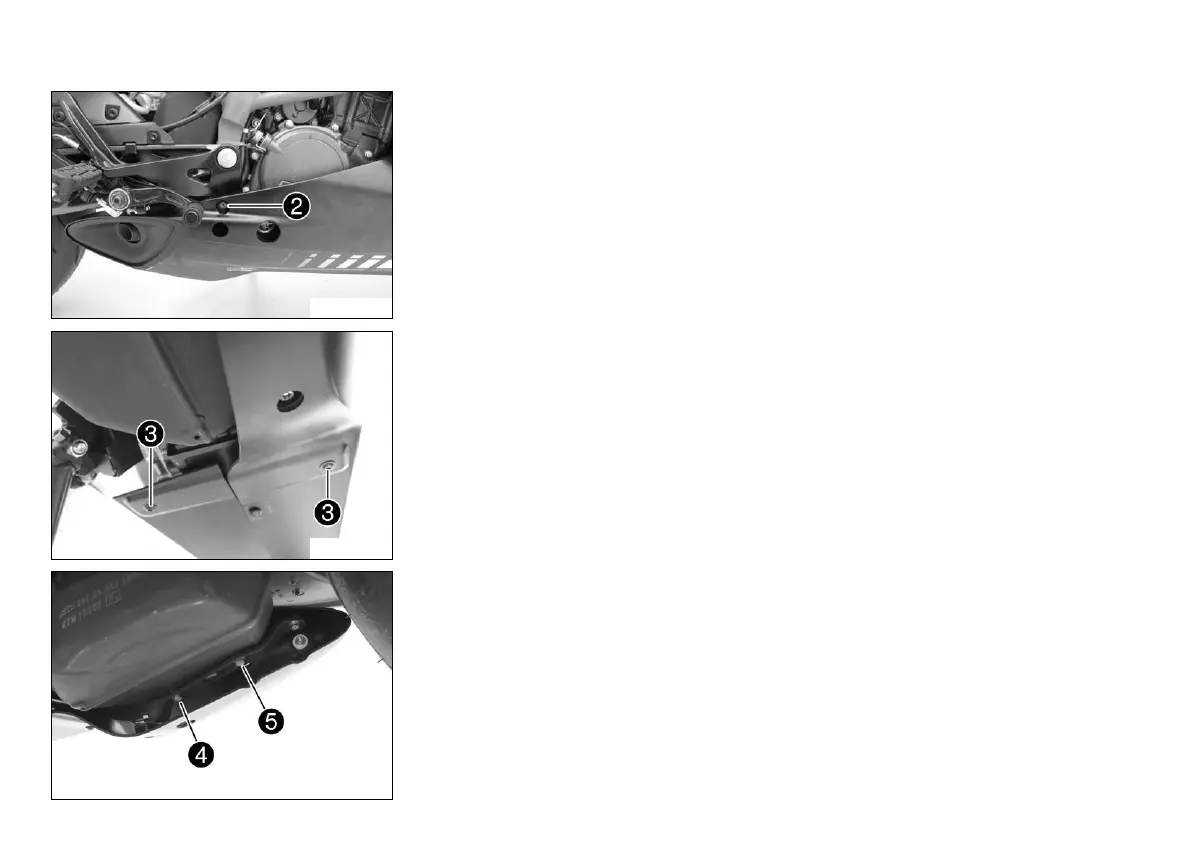

Remove screw



.

G00977-12

–

Remove screws



.

G01721-13

–

Remove screw



.

–

Remove screw



.

– Take off the front spoiler.
