KTM RC 390 User Manual

13 BRAKE SYSTEM 102
13.1 Antilock Braking System (ABS)
402052-10

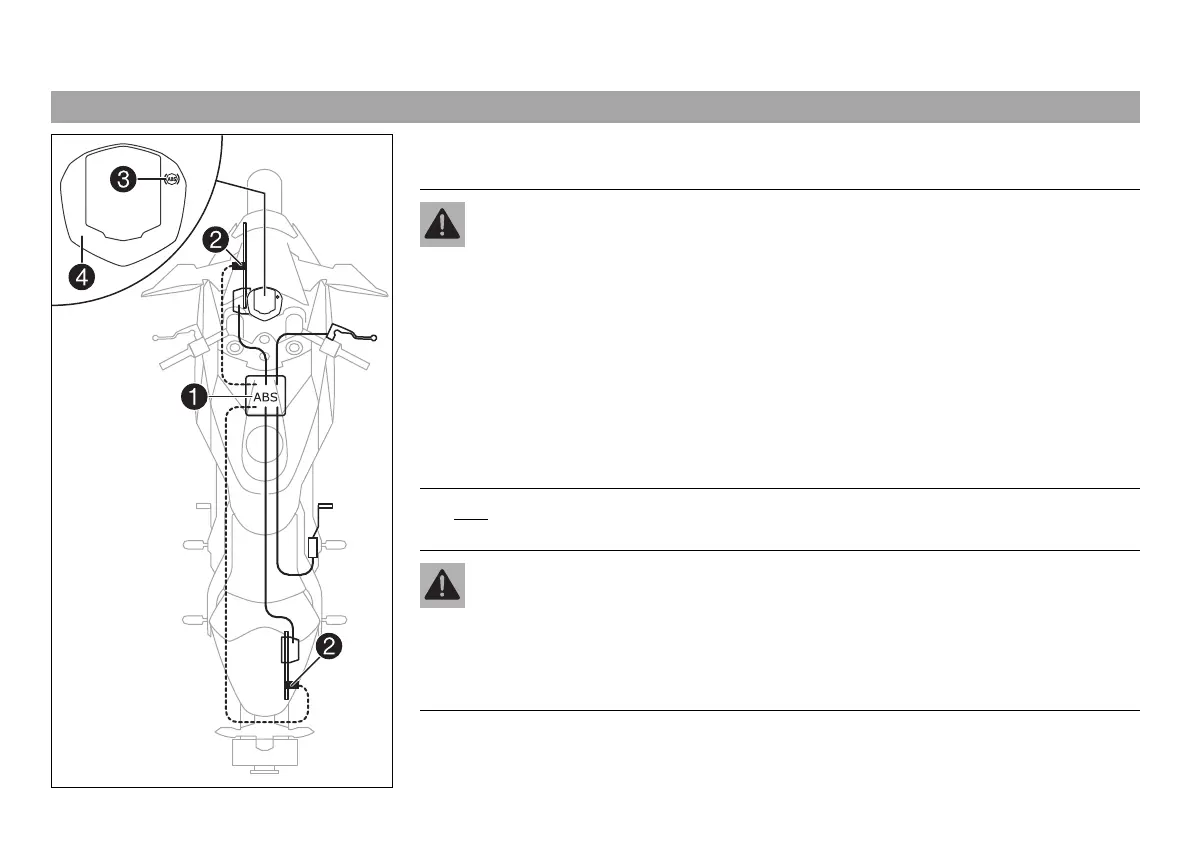

The ABS unit

, which consists of a hydraulic unit, ABS control unit, and return pump, is
installed under the seat. A wheel speed sensor

is located at the front and rear wheels.
Warning
Danger of accidents Changes to the vehicle impair the function of the ABS.
– Only allow the rear wheel to spin with the front brake applied if the ABS is
switched off (burn out).
– Do not make any changes to the suspension travel.
– Only use spare parts on the brake system which have been approved and recom-
mended by KTM.
– Only use tires/wheels approved by KTM with the corresponding speed index.
– Maintain the specified tire air pressure.
– Service work and repairs must be performed professionally. (Your authorized
KTM workshop will be glad to help.)
The ABS is a safety system that prevents locking of the wheels when driving straight ahead
without the influence of lateral forces.
Warning
Danger of accidents Vehicle rollover
– It is not always possible to prevent vehicle rollover in extreme riding situations
(e. g. luggage loaded with a high center of gravity, varying road surfaces, steep
descents, full braking without disengaging the gear). Adapt your riding style to
the road conditions and your driving ability.
The ABS operates with two independent brake circuits (front and rear brakes). During nor-
mal operation, the brake system operates like a conventional brake system without ABS.
When the ABS control unit detects a locking tendency in a wheel, ABS begins regulating

KTM RC 390 Specifications

General

Displacement	373.2 cc
Max Torque	37 Nm @ 7000 rpm
Transmission	6-speed
Cooling System	Liquid Cooled
Front Suspension	WP APEX 43
Rear Suspension	WP APEX Monoshock
Rear Brake	230 mm disc, single-piston floating caliper
Fuel Tank Capacity	13.7 liters
Seat Height	824 mm
Bore x Stroke	89 mm x 60 mm
Compression Ratio	12.6:1
Frame	Steel Trellis Frame, Powder Coated
Engine Type	Single-cylinder, 4-stroke
Max Power	43.5 PS @ 9000 rpm
Fuel System	Electronic Fuel Injection
Front Brake	320 mm disc, 4-piston radial caliper
ABS	Dual Channel ABS
Dry Weight	172 kg
Front Tire	110/70 R17
Rear Tire	150/60 R17
Ground Clearance	158 mm
