KTM RC 390 User Manual

15 ELECTRICAL SYSTEM 130

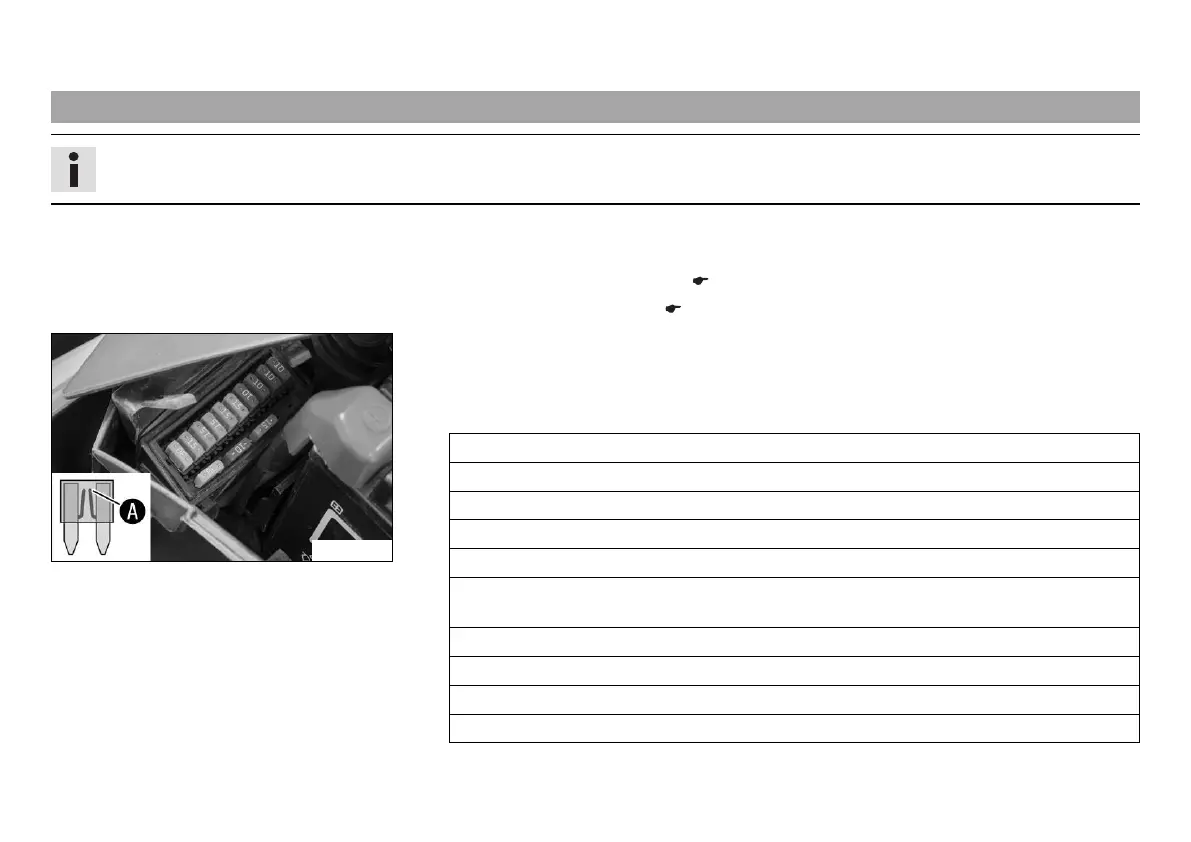

15.5 Changing the fuses of individual power consumers
Info
The fuse box with the main fuse and fuses of the individual power consumers is located next to the positive terminal of the battery.
Preparatory work
– Switch off all power consumers and switch off the engine.
– Remove the front rider's seat. ( p. 81)
– Remove the battery cover. ( p. 91)
L02275-11
Main work
– Open fuse box cover.
– Remove the defective fuse.
Guideline
Fuse 1 - 30 A - main fuse
Fuse 2 - 15 A - combination instrument, alarm system (optional)
Fuse 3 - 15 A - fuel pump, power relay
Fuse 4 - 15 A - ignition coil
Fuse 5 - 15 A - radiator fan
Fuse 6 - 15 A - horn, brake light, turn signal, high beam, low beam, parking light, tail
light, license plate lamp
Fuse 7 - 10 A - combination instrument, control unit
Fuse 8 - 10 A - ABS control unit
Fuse 9 - 10 A - auxiliary equipment
Fuse 10 - 10 A - auxiliary equipment

KTM RC 390 Specifications

General

Displacement	373.2 cc
Max Torque	37 Nm @ 7000 rpm
Transmission	6-speed
Cooling System	Liquid Cooled
Front Suspension	WP APEX 43
Rear Suspension	WP APEX Monoshock
Rear Brake	230 mm disc, single-piston floating caliper
Fuel Tank Capacity	13.7 liters
Seat Height	824 mm
Bore x Stroke	89 mm x 60 mm
Compression Ratio	12.6:1
Frame	Steel Trellis Frame, Powder Coated
Engine Type	Single-cylinder, 4-stroke
Max Power	43.5 PS @ 9000 rpm
Fuel System	Electronic Fuel Injection
Front Brake	320 mm disc, 4-piston radial caliper
ABS	Dual Channel ABS
Dry Weight	172 kg
Front Tire	110/70 R17
Rear Tire	150/60 R17
Ground Clearance	158 mm
