15 ELECTRICAL SYSTEM 129
Fuse (75011088015) ( p. 177)
Tip
Replace spare fuse
in the fuse box so that it is available if needed.
Mount the protection cap.
L02158-11

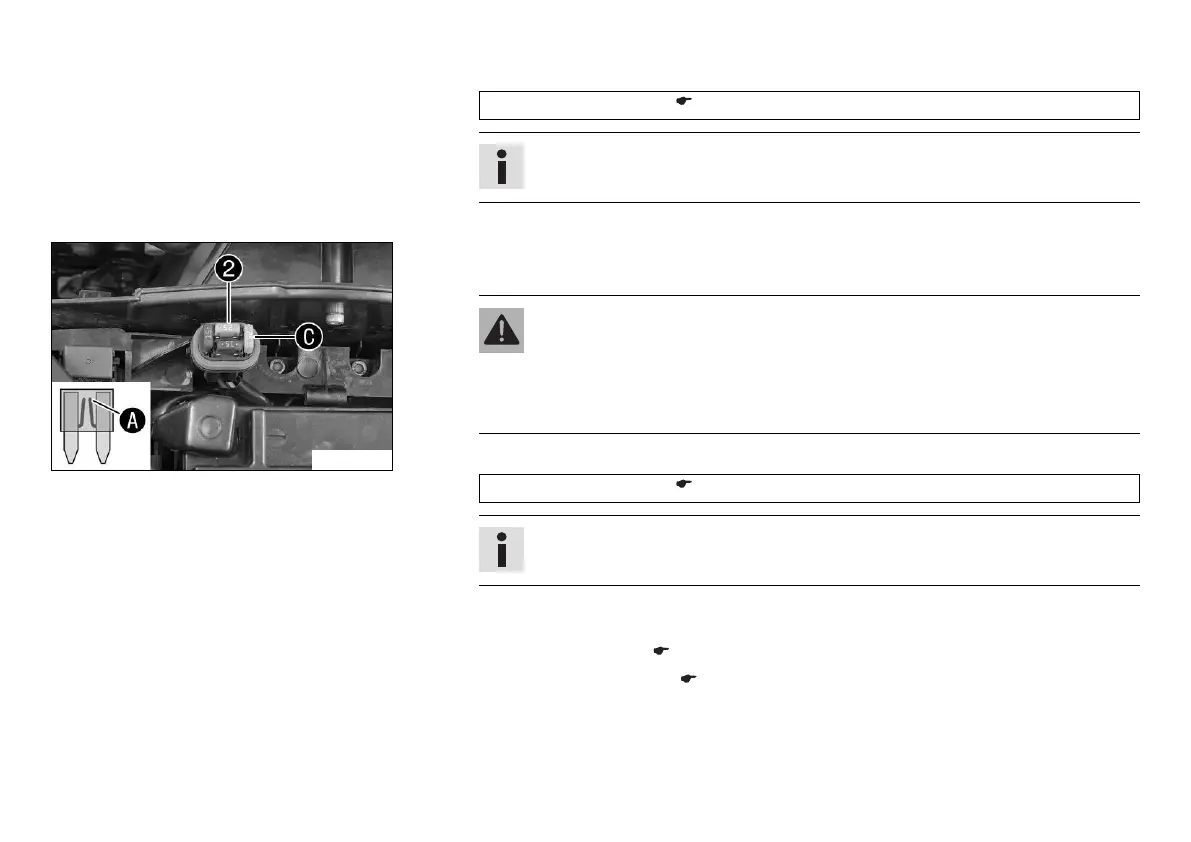

To change the fuse of the ABS return pump:
Take off the protection cap and remove fuse
.
Warning
Fire hazardThe electrical system can be overloaded if the wrong fuses are
used.
Use only fuses with the prescribed amperage. Never bypass or repair
fuses.
Use spare fuses with the correct rating only.
Fuse (90111088025) ( p. 177)
Tip
Replace spare fuse
in the fuse box so that it is available if needed.
Mount the protection cap.
Finishing work
Mount the battery cover. ( p. 93)
Mount the front rider's seat. ( p. 82)
