KTM RC 390 User Manual

12 SERVICE WORK ON THE CHASSIS 83

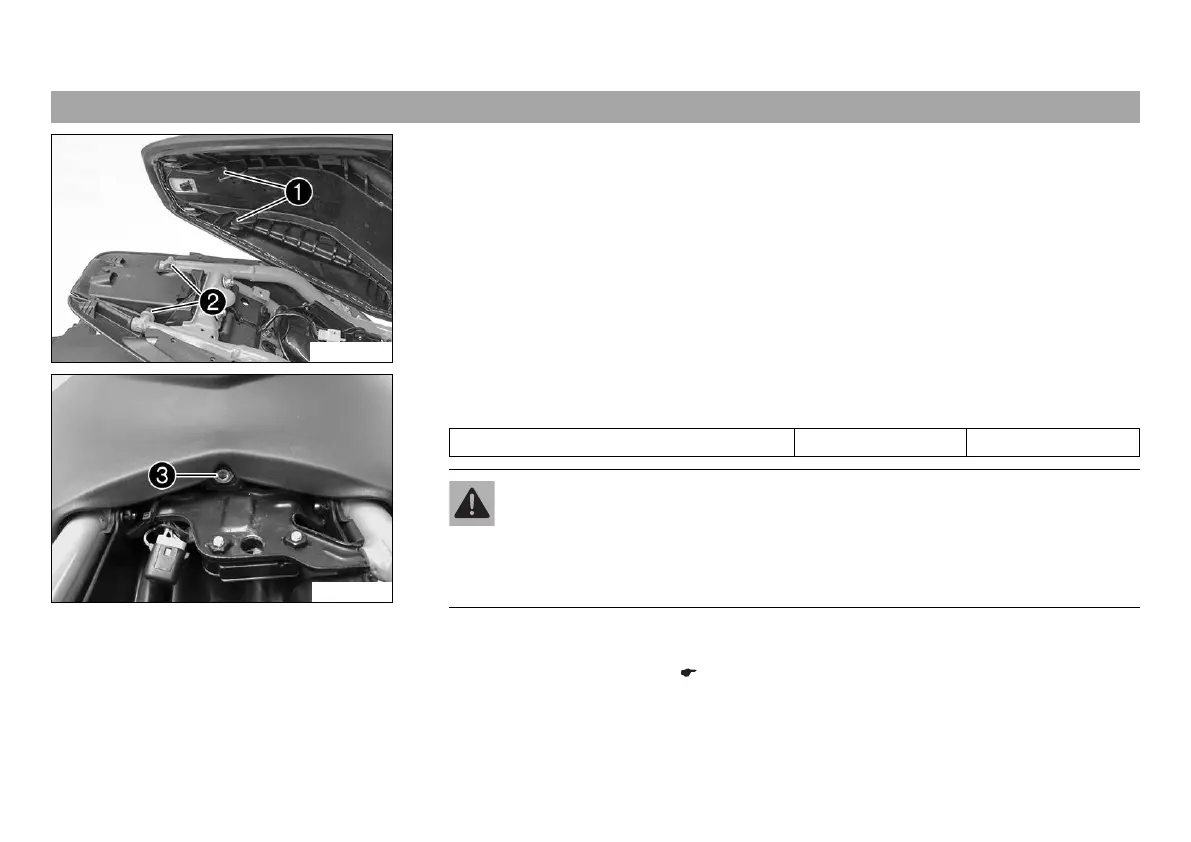

12.8 Mounting the passenger seat
K00021-10
Main work
–
Attach hook

into bracket

.
– Lower the passenger seat and push back.
L02191-11
–
Mount and tighten screw

with the washer.
Guideline
Screw, passenger seat M6 7 Nm (5.2 lbf ft)
Warning
Danger of accidents The passenger seat can come loose from the anchoring if it
is not mounted correctly.
– After mounting the passenger seat, check that it is locked correctly by
pulling up.
– Check that the passenger seat is correctly mounted.
Finishing work
– Mount the front rider's seat. ( p. 82)

KTM RC 390 Specifications

General

Displacement	373.2 cc
Max Torque	37 Nm @ 7000 rpm
Transmission	6-speed
Cooling System	Liquid Cooled
Front Suspension	WP APEX 43
Rear Suspension	WP APEX Monoshock
Rear Brake	230 mm disc, single-piston floating caliper
Fuel Tank Capacity	13.7 liters
Seat Height	824 mm
Bore x Stroke	89 mm x 60 mm
Compression Ratio	12.6:1
Frame	Steel Trellis Frame, Powder Coated
Engine Type	Single-cylinder, 4-stroke
Max Power	43.5 PS @ 9000 rpm
Fuel System	Electronic Fuel Injection
Front Brake	320 mm disc, 4-piston radial caliper
ABS	Dual Channel ABS
Dry Weight	172 kg
Front Tire	110/70 R17
Rear Tire	150/60 R17
Ground Clearance	158 mm
