KTM RC 390 User Manual

15 ELECTRICAL SYSTEM 137

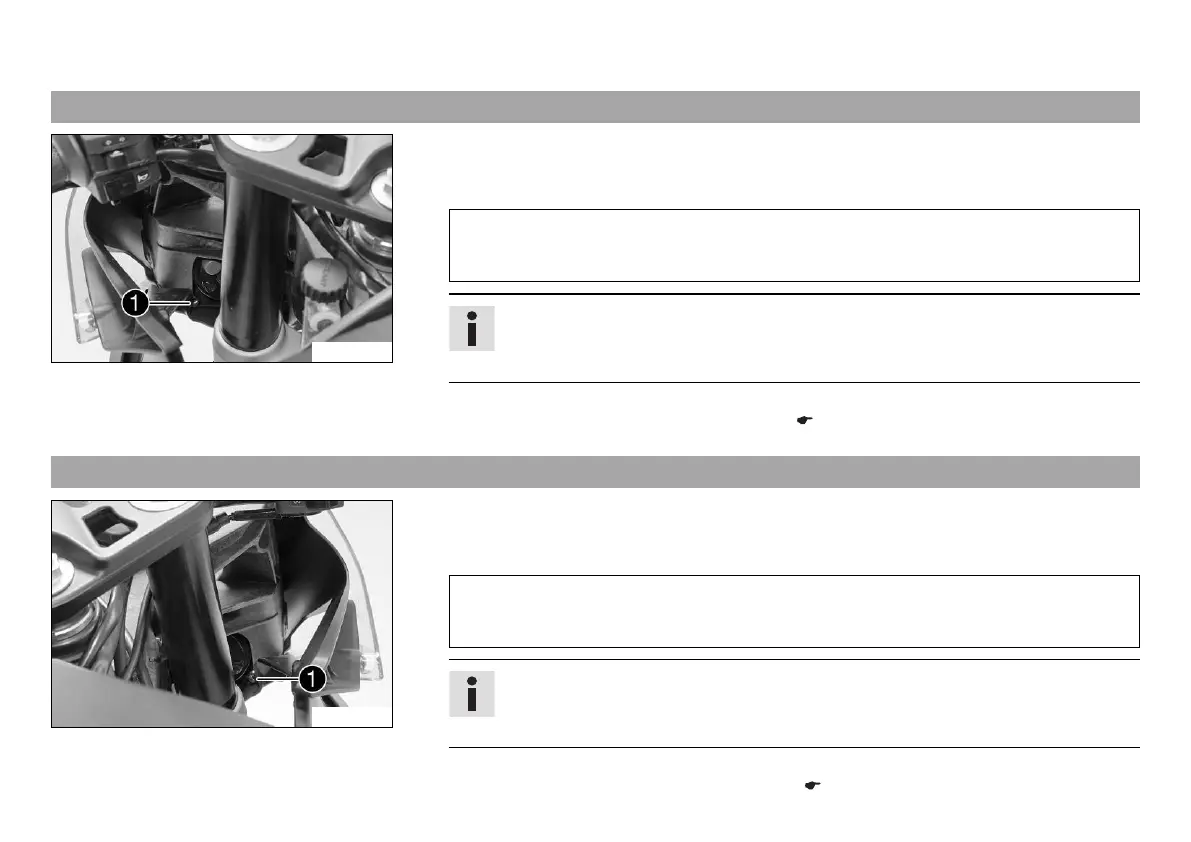

15.10 Adjusting the headlight range of the low beam
L02164-10
Main work
–
Adjust the beam range of the low beam by turning screw

.
Guideline
For a motorcycle with rider, and with luggage and a passenger if applicable, the
light/dark boundary must be exactly on the lower mark (applied in: Checking the low
beam headlight setting).
Info
Turn clockwise to increase the headlight range; turn counterclockwise to reduce
the headlight range.
Finishing work
– Check the low beam headlight adjustment. ( p. 135)
15.11 Adjusting the headlight range of the high beam
L02163-10
Main work
–
Adjust the beam distance of the high beam by turning screw

.
Guideline
For a motorcycle with rider, and with luggage and a passenger if applicable, the
light/dark boundary must be exactly on the lower mark (applied in: Checking the high
beam headlight setting).
Info
Turn clockwise to increase the headlight range; turn counterclockwise to reduce
the headlight range.
Finishing work
– Check the high beam headlight adjustment. ( p. 136)

KTM RC 390 Specifications

General

Displacement	373.2 cc
Max Torque	37 Nm @ 7000 rpm
Transmission	6-speed
Cooling System	Liquid Cooled
Front Suspension	WP APEX 43
Rear Suspension	WP APEX Monoshock
Rear Brake	230 mm disc, single-piston floating caliper
Fuel Tank Capacity	13.7 liters
Seat Height	824 mm
Bore x Stroke	89 mm x 60 mm
Compression Ratio	12.6:1
Frame	Steel Trellis Frame, Powder Coated
Engine Type	Single-cylinder, 4-stroke
Max Power	43.5 PS @ 9000 rpm
Fuel System	Electronic Fuel Injection
Front Brake	320 mm disc, 4-piston radial caliper
ABS	Dual Channel ABS
Dry Weight	172 kg
Front Tire	110/70 R17
Rear Tire	150/60 R17
Ground Clearance	158 mm
